Improved 300-365 Practice 2021

NEW QUESTION 1
Refer to Exhibit.

What two items need to be supported on the VoWLAN phones in order to take full advantage of this WLAN configuration? (Choose two.)

• A. APSD
• B. 802.11a
• C. 802.11e
• D. WMM
• E. 802.11r
• F. SIFS

Answer: CD

NEW QUESTION 2
A wireless engineer at a convention center has been asked to provision an SSID that can accommodate 4,000 users during a conference. Which interface group configuration should be used?

• A. One interface with /20 mask
• B. Two interfaces with /21 mask
• C. Four interfaces with /22 mask
• D. Eight interfaces with /23 mask

Answer: D

NEW QUESTION 3
When a Vocera badge performs a broadcast call in a properly configured VoWLAN using WLC v7.0, which two choices indicate how the QoS is marked? (Choose two.)

• A. Upstream marked as Best Effort.
• B. Upstream marked as ToS CS4.
• C. Upstream marked as DSCP EF.
• D. Downstream marked as DSCP EF.
• E. Downstream marked as Best Effort.
• F. Downstream marked as Silve

Answer: CE

NEW QUESTION 4
You configure a Cisco Aironet 600 Series OfficeExtend AP for a user who works remotely. Which option is configured on the Cisco WLC to allow the user to print to a printer on his home network?

• A. AP failover priority
• B. split tunneling
• C. FlexConnect
• D. SE-connect

Answer: C

NEW QUESTION 5
An engineer is attempting to send multicast data to all multicast routers in the network with ID 338789750.
Which IP address should be used?

• A. 224.0.0.1
• B. 224.0.0.2
• C. 224.0.0.4
• D. 224.0.0.3

Answer: B

NEW QUESTION 6
Which feature must be configured on Cisco WLC to prioritize multicast traffic over a wireless network?

• A. client link
• B. mDNS
• C. client band select
• D. media stream

Answer: B

NEW QUESTION 7
A downstream packet containing a DSCP value arrives at the WLC Ethernet interface from the wired source network. The WLC is configured for QoS WLAN 802.1p mapping. How does the WLC treat the CAPWAP QoS marking when leaving the controller interface for the respective AP and final wireless client destination?

• A. No outer CAPWAP or inner QoS tagging is applied.
• B. No outer CAPWAP QoS tag is applied, but the original DSCP is maintained inside CAPWAP.
• C. The outer CAPWAP CoS is marked and capped while the inner DSCP maintains the original marking.
• D. The outer CAPWAP DHCP is marked and capped without any inner DSCP value.

Answer: C

NEW QUESTION 8
A network engineer must ensure that corporate wireless users have a better experience than guest wireless users. Which two configurations fulfil requirement? (Choose two.)

• A. Override per-SSID bandwidth contracts on the corporate WLAN to reserve bandwidth.
• B. Modify the corporate WLAN to the Platinum QoS policy.
• C. Enable 802.1ptag on the Gold QoS pofccyto honor prioritized traffic.
• D. Adjust the guest WLAN radio policy to 80211 b/g only.
• E. Change the guest WLAN to the Bronze QoS polic

Answer: BE

NEW QUESTION 9
When CAPWAP protocol runs over IPv4, which UDP port numbers are used for control and data traffic,
respectively?

• A. control 5246, data – UDP-Lite(IP Protocol 136)
• B. control 5247, data – 5246
• C. control 5246, data – 5247
• D. control 5247, data – UDP-Lite(IP Protocol 136)

Answer: C

NEW QUESTION 10
How is password recovery performed on a Cisco Mobility Services Engine 3300 Series?

• A. Interrupt the boot sequence and modify the GRUB boot loader.
• B. Reboot using a CD that is imaged with an ISO bootable file to reimage Cisco MSE.
• C. Interrupt the boot sequence and modify the BIOS boot loader.
• D. Use the emergency TFTP bootable image.

Answer: A

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/wireless/mse/8-0/MSE_CMX/8_0_MSE_CAS/7_4_MSE_CAS_chapter_01101.html

NEW QUESTION 11
A network engineer is designing a high capacity WLAN for a conference are

• A. The enterprise is concerned about non-business traffic consuming excessive bandwidth and impacting performanc
• B. What can be used in the design to allow the controller to block or throttle applications?
• C. AVC
• D. CMX
• E. DSCP
• F. RXSOP

Answer: A

NEW QUESTION 12
A customer has "quiet" wireless clients that use static IP addresses. Which two WLAN configurations are required for these wireless clients to connect properly? (Choose two.)

• A. Disable DHCP address assignment required.
• B. Enable passive client.
• C. Disable allow AAA override.
• D. Enable static IP tunneling.
• E. Disable DHCP server overrid

Answer: AE

NEW QUESTION 13
An engineer has enabled FlexConnect AP Upgrade for a FlexConnect group, but did not manually select any master APs. Which AP receives the update directly from the controller when a FlexConnect Upgrade is initiated?

• A. one AP with the lowest MAC address in each subnet in the group
• B. one AP of each model with the lowest MAC address in the group
• C. one AP with the lowest MAC address in the group
• D. one AP with the highest MAC address in the group

Answer: C

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-3/config-guide/b_cg83/b_cg83_chapter_0110001.pdf

NEW QUESTION 14
A customer has implemented a N+1 high availability plan in a multistory building. All APs on odd numbered floors are set as primary to WLC-A and all APs on even numbered floors are set as primary to WLC-8. Which two problems are likely to arise from this design? (Choose two)

• A. inconsistent CleanAir data due to multiple WLCs
• B. floor-to-floor bleed-through that causes intercontroller roaming delays
• C. AVC inconsistency due to multiple mobility group members
• D. legacy device compatibility with multiple WLC configuration that causes disconnects
• E. unpredictable AP loading during a WLC failure

Answer: AC

NEW QUESTION 15
An engineer must reduce the amount of inter-controller roaming at a facility that has deployed N+1 high availability. Which strategy for performing this action is the best?

• A. Ensure all access points on the campus are configured with the same mobility group.
• B. Disable interface groups on the SSID.
• C. Ensure all access points in a geographic location are configured with the same primary WLC.
• D. Enable client load balancing on the SSI

Answer: C

NEW QUESTION 16

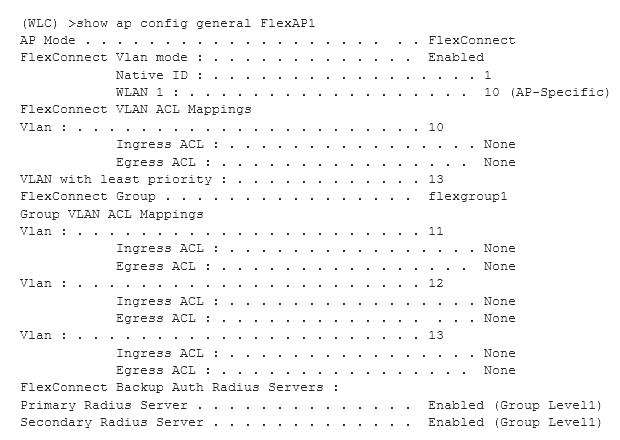

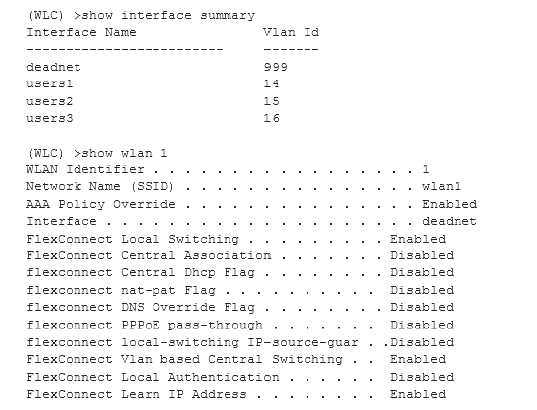

Refer to Exhibit.


A wireless client is connecting to FlexAPI which is currently working standalone mode. The AAA authentication process is returning the following AVPs:
Tunnel-Private-Group-ld(81): 15 Tunnel-Medium-Type(65):IEEE-802(6) Tunnel-Type(64): VLAN(13) Which three behaviors will the client experience? (Choose three.)

• A. While the AP is in standalone mode, the client will be placed in VLAN 15.
• B. While the AP is in standalone mode, the client will be placed in VLAN 10.
• C. When the AP transitions to connected mode, the client will be de-authenticated.
• D. While the AP is in standalone mode, the client will be placed in VLAN 13.
• E. When the AP is in connected mode, the client will be placed in VLAN 13.
• F. When the AP transitions to connected mode the client will remain associated.
• G. When the AP is in connected mode, the client will be placed in VLAN 15.
• H. When the AP is in connected mode, the client will be placed in VLAN 10.

Answer: ADE

NEW QUESTION 17
A network engineer observes a spike in controller CPU overhead and overall network utilization after enabling multicast on a controller with 500 APs. What feature is necessary to correct the issue?

• A. controller IGMP snooping
• B. unicast AP Multicast Mode
• C. broadcast forwarding
• D. multicast AP Multicast Mode

Answer: B

NEW QUESTION 18
In a Cisco controller-based wireless network that supports workgroup bridges, what is the maximum amount of wired client connections supported on a workgroup bridge?

• A. 25
• B. 20
• C. 35
• D. 30

Answer: B

Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/wireless/controller/7-4/configuration/guides/consolidated/ b_cg74_CONSOLIDATED/b_cg74_CONSOLIDATED_chapter_01110001.html

NEW QUESTION 19
Refer to the exhibit.
During deployment, a network engineer notices that voice traffic is not being tagged correctly as it traverses
the network. Which COS to DSCP map must be modified to ensure that voice traffic is treated properly?

• A. COS of 5 to DSCP 46
• B. COS of 7 to DSCP 48
• C. COS of 6 to DSCP 46
• D. COS of 3 to DSCP of 26

Answer: A

NEW QUESTION 20
An engineer is integrating a new Cisco Mobility Services Engine with Cisco Prime Infrastructure to use Cisco CMX Location Analytics. Which action is required?

• A. Enable Context Aware and CMX Browser Engage
• B. Enable tracking parameters in Cisco Mobility Service Engine
• C. Set history parameters in Cisco Mobility Service Engine
• D. Install Cisco Prime infrastructure with floor maps

Answer: B

NEW QUESTION 21
You have VoWiFi running on FlexConnect AP with centrally-switched SSID. Which configuration must be performed to preserve marking for central-switching SSID?

• A. Trust DSCP
• B. This will not wor
• C. The WLAN should be locally switched and we need to trust CoS.
• D. Trust CoS
• E. No need to trust anythin
• F. It should work fine because the WLAN is centrally switche

Answer: A

NEW QUESTION 22

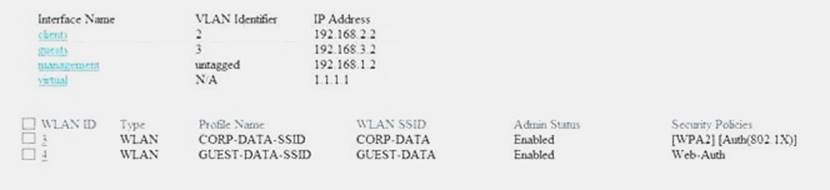

Refer to the exhibit.

A wireless tech must add an AP group mapping with the interface on VLAN 3 and the GUEST-DATASSID to the existing AP group “lobbyAPs”. Which command makes this change?

• A. config wlan apgroup interface-mapping add lobbyAPs 3 GUEST-DATA-SSID
• B. config wlan apgroup interface-mapping add lobbyAPs 4 3
• C. config wlan apgroup interface-mapping add lobbyAPs 4 guests
• D. config wlan apgroup interface-mapping add lobbyAPs 3 GUEST-DATA

Answer: C

Explanation:
Reference:
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-vlan/71477-ap-groupvlanswlc. html
