NEW QUESTION 1

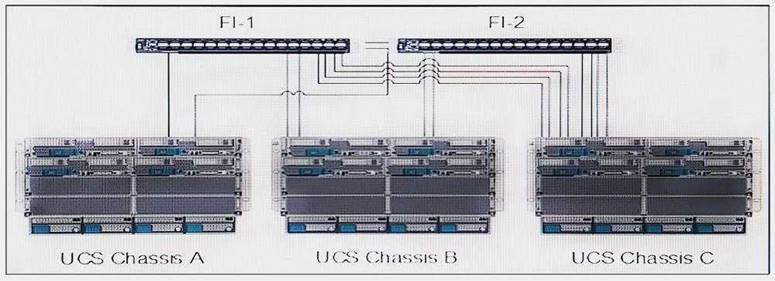

Refer to the exhibit.

A four-link chassis discovery policy is configured in Cisco UCS Manager. Which
component s are discovered when the chassis components connect to the fabric interconnects?

• A. UCS Chassis B and UCS Chassis C
• B. UCS Chassis C
• C. UCS Chassis B
• D. UCS Chassis A, UCS Chassis B, and UCS Chassis C

Answer: B

NEW QUESTION 2
Which two options are control plan protocols? (Choose two)

• A. BGP
• B. ARP
• C. NAT
• D. SMTP
• E. CoPP

Answer: AB

Explanation:
The control plane: The control plane is the brain of the router. It consists of dynamic IP routing protocols (that is OSPF, IS-IS, BGP, and so on), the RIB, routing updates, in addition to other protocols such as PIM, IGMP, ICMP, ARP, BFD, LACP, and so on. In short, the control plane is responsible for maintaining sessions and exchanging protocol information with other router or network devices.
Reference: http://www.ciscopress.com/articles/article.asp?p=2272154&seqNum=3

NEW QUESTION 3
Which two chassis discovery policy settings allow far a UCS chassis to be connected to a pair of Fabric
Interconnect using only two physical connections' (Choose two)

• A. 4-link
• B. 2-link
• C. 8-link
• D. 1-link
• E. Platform-max

Answer: BD

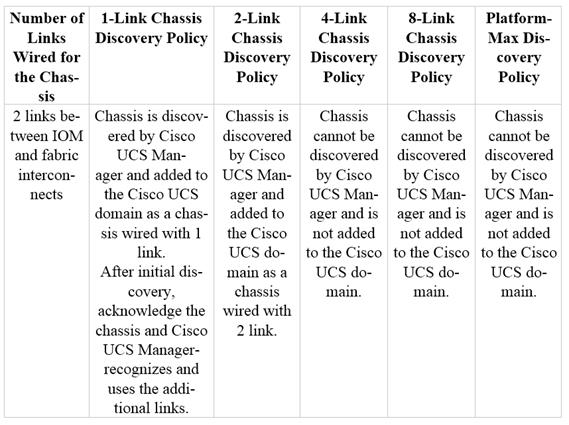

Explanation:

Reference: http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/b_UCSM_GUI_Configuration_Guide_2_0_chapter_0110 0.html

NEW QUESTION 4
In a virtualized network, what are two functionalities of the Cisco Virtual Ethernet Module? (Choose
two.)

• A. provides a CLI for the Cisco Nexus 1000V Series switch
• B. controls multiple switches as a single network device
• C. replaces VMware virtual switches
• D. provides each virtual machine with dedicated switch ports
• E. provides the network control plane

Answer: CE

NEW QUESTION 5
Which option describes Cisco's virtual device context feature?

• A. logical virtualization of a single physical switch
• B. logical witches aggregated into a single physical switch
• C. logical switches aggregated into multiple physical switches
• D. multiple physical switches partitioned to a single virtual switch

Answer: A

Explanation:
Cisco NX-OS introduces support for virtual device contexts (VDCs), which allows the switches to be virtualized at the device level. Each configured VDC presents itself as a unique device to connected users within the framework of that physical switch. The VDC runs as a separate logical entity within the switch, maintaining its own unique set of running software processes, having its own configuration, and being managed by a separate administrator.
Reference: http://www.cisco.com/c/en/us/products/collateral/switches/nexus-7000-10-slot-switch/White_Paper_Tech_Overview_Virtual_Device_Contexts.html

NEW QUESTION 6
What native Fibre Channel technology facilitates connecting multiple Fibre Channel devices behind a
single FC address?

• A. N-Port Virtualization
• B. N-Port Identification Virtualization
• C. Fibre Channel Arbitrary Loop
• D. Fiber Channel over Ethernet

Answer: C

NEW QUESTION 7
An engineer the UCS Fabric interconnects for network connectivity to the data center LAN and SAN.
Which two ports types need to be configured to allow traffic to Bow properly? (Choose two)

• A. Ethernet uplink
• B. server uplink
• C. appliance
• D. Fibre Channel uplink
• E. Fibre Channel storage

Answer: AD

Explanation:
Cisco UCS Fabric Interconnects provide these port types:
Server Ports—Server Ports handle data traffic between the Fabric Interconnect and the adapter cards on the servers.
You can only configure Server Ports on the fixed port module. Expansion modules do not support Server Ports.
Uplink Ethernet Ports—Uplink Ethernet Ports connect to external LAN Switches. Network bound Ethernet traffic is pinned to one of these ports.
You can configure Uplink Ethernet Ports on either the fixed module or an expansion module.
Uplink Fibre Channel Ports—Uplink Fibre Channel Ports connect to external SAN Switches. Network bound Fibre Channel traffic is pinned to one of these ports.
Reference: http://www.cisco.com/c/en/us/support/docs/servers-unified-computing/ucs-6120xp-20- port-fabric-interconnect/110267-ucs-uplink-ethernet-connection.html

NEW QUESTION 8
Which technology prevents the flooding of unknown unicast traffic across an IP link between two
data centers?

• A. OTV
• B. VPLS
• C. MPLS
• D. TRILL

Answer: A

NEW QUESTION 9
Which two protocols are encapsulated in FCoE? (Choose two.)

• A. iSCSI
• B. Fibre Channel
• C. CIFS
• D. DNSF
• E. SCSI

Answer: BE

NEW QUESTION 10

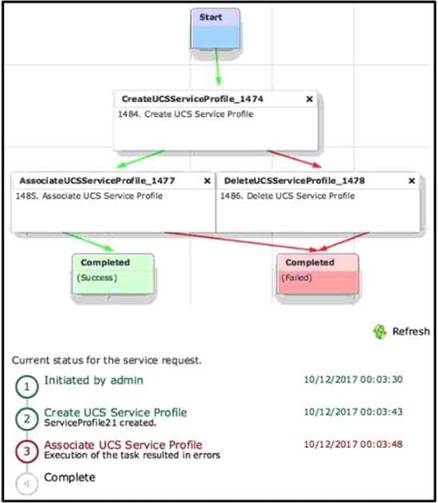

Refer to the exhibit.

Which description of the workflow is true?

• A. It attempts to associate the service profile to another blade
• B. It completes in a failed state
• C. It pauses while waiting for user input
• D. It deletes the service profile

Answer: A

NEW QUESTION 11
Which two benefits of a vPC are true? (Choose two)

• A. It simplifies Layer 3 routing configuration.
• B. it eliminates STP blocked .ports.
• C. It uses MSTP to eliminate Layer 2 loops.
• D. It uses IS-IS in the control plane.
• E. It allows active-active links.

Answer: BE

NEW QUESTION 12
Which statements are valid for a local SPAN configuration'? (Choose two.)

• A. Source and destination interface must be on the same host
• B. Source and destination interfaces can be on different hosts
• C. Destination vEthernet interface can be on a different VLAN than the source
• D. Destination interface can be a physical port
• E. Destination interface cannot be a physical port

Answer: AD

NEW QUESTION 13
Layer 3 networks can be logically separated by which technology?

• A. bridge domain
• B. VRF
• C. VLAN
• D. tenant

Answer: B

NEW QUESTION 14
What are two functions of a Cisco UCS Fabric Interconnect in a Cisco UCS domain? (Choose two.)

• A. management
• B. comprehensive network analysis
• C. network connectivity
• D. traffic load balancing
• E. core fibre channel switching platform

Answer: AC

NEW QUESTION 15
Which profile is defined by multiple tiers of applications and the policies that determine the communication between those applications?

• A. application consistency profile
• B. application tiering profile
• C. application network profile
• D. application performance profile

Answer: C

NEW QUESTION 16
Which description of the purpose of an API is true?

• A. provides a secure platform to authenticate internal users
• B. assists developers to understand the underlying code of an application
• C. exposes parts of an application to be consumed or interacted with by another application
• D. provides a software framework for developers to build applications

Answer: C

NEW QUESTION 17

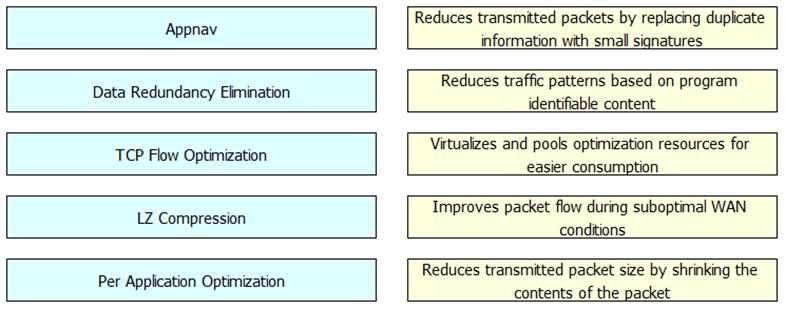

DRAG DROP
Drag the WAAS component feature on the left to the corresponding function on the right.

• A. Mastered
• B. Not Mastered

Answer: A

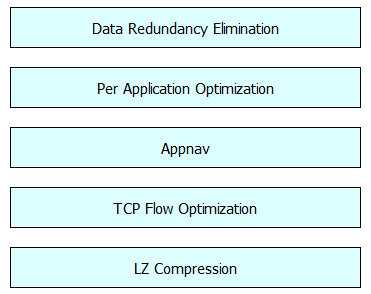

Explanation:

NEW QUESTION 18
Which component of Cisco UCS B-Series is also referred to as a FEX?

• A. UCS 5108
• B. UCS 2104XP
• C. UCS 6248UP
• D. UCS 6120
• E. UCS MK72-KR

Answer: B

NEW QUESTION 19

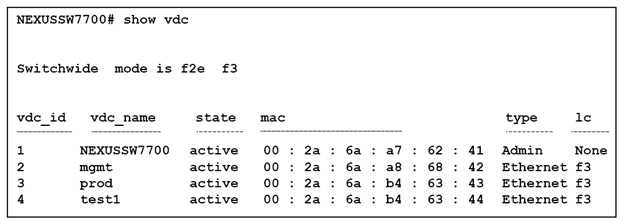

Refer to the exhibit.

Which statement is true based on the output from the show vdc command?

• A. The admin VDC is unconfigured.
• B. There are four VDCs that can forward Ethernet traffic.
• C. The user is in the admin VDC.
• D. Only the test1 VDC can forward traffic.

Answer: C

NEW QUESTION 20
Refer to the exhibit. Which statement is correct regarding this vPC environment?

• A. The vPC peer keep alive uses a non-VRF path.
• B. ip arp synchronize is automatically configured when a vPC domain is created.
• C. The rote priority uses its default value.
• D. The system priority has been configured to a lower number than its default value.

Answer: D

NEW QUESTION 21
A network engineer is configuring a pair of 6248 Fabric Interconnects, each with dual 10G uplinks to a parent switch. One design retirement is to ensure a specific server is able to use 10G of throughput to the LAN without contention from other servers within the 5108 chassis. Which technology will accomplish this?

• A. Port-Channels
• B. Unified Ports
• C. LAN Pin Groups
• D. System QoS Policy

Answer: C

NEW QUESTION 22
Which of the following SAN devices provides an IOA feature?

• A. Cisco MDS 9000 16-Port Storage Services Node
• B. Cisco MDS 9100 Series Multilayer Fabric Switches
• C. Cisco MDS 9200 Series Multiservice Switches
• D. Cisco MDS 9148 Multilayer Fabric Switch

Answer: A

NEW QUESTION 23
Which description of a contract is true?

• A. It allows or denies communication between EPGs.
• B. It defines communication by using subnets.
• C. It contains Layer 2, 3 and 4 policy rules.
• D. It contains a filter and an EPG.

Answer: A

NEW QUESTION 24
Which two parameters can you apply to a user role rule on a Cisco Nexus 7000 Series Switch? (Choose two.)

• A. command
• B. interface
• C. policy
• D. feature
• E. database

Answer: AD

NEW QUESTION 25

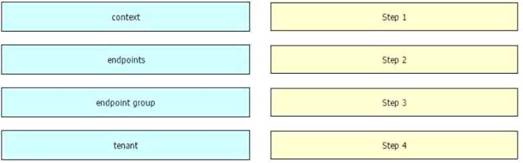

DRAG DROP
You must configure the logical constructs of a Cisco ACI policy model in the correct hierarchical order Drag and drop the constructs on the left to the correct order on the right

• A. Mastered
• B. Not Mastered

Answer: A

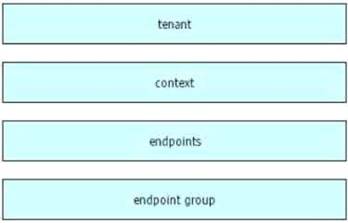

Explanation:

NEW QUESTION 26
What is the role of a Cisco APIC when configuring services for the Cisco ACl fabric?

• A. It communicates with load balancers without using a plug-in
• B. It builds a service graph by communicating with switches and routers.
• C. It connects physical appliances automatically to the correct EPG
• D. It provides a single point of provisioning that can accessed via a REST API

Answer: D

NEW QUESTION 27
Which description of the purpose of an ACI is true?

• A. exposes parts of an application to be consumed or interacted with by another application.
• B. provides a software framework for developers to build applications
• C. provides a secure platform to authenticate internal users
• D. assists developers to understand the underlying code of an application

Answer: A

NEW QUESTION 28
A network engineer is configuring a pair of 6248 Fabric Interconnects, each with dual 10G uplinks to
a parent switch. One design requirement is to ensure a specific server is able to use 10G of throughput to the LAN without contention from other servers within the 5108 chassis. Which technology will accomplish this?

• A. LAN Pin Groups
• B. Port-Channels
• C. System OoS Policy
• D. Unified Ports

Answer: A

NEW QUESTION 29
Which two services does a Cisco APIC provide during the startup process of the Cisco ACI fabric? (Choose two.)

• A. bootstrap configuration
• B. EIGRP
• C. CDP
• D. DNS
• E. DHCP

Answer: AE

NEW QUESTION 30
Policies that are applied by the APIC are typically based on which type of infra structure?

• A. application-centric
• B. performance-specific
• C. leaf-specific
• D. network-centric

Answer: A

Explanation:
The Cisco Application Policy Infrastructure Controller (APIC) is a key component of an Application
Centric Infrastructure (ACI), which delivers a distributed, scalable, multi-tenant infrastructure with external end-point connectivity controlled and grouped via application centric policies. The APIC is the key architectural component that is the unified point of automation, management, monitoring and programmability for the Application Centric Infrastructure. The APIC supports the deployment, management and monitoring of any application anywhere, with a unified operations model for physical and virtual components of the infrastructure.
Reference: https://developer.cisco.com/media/apicDcPythonAPI_v0.1/understanding.html
