NEW QUESTION 1
What occurs when the Cisco ACI fabric receives multi destination traffic?

• A. The traffic is forwarded as broadcast traffic
• B. The traffic is forwarded as multicast traffic
• C. The traffic is suppressed
• D. The traffic is forwarded as unicast traffic

Answer: B

Explanation:
http://www.cisco.com/c/en/us/
td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapt

NEW QUESTION 2
A unicast packet enters into the front panel port of a leaf switch. The leaf switch performs a forwarding lookup for the packet destination IP address and has a miss result Assuming default configuration, which statement about what happens next is true'?

• A. The packet is sent to the forwardin proxy in the spine switch
• B. The packet is dropped on the leaf switch
• C. The packet is sent to another leaf switch within the same bridge domain
• D. The packet is flooded across the entire fabric because it is an unknown unicast.

Answer: A

NEW QUESTION 3
Which type of connection is supported by Layer 3 in the Cisco ACI fabric?

• A. eBGP over OSPF
• B. eBGP over EIGRP
• C. eBGP over RIP
• D. iBGP over EIGRP

Answer: A

NEW QUESTION 4
Which management interface is selected by the Cisco APIC by default if an in band management interface and an out of-band management interface exist?

• A. In-band is preferred
• B. The first configured interface is selected
• C. The interface that has the highest priority is selected
• D. Out-of band is preferred

Answer: D

NEW QUESTION 5

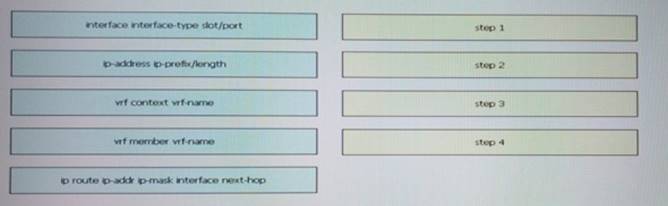

You need to create and configure a VRF for IP forwarding on a Cisco Nexus Series Switch running in NX-OS. Drag and drop the configuration steps from the left into the correct order on the right. Not all options are used.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 6
Which Cisco UCS backup type results in an XML file that includes all system and logical configuration settings?

• A. system configuration
• B. all configuration
• C. full state
• D. logical configuration

Answer: B

NEW QUESTION 7
When configuring port profiles on a Cisco Nexus 5000 Series switch, which two statements are true? (Choose two.)

• A. If a conflict occurs when a range of interfaces inherits a second port profile, the commands of the initial port profile override the commands of the second port profile.
• B. If a conflict occurs, commands that you enter the interface mod take precedence over profile commands.
• C. When an interface has a port profile applied to it, no other conflicting configuration can be applied to that interface.
• D. If a conflict occurs when a range of interface inherits a second port profile, the commands of the second ort profile override the commands of the initial port profile.
• E. If a conflict occurs, port profile takes precedence over commands that you enter under the interface mode.

Answer: BD

NEW QUESTION 8
Which statement about policy based redirect In an ACI fabric is true?

• A. It allows unmanaged nodes to be in separate VRFs.
• B. It allows traffic to be redirected based on an access list.
• C. It requires that service provisioning be enabled by the Layer 4 to Layer 7 device package .
• D. It allows the | rationing consumer and the provider endpoint groups to be in the same VRF.

Answer: D

NEW QUESTION 9
Which feature of a Cisco Nexus 1000V Servers Switch allows you to deploy traffic steering for a virtual infrastructure?

• A. SOT
• B. PVLAN
• C. ACL
• D. vPath

Answer: D

NEW QUESTION 10
Which statement about RBAC user roles on a Cisco Nexus switch is true?

• A. If a user belongs to two roles, a permit access in one role takes priority over a deny access in the other role
• B. The predefined roles can be changed by the network-admin
• C. If a user belongs to two roles, the user can execute only the commands that are permuted by both of the roles
• D. On a Cisco Nexus 7000 Series Switch, roles are shared between VOCs

Answer: A

NEW QUESTION 11
Which two options are purposes of a device package? (Choose two )

• A. to identify a set of network or service functions required by the application
• B. to provide a leaf and spine devices with operating systems and firmware
• C. to provide a Cisco APIC with information about device specifics
• D. to render the services required by a graph
• E. to manage a class of service devices

Answer: CE

NEW QUESTION 12

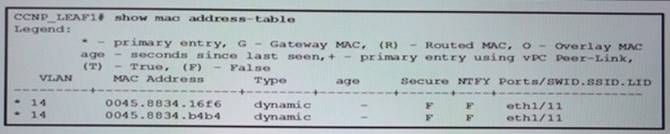

Refer to the exhibit

You are verifying connectivity within a leaf device You attempt to connect to a destination server in VLAN 17, and you then run the show mac address-table command as shown Why does the show mac address-table output show a different VLAN?

• A. The wrong AEP is attached to the leaf ports
• B. The VLAN configuration on the leaf switch is incorrect
• C. The VLAN ID shown is used for identification and internal mapping within the ACI leaf
• D. When traffic appears, the Cisco ACI marks ports with VLAN 17

Answer: A

NEW QUESTION 13

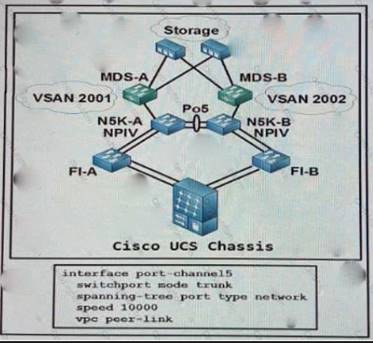

Refer to the Exhibits.

The blade server has two HBAs. How many WWPN targets on VSAN 2001 are accessible to the blade server?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: D

NEW QUESTION 14

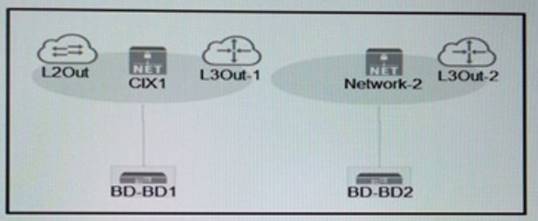

Refer to the exhibit:

For which option is the L3OUT-1 connection used?

• A. bridge domain BD2
• B. private network CIX1
• C. private network Network-2
• D. bridge domain BD1

Answer: A

NEW QUESTION 15
Which Cisco technology addresses management and performance concerns in a data center by unifying physical and virtual switch management?

• A. VSO
• B. SVM
• C. VM-FEX
• D. AVS

Answer: C

NEW QUESTION 16
You have a Cisco Nexus Series Switch. Which two descriptions of how incoming packets are handled by the VRF instance are true? (Choose two )

• A. The route policy defines which VRF that Cisco NX-OS uses for incoming packets
• B. By default, Cisco NX-OS uses the VRF of the outgoing interface
• C. The policy n the management VRF defines which VRF that Cisco NX-OS uses for incoming packets D By defaul
• D. Cisco NX-OS uses the VRF of the incoming interface
• E. The policy in the default VRF defines which VRF that Cisco NX-OS uses for incoming packets

Answer: BD

NEW QUESTION 17

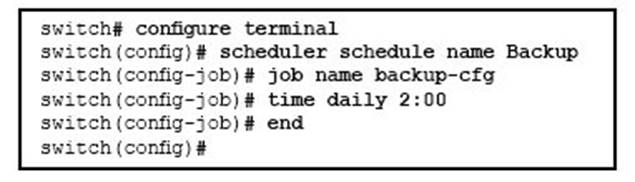

Refer to the exhibit:

Which option describes the results of running the configuration on a Cisco Nexus 9000 Series Switch?

• A. A schedule'' job named Backup backs up the configuration to a file named backup-cfg.
• B. A scheduler job named backup-cfg runs daily at 2:00.
• C. A scheduler job named Backup runs twice daily
• D. A scheduler job named Backup runs daily at 2 00 and save the configuration to a file named backup-cfg.

Answer: B

NEW QUESTION 18
Which feature allows firewall ACLs to be configure automatically when new endpoint are attached to an
EPG?

• A. ARP network gleaning
• B. network stitching
• C. dynamic endpoint attach
• D. hardware proxy

Answer: C

NEW QUESTION 19
You deploy AVS for Virtual Manager integration and you add a host that has five VMNICs. You must use VXLAN to maximize the load balancing of the traffic inside the fabric. How many VMKNICs must you add?

• A. 2
• B. 3
• C. 4
• D. 8

Answer: C

NEW QUESTION 20
At the bash prompt, you run the bash$ source environment-setup-x86_64-wrs-linux command. Which purpose of running this command is true?

• A. to set up the source for the plugins added to the shell environment
• B. to move the build application to the target switch
• C. to prepare the environment for the SDK installation
• D. to add SDK-specific paths to the shell environment during environment initialization

Answer: D

NEW QUESTION 21
You must apply a contract to all of the EPGs in a tenant. The solution must ensure that the contract is also applied to any new EPGs that are added to the tenant. Which option must you uses?

• A. the QUI
• B. the vzAny managed object
• C. the REST API
• D. a Python script

Answer: B

NEW QUESTION 22
Which situation causes POAP to auto provision a switch?

• A. The startup configuration is corrupt.
• B. The switch is powered on after being offline for more than 48 hours.
• C. The startup configuration is missing.The startup configuration is corrupt, and you manually rebooted the switch

Answer: C

NEW QUESTION 23
You are configuring RBAC on a Cisco UCS system. What happens when you assign multiple locales to a user?

• A. Access is denied to all organizations.
• B. Access is granted to only the last organization that is specified in the locales.
• C. Access is granted to only the first organization that is specified in the locales.
• D. Access is granted to all organizations that are specified in the locales.

Answer: D

NEW QUESTION 24
When configuring the SVS Domain in Layer 2 mode in he Cisco Nexus 1000v, which three parameter are required? (Choose three)

• A. port profile
• B. control VLAN
• C. domain ID
• D. attribute
• E. packet VLAN
• F. port group

Answer: BCE
