Cisco 400-051 Class 2021

NEW QUESTION 1

An engineer wants to configure a Cisco IOS router to allow for up to four simultaneous conferences in CME mode. Which configuration meets the requirement?

• A. dspfram profile 1 conference Codec G711ulawMaximum sessions 4Maximum conference- participants 8Telephony-service Sdspfarm units 4 Sdspfarm tag 4 hwcfb Conference hardware
• B. dspfram profile 1 conference Codec G711ulawMaximum conference-participants 8 Telephony- serviceSdspfarm units 4 Sdspfarm tag 4 hwcfb Conference hardwareMax-conference-participants 8
• C. dspfram profile 1 conference Codec G711ulawMaximum sessions 4Maximum conference- participants 8 Telephony-serviceSdspfarm units 1 Sdspfarm tag 1 hwcfb Conference hardware Max- conferences 2
• D. dspfram profile 1 conference Codec G711ulawMaximum sessions 4Maximum conference- participants 8 Telephony-serviceSdspfarm units 1 Sdspfarm tag 1 hwcfb Conference hardware Max- conferences 4

Answer: D

Explanation:
dspfram profile 1 conference--> Configure dspfarm conference parameters
Codec G711ulaw --> Configure codecs that are allowed to participate – by default all codecs are supported Maximum sessions 4 --> Configure maximum number of conferences,here 4
Maximum conference- participants 8 --> Configure max conference participants per conference, here 8 Telephony-service
Sdspfarm units 1 --> Configure maximum number of profiles Sdspfarm tag 1 hwcfb --> Associate profile name and enable Conference hardware --> Enable CME hardware conference
Max- conferences 4 --> maximum number of three-party conferences that are supported simultaneously by the Cisco CallManager Express (Cisco CME) router

NEW QUESTION 2

Which two parameters are requested in an Audit Connection message from a Cisco Unified CM to endpoint on a MGCP gateway? (Choose two)

• A. Call ID
• B. Capabilities
• C. Bearer Information
• D. Connection Parameters
• E. Connection Mode
• F. Connection ID

Answer: CF

NEW QUESTION 3

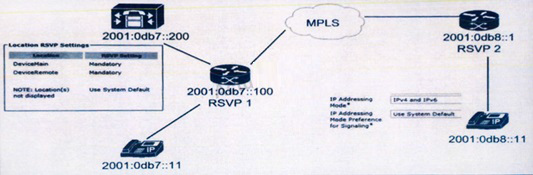

Refer to the exhibit.

A collaboration engineer is troubleshooting a cluster that has been configured to use RSVP. The calls are being rejected and the caller receives a busy tone. What is the root cause of this problem?

• A. The RSVP Agents are only using an Ipv6 address.
• B. IP Addressing mode preference for signaling is set to use System Default.
• C. RSVP relationship between Main and Remote is set to Mandatory
• D. IP Addressing Mode is set to use Ipv4 and Ipv6

Answer: A

NEW QUESTION 4

Which two statements describe specs-based virtualization support model for third party servers running Cisco UC applicationns?(Choose two)

• A. VMware vSphere is mandatory
• B. Generic server hardware must be validated by Cisco
• C. VMware vCenter is mandatory
• D. Cisco TAC supports the server when all spec-based rules are followed
• E. Only direct-attached storage is allowed
• F. CIsco UC virtualization Foundation software is mandatory

Answer: AC

NEW QUESTION 5

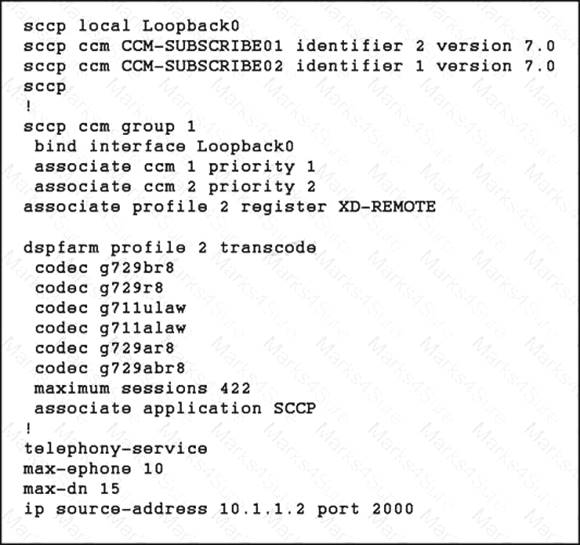

Refer to the Exhibit.

An Engineer is troubleshooting transcoding issue in a remote branch office. After a WAN outage all ip phones can register to a CME in SRST 2900 ISR Router.
However, the users reported that calls disconnect after pressing the answer softkey.
Which three configurations are necessary for successful media resource failover? (Choose three.)

• A. SCCP CCM GrouplAssociate CCM 3 priority 1
• B. SCCP SSM 10.1.1.2 identifier 3 version 7.0
• C. Telephony-serviceSDSpfarm units 1SDSpfarm tag 1 XD-remote
• D. Seep ccm 10.1.1.2 identifier 1 version 7.0
• E. Associated profile 3 register XD-remote2
• F. Seep ccm group 1Associate ccm 3 priority 3

Answer: BCF

NEW QUESTION 6

A collaboration engineer is troubleshooting a delay in call completion on a SIP Cisco Unified Border Element gateway. The gateway is set up for dual stack IP with DNS as the dial peer target. In DNA, AAAA and A records are configured for the target. The engineer determines that IPv4 calls should remain IPv4, when possible, to temporary resolve the issue. The company is testing some IPv6 applications so the engineer cannot disable IPv6 altogether. Which configuration can the engineer apply to the Cisco Unified Border Element to accomplish this temporary fix?

• A. sip-uaProtocol mode ipv4
• B. voice service voip SipNo anat
• C. voice service voipNo allow-connections ipv4 to ipv6
• D. sip-uaProtocol mode dual-stack preference ipv4
• E. voice service voip SipPreference ipv4

Answer: D

NEW QUESTION 7

A service provider wants to use a controller to automate the provisioning of service function chaining. Which two overlay technologies can be used with EVPN MP- BGP to create the service chains in the data centre? (Choose two.)

• A. VXLAN
• B. MPLSoGRE
• C. Provider Backbone Bridging EVPN
• D. 802.1Q
• E. MPLS L2VPN

Answer: AC

NEW QUESTION 8

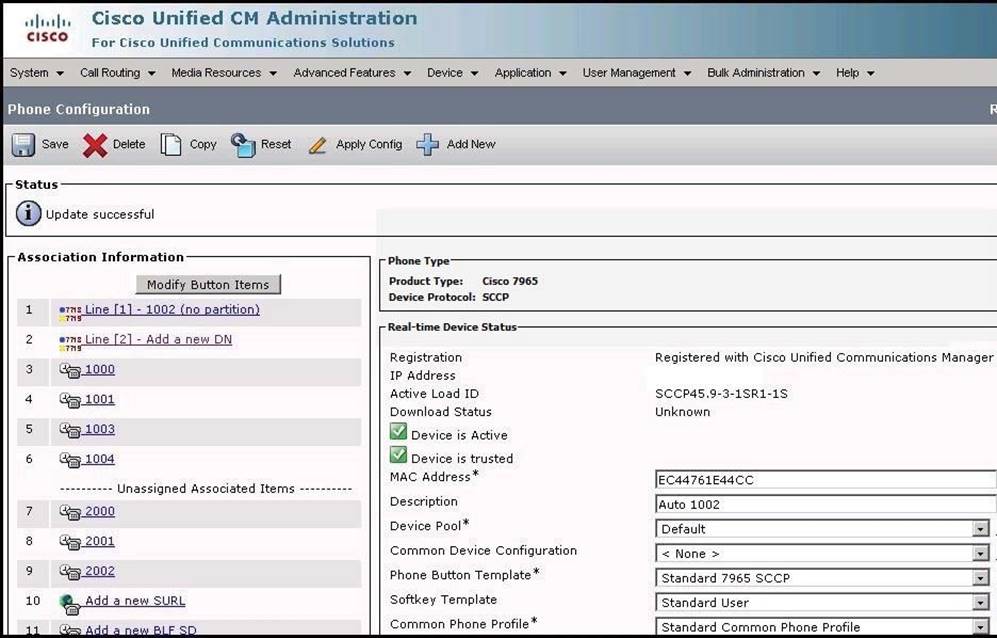

Refer to Exhibit:

Assume there are no classes of service restrictions and all numbers shown are reachable from this Cisco Unified IP 7965 Phone. Which statement about the dialing key strokes that allow the owner of this phone to reach directory number 2000 is true?

• A. Press the last button on the right hand side of the phone screen.
• B. There is no way to speed dial to directory number 2000 because the speed dial entry is not assigned.
• C. Press 7 on the phone keypad, followed by the Dial soft key.
• D. Press 6 on the phone keypad, followed by the Dial soft key.
• E. Press 5 on the phone keypad, followed by the AbbrDial soft key.

Answer: E

Explanation:
Configure these settings for the speed-dial numbers that you access with abbreviated dialing. When the user configures up to 99 speed-dial entries, part of the speed-dial entries can get assigned to the speed-dial buttons on the IP phone; the remaining speed-dial entries get used for abbreviated dialing. When a user starts dialing digits, the AbbrDial softkey displays on the phone, and the user can access any speed-dial entry by entering the appropriate index (code) for abbreviated dialing.
Configuration for Dialing 5 on the phone keypad, followed by the AbbrDial softkey.

and it showing on the phone page as

Implemented and tested

NEW QUESTION 9

A queued call has reached the maximum wait time configured for a Cisco Unified Communications Manager native call queue.
Which statement about what happens to this queued call is true?

• A. Calls are handled according to the Forward Hunt No Answer settings on the Hunt Pilot configuration page.
• B. Calls are handled according to the When Maximum Wait Time Is Met settings on the Hunt Pilot Configuration page.
• C. Calls are handled according to the When Maximum Wait Time Is Met settings in Cisco Unified Communications Manager Service Parameters.
• D. Calls are handled according to the Not Available Hunt Option settings on the Line Group Configuration page.
• E. Calls are handled according to the When Queue Is Full settings on the Hunt Pilot Configuration page.

Answer: B

Explanation:
There are three main scenarios where alternate numbers are used:
When queue is full
When maximum wait time is met
When no hunt members are logged in or registered
When queue is full
Call Queuing allows up to 100 callers to be queued per hunt pilot (the maximum number of callers allowed in queue on a hunt pilot page). Once this limit for new callers been reached on a particular hunt pilot, subsequent calls can be routed to an alternate number. This alternate number can be configured through the Hunt Pilot configuration page (through the “Destination When Queue is Full” settings).
When maximum wait time is met
Each caller can be queued for up to 3600 seconds per hunt pilot (the maximum wait time in queue). Once this limit is reached, that caller is routed to an alternate number. This alternate number can be configured through the Hunt Pilot configuration page (through the “Maximum wait time in queue” settings).
When no hunt members are logged in or registered
In a scenario where none of the members of the hunt pilot are available or registered at the time of the call, hunt pilot configuration provides an alternate number field (through the “When no hunt members are logged in or registered” settings) where calls can be routed. For Call Queuing, a hunt pilot member is considered available if that member has both deactivated do not disturb (DND) and logged into the hunt group. In all other cases, the line member is considered unavailable or logged off.
Reference:
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/9_0_1/ccmfeat/CUCM_BK_CEF0C471_00

NEW QUESTION 10

Which three statements about configuring partitioned intradomain federation to Lync are true? (Choose three.)

• A. Intradomain federation to Lync is only possible using SIP.
• B. IM&P and Lync should federate to any required remote domains.
• C. You must update the URIs of any users migrated from Lync to IM&P to match the Cisco Unified Presence Server SIP URI format.
• D. A static route must be added to point the local presence domain to the Lync server.
• E. Microsoft RCC must be enabled.
• F. The Enable use of Email Address when Federating option can be turned on if SIP URIs are different between IM&P and Lync.

Answer: ACD

Explanation:
Please refer to the link for more information: http://www.cisco
.com/c/en/us/td/docs/voice_ip_comm/cups/8_6/english/integration_notes/Federation/Intradomain_Federation/Pa

NEW QUESTION 11

ACisco Unified Contact Centre Express Manager wants to add database integration to self - service interactive voice response application. Which four types of licensing and database servers support this
requirement? (Choose four)

• A. Oracle Database Service
• B. UCCX Standard License
• C. UCCX Enhanced License
• D. Microsoft SQL Server
• E. UCCX Premium License
• F. SAP SQL Server
• G. Sybase Adaptive
• H. Postgress SQL Server

Answer: ADEG

NEW QUESTION 12

Which codec complexity mode, when deployed on Cisco IOS routers with DSPs using the C5510 chipset,
supports the most G.711 calls per DSP?

• A. Low
• B. Medium
• C. High
• D. Secure
• E. Flex

Answer: E

Explanation:
The flex parameter allows the complexity to automatically adjust to either medium or high complexity depending on the needs of a call. For example, if a call uses the G.711 codec, the C5510 chipset automatically adjusts to the medium-complexity mode. However, if the call uses G.729, the C5510 chipset uses the high complexity mode

NEW QUESTION 13

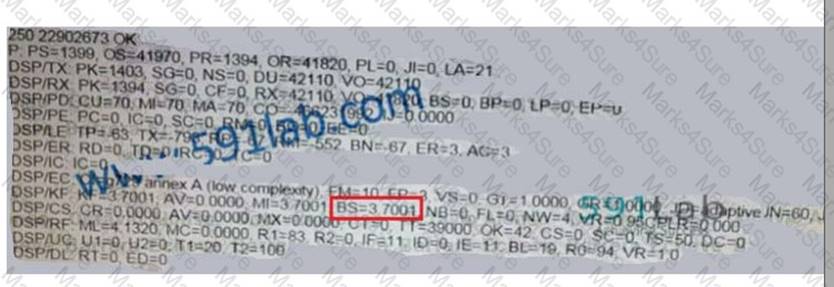

Which option is the MOS value in the Cisco IOS snippet?

• A. 1.0000
• B. 0.0000
• C. 4.1320
• D. 3
• E. 3.7001

Answer: E

NEW QUESTION 14

What is the maximum one-way delay, in milliseconds, between any two Cisco Unified Communications Manager servers in a non-Session Management Edition cluster over an IP WAN?

• A. 20
• B. 40
• C. 80
• D. 160
• E. 250

Answer: B

Explanation:
The maximum one-way delay between any two Unified CM servers should not exceed 40 msec, or 80 msec round-trip time. Propagation delay between two sites introduces 6 microseconds per kilometer without any other network delays being considered. This equates to a theoretical maximum distance of approximately 3000 km for 20 ms delay or approximately 1860 miles. These distances are provided only as relative guidelines and in reality will be shorter due to other delay incurred within the network.
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/7x/uc7_0/models.html

NEW QUESTION 15

Multiple Jabber for Windows users are having problems logging into the voicemail server. The Cisco Unity Connection administrator has reset the password and emailed them the new credentials, as well as the instructions about how to reset them in Jabber. The users cannot see the Phone Accounts tab under Jabber settings to complete the instructions. Which two steps resolve this issue? (Choose two.)

• A. In the Cisco Unified CM Jabber Service Profile, change the Credentials source for voicemail service to "not set".
• B. In Cisco Unified CM, create a MailStore service and assign it to the Jabber Service Profile as Primary.
• C. In the IM&P server CCMCIP Profile, uncheck the "Make this the default CCMCIP Profile for the system".
• D. In the IM&P server Enterprise Parameters Configuration, enable the Phone Personalization parameter.
• E. In the Cisco Unified CM Jabber Service Profile, uncheck "Make this the default service profile for the system".

Answer: AB

NEW QUESTION 16

When using LDAP synchronization to automatically create and synchronize Cisco Unified Communication Manager end users, which two LDAP attributes can be synchronized to directory URI? (choose two)

• A. msRTCSIPprimaryuseraddress
• B. mail
• C. msRTCIPuseraddress
• D. email
• E. emailaddress

Answer: AB

NEW QUESTION 17

Which parameter in an RQNT message is used by a Cisco Unified CM to request a Cisco IOS MGCP gateway to report an on-hook event on an analog endpoint?

• A. Detect Events
• B. Connection Mode
• C. Requested Events
• D. Event States
• E. Observed Events

Answer: C

NEW QUESTION 18

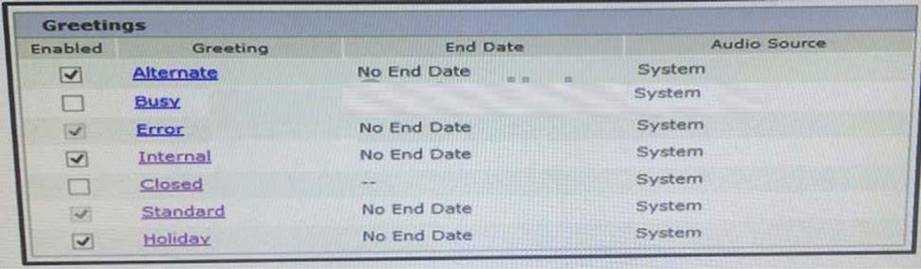

Refer to the exhibit.

A voicemail administrator was asked to create a call handler for the sales department with the following requirements,
- No end date for any of the configured greetings
- Play a specific greeting on business-approved days off
- Play a specific greeting when a sales agent calls the call handler number
- After creating the call handler and making some test calls only the default system greeting is heard Which four configuration changes are needed to company with this business request? (Choose Four)

• A. Disable the Alternate Greeting under Call Handler Greetings
• B. Create a new closed schedule and assign it to the sales Call Handler
• C. Record a new Greeting and assign it to the Alternate Greeting
• D. Record a new Greeting and assign it to the Holiday Greeting
• E. Record a new Greeting and assign it to the Internal Greeting
• F. Create a new holiday schedule to be used by the Holiday Greeting
• G. Disable the Internal Greeting under Call Handler Greeting
• H. Enable the Closed Greeting under Call Handler Greetings

Answer: ADFG

NEW QUESTION 19

An engineer received this requirement from a service provider:
Diversion header should match the network DID "123456@company.com" for Call Forward and transfer scenarios back to PSTN.
Which SIP profile configuration satisfies this request?

• A. voice class sip-profiles 200request INVITE sip-header Diversion modify "sip:(.*>)" "123456@company.com>" request REINVITE sip-header Diversion modify "sip:(.*>)" "123456@company.com>"
• B. voice class sip-profiles 200request INVITE sdp-header Diversion modify "sip:(.*>)" "123456@company.com>" request REINVITE sdp-header Diversion modify "sip:(.*>)" "123456@company.com>"
• C. voice class sip-profiles 200response 200 sdp-header Diversion modify "sip:(.*>)" "123456@company.com>"
• D. voice class sip-profiles 200response 200 sip-header Diversion modify "sip:(.*>)" "123456@company.com>"

Answer: A

NEW QUESTION 20

Which TFTP server address selection option has the highest precedence on Cisco SCCP IP phones using firmware release 8.0(4) or later?

• A. a manually configured alternate TFTP option on the phone
• B. the first Option 150 IP address received from the DHCP server
• C. the first Option 66 dotted decimal IP address received from the DHCP server
• D. the first IPv6 TFTP Server address received from the DHCP server
• E. the value of next-server IP address in the boot-up process

Answer: A

NEW QUESTION 21

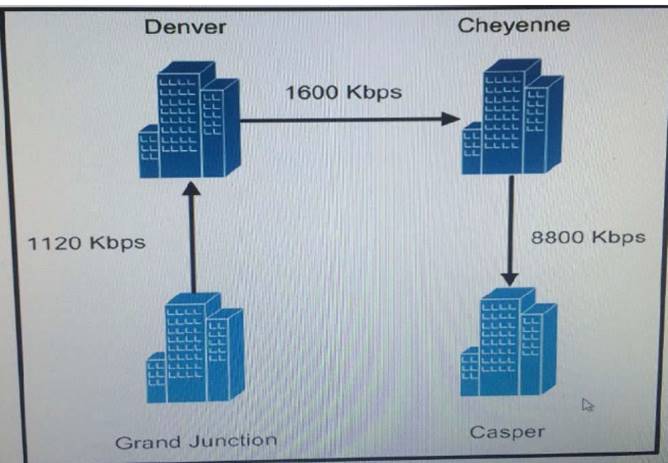

Refer to the exhibit.

A collaboration engineer configures Cisco Unified CM location using G.711 and iLBC for each site. The bandwidth for each link is shown. Which two options represent the maximum concurrent number of calls supported from Grand Junction to Casper for each Codec? (Choose two)

• A. 20 G.711 calls
• B. 18 G.711 calls
• C. 36 iLBC calls
• D. 42 iLBC calls
• E. 11 G.711 calls
• F. 51 iLBC calls

Answer: CE

NEW QUESTION 22

ACisco Unified CM user is set up with one remote destination profile that has two remote destination numbers.
The first remote destination number is the user's mobile phone in country A and the second is a mobile phone located in country B All outbound calls are centralized from the gateways at country A. The user reports that inbound calls are property routed to the mobile phone as long as the user is in country A, but inbound calls are not routed successfully to the user's second remote destination number while the user is in country B . What two actions are required for calls to be successfully routed to country B? (Choose two.)?

• A. The rerouting calling search space assigned to the user's remote destination profile must have access to international calls.
• B. the Enable Mobile Connect option must be selected under the user's second remote destination number.
• C. the Enable Mobile Voice Access option must be selected under the end user page.
• D. The value of Remote Destination Limit should be changed to 2 instead of the default value of 4, under the end user page.
• E. The value of Maximum Wait Time for Desk Pickup should be changed to 20000 instead of the default of 10000, under the end user page.

Answer: AB

NEW QUESTION 23

A SIP carried delivers DIDs to a Cisco Unified Border Element in the form of +155567810XX, where the last two digits could be anything from 00 to 99. To match the internal dial plan, that number must be changed to 6785XXX, where the last two digits should be retained. Which two translation profiles create the required outcome? (Choose two)

• A. rule 1 /555(.*).*(.*)/ /1502/
• B. rule 1 /+ 1555(…).(…)$/ /152/
• C. rule 1 /^+ 1555(678)10(..)$/ /1502/
• D. rule 1 /^15+678(… .)/6781/
• E. rule 1 /.15+678?10?(..)/ /678501/

Answer: CE

NEW QUESTION 24

How many music on hold servers are required in a trunk-only megacluster of Cisco Unified Communications Manager Session Management Edition?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: A

Explanation:
When considering a megacluster deployment, the primary areas impacting capacity are as follows:
•The megacluster may contain a total of 21 servers consisting of 16 subscribers, 2 TFTP servers, 2 music on hold (MoH) servers (0 required), and 1 publisher
•Server type must be either Cisco MCS 7845-I3/H3 class or Cisco Unified Computing System (UCS) C-Series or B-Series using the 10K Open Virtualization Archive (OVA) template.
•Redundancy model must be 1:1. Reference:
http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/8_5_1/ccmfeat/fsgd-851-cm/fsmoh.html#wp

NEW QUESTION 25

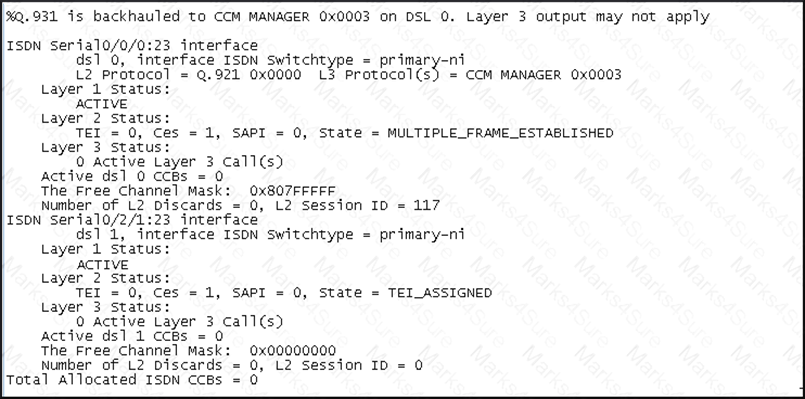

Refer to the exhibit.

Which two statements about the show command output are true? (Choose two.)

• A. T1 0/2/1 terminates Q.921 signaling to a Cisco Unified Communications Manager server.
• B. T1 0/0/0 terminates Q.921 signaling on the gateway.
• C. T1 0/0/0 terminates SIP Signaling to a Cisco Unified Communications Manager server.
• D. T1 0/0/0 terminates Q.931 signaling to a Cisco Unified Communications Manager server.
• E. T1 0/2/1 terminates Q.931 signaling on the gateway.

Answer: BD

Explanation:
As you can see the T1 0/0/0:23 interface is active in layer 1,2(multi frame established) & 3,it means Q.931 signaling terminates at gateway and using backhauled technique q931 messages are going to CUCM server.
But in case of T1 0/2/1 port multi frames are not established in layer 2.So, it’s not configured properly & doesn’t backhauling q931 messages to CUCM

NEW QUESTION 26

ACall is made between two desk phones enabled with single number reach that are registered to a cisco unified CM cluster. The device pool for each device has a local route group defined. When the call is placed to exit the system, which device pool control the destination gateway?

• A. Destination RDP
• B. Source Phone
• C. Source RDP
• D. Destination phone

Answer: B

NEW QUESTION 27
......
