NEW QUESTION 1

Which policy determines what happens to local disks when they are disassociated from a service profile?

• A. maintenance policy
• B. local disk policy
• C. scrub policy
• D. BIOS policy

Answer: C

NEW QUESTION 2

You manage Cisco UCS -Series Rack-Mount Servers. Which three components can you upgrade by using the Cisco Host Upgrade Utility? (Choose three.)

• A. the LAN on motherboard
• B. the Cisco Integrated Management Controller
• C. the operating system images
• D. the system BIOS
• E. the fabric interconnects
• F. the FEX modules

Answer: ABD

Explanation:
Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/lomug/2-0x/b_huu_2_0_3/b_huu_2_0_3_cha

NEW QUESTION 3

You have server that has a Cisco UCS CAN. A service profile that has a vNIC and a VHBA is mapped to fabric A. The vNIC is configured to use VLAN 10. VLAN 10 is the native VLAN for the vNIC. The vHBA is configured to use VSAN 2. Which description of the configuration is true?

• A. VSAN 2 can be configured by using VLAN 10 as the FCoE VLAN ID.
• B. VSAN 2 can read traffic on VLAN 5.
• C. VLAN 10 and VSAN 2 must use the same ID.
• D. VSAN 2 can be mapped to their VLANs in fabric A.

Answer: A

NEW QUESTION 4

You are implementing RBAC in Cisco UCS Manager. Which two statements about a locale are true? (Choose two.)

• A. A locale without any organizations provides access to all organizations.
• B. Each locale defines one to four organizations.
• C. A user can be assigned to one or more locales.
• D. Each locale defines one or more roles to which the user is allowed access.
• E. There is a one-to-one relationship between a user and a locale.

Answer: CD

Explanation:
Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.4.1/CLI_Config_Guide_1_4_1

NEW QUESTION 5

You have a Cisco UCS B200 M2 server configured with 12 4-GBDDR3 1333-MHz dual-voltage memory DIMMs. You learned that the server memory speed is running at 1066 MHz instead. How can you configure the server to run at maximum memory speed?

• A. You cannot configure memory speed of 1333 MH
• B. The maximum memory speed of a Cisco UCS B200 M2 server with 12 4-GBDIMM is 1066 MHz.
• C. Memory speed of the ESX host is configurable on VMware vCenter.
• D. Create a BIOS polic
• E. In the RAS Memory BIOS settings, select Performance Mode for LV DDR Mode.
• F. On the CIMC of the Cisco UCS B200 M2, select 1333 MHz in the Memory Speed option.

Answer: C

NEW QUESTION 6

Scenario

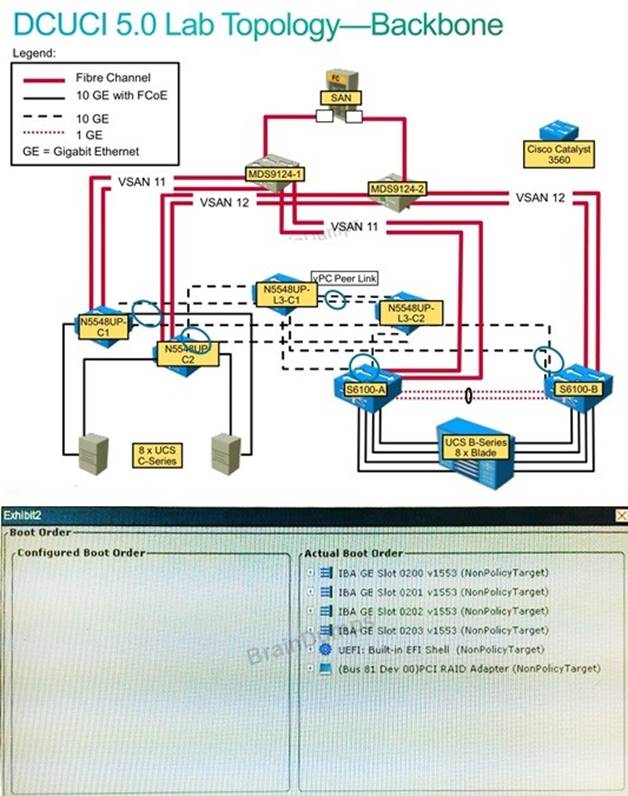

In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager. Instructions
To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

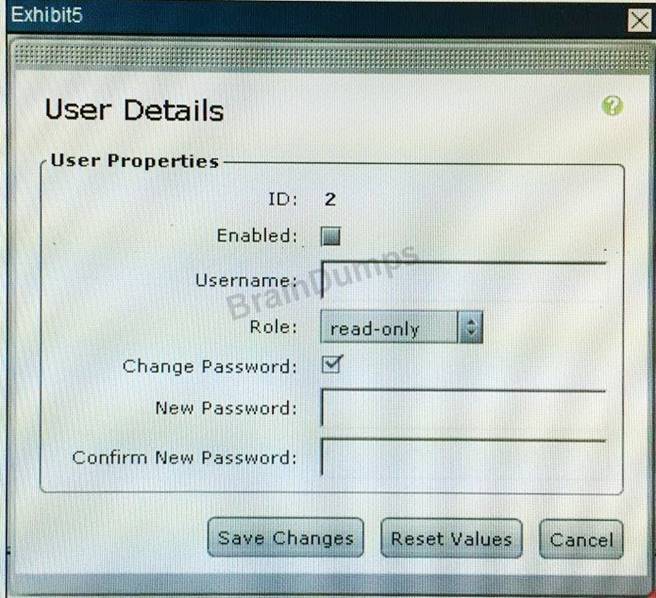

Refer to the screenshot in Exhibit 5. Which of the following user roles allows the permission Clear All Logs?

• A. read-only
• B. user
• C. operator
• D. system

Answer: C

Explanation:

Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/20/b_UCSM_GUI_Configura

NEW QUESTION 7

Which description of an import operation in Cisco UCS Manager is true?

• A. You can perform an import while the system is up and running.
• B. You can import only a configuration file that was exported from the same Cisco UCS Manager.
• C. You can import a configuration from a higher release to a lower release.
• D. You can schedule an import operation.

Answer: A

Explanation:
You can perform an import while the system is up and running.
You can import any configuration file that was exported from Cisco UCS Manager. The file does not need to have been exported from the same Cisco UCS Manager. You cannot schedule an import operation.
Reference: https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/
UCSM_GUI_Configuration_Guide_141_chapter43.html#task_B89DEDCFCDE54E9C81E67C53FAC4DEC6 https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/AdminManagem b_Cisco_UCS_Admin_Mgmt_Guide_3_1_chapter_01001.pdf
You cannot import configuration from a higher release to a lower release.

NEW QUESTION 8

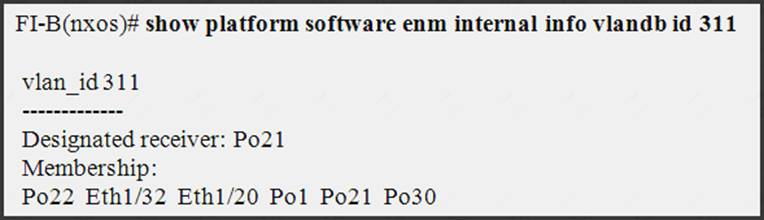

Refer to the exhibit.

Which two statements about the fabric interconnect are true? (Choose two.)

• A. The fabric interconnect forwards all broadcast packets on VLAN 311 out of each interface listed in the Membership.
• B. The fabric interconnect forwards broadcasts on VLAN 311 only when they are received on Po21.
• C. Without any changes to the switch, eth 1/32 could become the designated receiver for VLAN 311.
• D. All multicast traffic from a blade on VLAN 311 goes out of Po21.
• E. IGMP join packets from blades on VLAN 311 goes out Po21.

Answer: BE

NEW QUESTION 9

Scenario
In this scenario, you will refer to screenshots about Cisco UCS B-Series servers and UCS Manager. Instructions
To access the multiple-choice questions, click on the numbered boxes on the left of the top panel. There are four multiple-choice questions with this task. Be sure to answer all four questions before selecting the Next button.

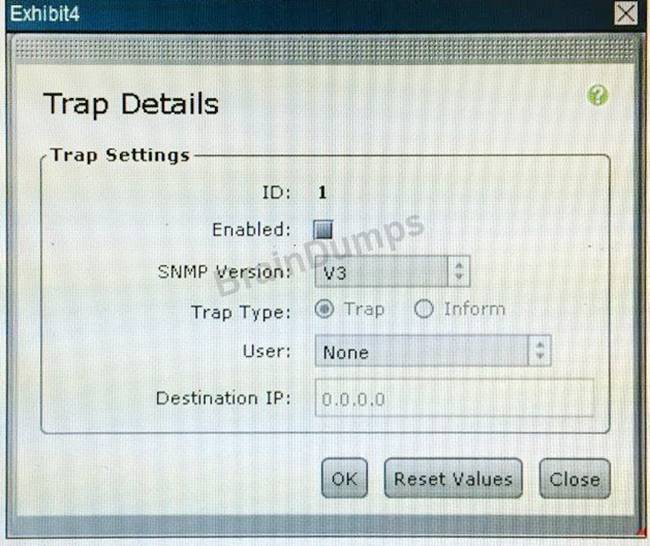

Refer to the screenshot in Exhibit 4. Once you enable an SNMP Trap destination, which SNMP Version is required to configure the Inform Trap Type?

• A. 1
• B. 2
• C. 2c
• D. 3

Answer: D

Explanation:
Reference:
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/5_x/nxos/system_management/configuration/guid

NEW QUESTION 10

Which command sequence in the Cisco UCS C-Series rack server CLI sends tech support data to a TFTP server?

• A. ucs-c250 / # scope cimcucs-c250 /cimc # scope tech-supportucs-c250 /cimc/tech-support # set path default.tar.gzucs-c250 /cimc/tech-support *# set tftp-ip 192.168.70.45 ucs-c250 /cimc/tech-support *# commit
• B. ucs-c250 / # scope systemucs-c250 /system # scope tech-supportucs-c250 /system/tech-support # set path default.tar.gzucs-c250 /system/tech-support *# set tftp-ip 192.168.70.45 ucs-c250 /system/tech-support *# commit
• C. ucs-c250 / # scope supportucs-c250 /support # scope tech-supportucs-c250 /support/tech-support # set path default.tar.gzucs-c250 /support/tech-support *# set tftp-ip 192.168.70.45 ucs-c250 /support/tech-support *# commit
• D. ucs-c250 / # scope faultucs-c250 /fault # scope tech-supportucs-c250 /fault/tech-support # set path default.tar.gzucs-c250 /fault/tech-support *# set tftp-ip 192.168.70.45 ucs-c250 /fault/tech-support *# commit

Answer: A

Explanation:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/cli/config/guide/1-1-2/b_Cisco_CIMC_CLI This example creates a support data file and transfers the file to a TFTP server:
Server# scope cimc
Server /cimc # scope tech-support
Server /cimc/tech-support # set tftp-ip 10.20.30.41
Server /cimc/tech-support *# set path /user/user1/supportfile Server /cimc/tech-support *# commit Server
/cimc/tech-support # start
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c/sw/cli/config/guide/1-1-2/b_Cisco_CIMC_CLI

NEW QUESTION 11

Which of the following is true concerning the Global Chassis Discovery policy configuration on the Cisco Unified Computing System Manager when using Cisco Unified Computing System 22XX I/O modules with Cisco UCS 62XX Fabric Interconnects?

• A. The link grouping preference should be set to discrete mode when the number of northbound links are not a power of 2.
• B. Set the action policy-count higher than the actual number of uplinks; otherwise, the Cisco Unified Computing System servers will not be discovered.
• C. For Cisco Unified Computing System implementations that mix I/O modules with different numbers of links, it is best to manually reacknowledge the chassis in order to use all available links.
• D. Automatic reacknowledgement due to chassis discovery is never disruptive.

Answer: C

NEW QUESTION 12

Which set of statements about the deployment options for Cisco UCS Central Software is true?

• A. Cisco UCS Central Software can be installed in a physical or a hypervisor environmen
• B. Only VMware and KVM hypervisor environments are supported.
• C. Cisco UCS Central Software can he installed in a physical or a hypervisor environmen
• D. VMware, Microsoft Hyper-V, and KVM hypervisor environments are supported.
• E. Cisco UCS Central Software can be installed only in a physical environment, due to extreme I/O and networking needs.
• F. Cisco UCS Central Software can be installed only in a VMware and Microsoft Hyper-V virtual environment.

Answer: A

Explanation:
UCS Central can only be installed in a hypervisor, but may be installed in VMW are ESXi, Hyper-V, and KVM.
This isn't an option Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-central/install-upgrade/1-3/b_Cisco_UCSC_I

NEW QUESTION 13

Open the windows by clicking on the minimized at the bottom of the viewing area. Windows can be minimized by clicking on the [X], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Clicking the icon will open a device terminal so you can interact with the hardware.
Open the Questions window and begin by clicking a question number. When you have completed answering all questions, click Done to continue.
Scenario

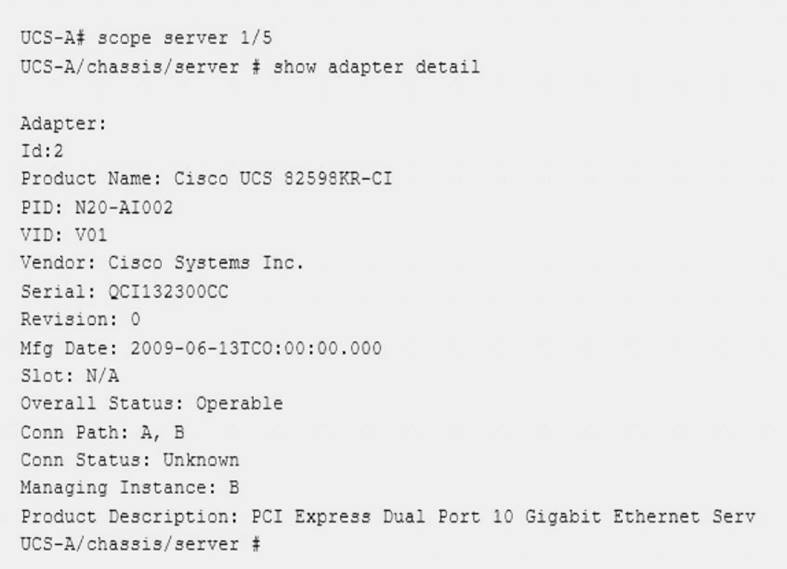

Use your UCS knowledge on Adapter errors ………………………………………configurations.

We are working on which server?

• A. 1
• B. 2
• C. 3
• D. 4
• E. 5

Answer: E

NEW QUESTION 14

Which policy is used to specify how Cisco UCS Manager should proceed for configuration changes that will have a service impact?

• A. host firmware policy
• B. maintenance policy
• C. local disk policy
• D. BIOS policy

Answer: B

NEW QUESTION 15

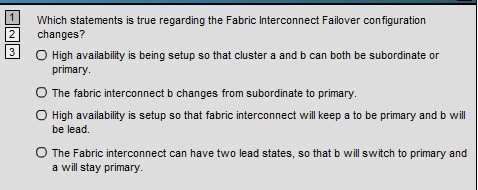

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

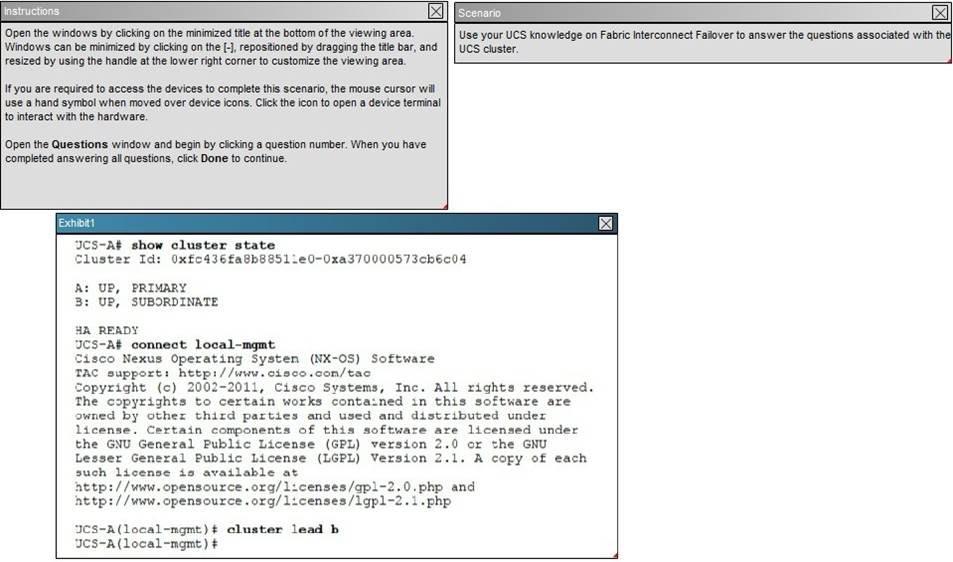

The fabric interconnect b changes from subordinate to primary

NEW QUESTION 16

Which actions must be taken in order to connect a NetAppFCoE storage system to a Cisco UCS system?

• A. Ensure that the Fibre Channel switching mode is set to Switching, and use the Fibre Channel ports on the Fabric Interconnects.
• B. Ensure that the Fibre Channel switching mode is set to Switching, and reconfigure the port to aFCoE Storage port.
• C. Ensure that the Fibre Channel switching mode is set to End-Host, and use the Ethernet ports on the Fabric Interconnects.
• D. Ensure that the Fibre Channel switching mode is set to Switching, and use the Ethernet ports on the Fabric Interconnects.

Answer: A

Explanation:
References:
http://www.renar.net/?p=148&lang=en https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/release/notes/UCS_28313.html

NEW QUESTION 17

Which of the Mowing do you use to update the board controller firmware?

• A. local disk
• B. infrastructure firmware
• C. server pool
• D. host firmware package

Answer: D

NEW QUESTION 18

Which two protocols does the Cisco Integrated Management Controller support for managing standalone Cisco UCS -Series servers? (Choose two.)

• A. SoL
• B. IPMI
• C. IPMIv2
• D. SMASH CLP
• E. SNMPv3

Answer: CE

Explanation:
Reference:
http://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-cseries-rack-servers/at-a-g

NEW QUESTION 19

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 20

Which three options are needed when configuring local zoning on the Cisco UCS Fabric Interconnects? (Choose three.)

• A. The fabric interconnects are operating in FC switching mode.
• B. The fabric interconnects are operating in FC end-host mode.
• C. SAN connectivity policy
• D. storage connection policy
• E. FC target endpoints
• F. iSCSI target endpoints

Answer: ADE

NEW QUESTION 21

A server discovery policy is defined in Cisco UCS Manager.
Which two actions are initiated by the policy when a new server starts? (Choose two.)

• A. The qualification in the server discovery policy is executed against the server.
• B. The scrub policy is applied to the server, if configured.
• C. A service profile is created for the server with the identity burned into the server at time of manufacture.
• D. The inventory of the server is analyzed.
• E. The server is assigned to the selected organization, if configured.

Answer: AB

NEW QUESTION 22

You attempt to perform an ESXi update on a Cisco UCS C250 server, but the update does not recognize the NICs. You must perform the update as quickly as possible. Which step must you do first?

• A. Check the UCS compatibility matrix and replace the NIC with a supported one.
• B. Reconfigure the NIC ID on the LOM.
• C. Update the LOM firmware by using the Cisco Host Update Utility.
• D. Update the NIC firmware by using the Cisco Host Update Utility.

Answer: C

Explanation:
https://supportforums.cisco.com/t5/unified-computing-system/ucs240m3-network-interfaces-missing-on-esxi-5-
http://terenceluk.blogspot.com/2011/08/updating-firmware-for-cisco-ucs-c.html

NEW QUESTION 23

Where do you configure the VLAN when provisioning new VLANs in VM-FEX?

• A. vCenter on the port group
• B. Cisco UCS Manager on the port profile
• C. Cisco UCS Manager on the service profile
• D. vCenter on the host

Answer: B

NEW QUESTION 24

You need to enable Cisco UCS Manager to support out-of-band IPv4 address access to the Cisco UCS KVM Direct launch page from a web browser.
What should you enable?

• A. SMASH CLP
• B. CIM XML
• C. SNMP
• D. CIMC Web Service

Answer: D

Explanation:
-Cisco UCS Manager supports out-of-band IPv4 address access to the Cisco UCS KVM Direct launch page from a web browser. To provide this access, you must enable the following service: CIMC Web Service
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/3-0/b_UCSM_GUI_User_G

NEW QUESTION 25

After an admin configures a service profile template and associates it to the blade, the admin notices that changes to the template are not automatically pushed to profiles that are inheriting that template. The service profile template and vNIC templates are set to "initial".
Which two actions resolve this issue? (Choose two.)

• A. Delete the vNIC template and re-create it as an uploading template.
• B. Delete the type of the vNIC template from “initial” to “updating”
• C. Delete the service profile template and re-create it as an updating template
• D. Delete and recreate all templates
• E. Change the type f the service profile template from “initial” to “updating”

Answer: AC

NEW QUESTION 26

You need to design and implement a Cisco UCS 5108 Blade Server Chassis system for a customer.
Which statement about how half-width blades and full-width blades can be used is true?

• A. Only two full-width blades can be installed in the top two slots, and four half-width blades can be installed in the bottom two slots.
• B. Only one full-width blade can be installed in the top slot, and six half-width blades can be installed in the bottom slots.
• C. Half-width blades and full-width blades can be combined in any order.
• D. Half-width blade types and full-width blade types cannot be combined.

Answer: C

Explanation:
Mixed blade configurations Allows up to 8 half-width or 4 full-width blade servers, or any combination thereof, for outstanding flexibility.
When configured with the 6324 Fabric Interconnect, only 8 half-width B200 M3 blades are supported. https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/hw/chassis-install-guide/ucs5108_install/
ucs5108_install_chapter_01.htm

NEW QUESTION 27

Cisco UCS Manager has deleted the VM object from its database, yet it still exists in vCenter. For which two reasons is the object removed from the Cisco UCS Manager database? (Choose two.)

• A. The VM last passed traffic more than 5 minutes ago.
• B. The VM is misconfigured.
• C. The VM has been offline for more than 15 minutes.
• D. vCenter is offline.
• E. The VN link policy has been set for auto-deletion during a vMotion event.
• F. The link between the fabric interconnect and IOM is offline.
• G. The object was deleted in the Cisco UCS Manager, which also deletes it from vCenter.
• H. The VM traffic is being sent to a SPAN

Answer: CF

NEW QUESTION 28

For which reason would a user choose UEFI boot over Legacy mode?

• A. To support multiple GPU cards
• B. For checksum verification of the EFI shell
• C. To support 4k boot drives.
• D. To reduce BIOS POST times

Answer: C

NEW QUESTION 29

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 30
......
