Cisco 352-001 Braindump 2021

NEW QUESTION 1
Which two conditions must be met for EIGRP to maintain an alternate loop-free path to a remote network? (Choose two)

• A. The Reported Distance from a successor is lower than the local Feasible Distance
• B. The Reported Distance from a successor is higher than the local Feasible Distance
• C. A feasible successor must be present
• D. The feasible Distance from a successor is lower than the local Reported Distance
• E. The feasibility condition do not need to be met

Answer: AC

NEW QUESTION 2
A Mobile Service Provider would like to design and deploy an Ethernet service which has similar
physical link failover/failback characteristics on the active/backup links as the APS/MSP SONET properties. Which Layer 2 service addresses should be considered to address this design feature?

• A. Port-Channel
• B. MLPPP
• C. Flex Link
• D. Ethernet Pseudowire

Answer: C

NEW QUESTION 3

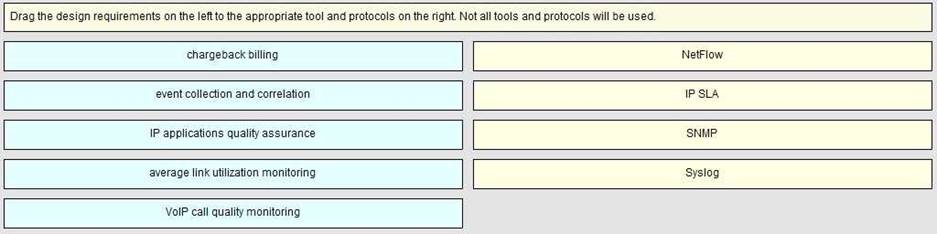

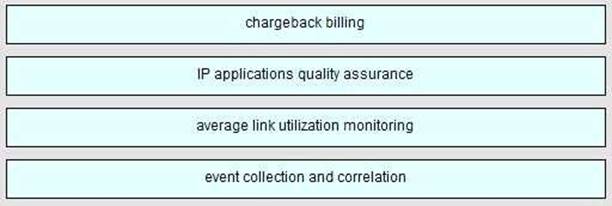

DRAG DROP

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 4

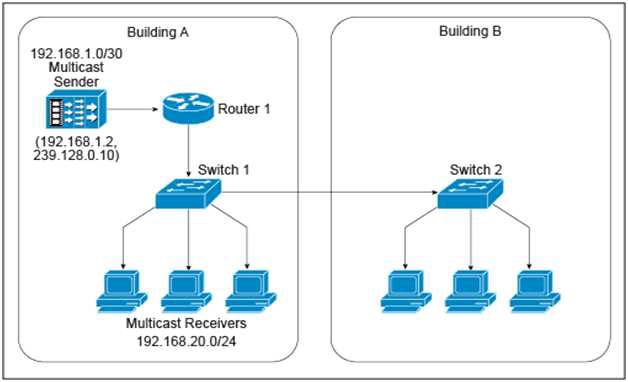

Refer to the exhibit.

A new IPv4 multicast-based video-streaming service is being provisioned. During the design- validation tests, you realize that the link between the two buildings is carrying multicast traffic even when there are no receivers connected to the switch in Building B and despite IGMP snooping being enabled on both Layer 2 switches and IGMPv2 runs on the hosts. Which design change will prevent the multicast traffic from being unnecessarily flooded throughout the campus network?

• A. Enable PIM snooping on both Layer 2 switches.
• B. Enable multicast storm control on the link between Switch 1 and Switch 2.
• C. Use static Layer 2 MAC forwarding entries on Switch 1.
• D. Change the IPv4 multicast group address such that it excludes the usage of link-local MAC addresses.
• E. Ensure that Switch 1 is an IGMP querier.

Answer: D

NEW QUESTION 5
You are consultant network designer for a large GET VPN deployment for a large bank with International coverage. Between 1800 and 2000 remote locations connect to the central location through four hubs using an MPLS backbone and using two keys servers. The bank is concerned with security and replay attacks. Which two actions should you use to tune the GET VPN to meet the bank requirements? (Choose two)

• A. Increase the cryptographic key size.
• B. Replace unicast rekey with multicast rekey.
• C. Reduce the SAR clock interval duration
• D. Increase the TEK and KEK lifetime.
• E. Reduce the Dead Peer Detection periodic timer.

Answer: BC

NEW QUESTION 6
You work as a network designer for a company that is replacing their Frame Relay WAN with an MPLS
VPN service, where the PE-to-CE routing protocol is BGP. The company has 3000 routes in their distribution routers, and they would like to advertise their access routers through the MPLS network. Their service provider, however, only supports 1000 prefixes per VRF. Which two design solutions can be applied to ensure that your access routers will be able to reach all devices in your network? (Choose two.)

• A. Configure the distribution routers to send a default route to the MPLS network
• B. Configure null routes and aggregate routes for the prefixes in your network on the distribution routers
• C. Summarize the routes on MPLS WAN interfaces of the distribution routers
• D. Use prefix lists on the distribution routers to control which routes are sent to MPLS network
• E. Configure the access routers to send a default route to the MPLS network

Answer: AC

NEW QUESTION 7
Which three processes are part of the ITILv3 Service Operation? (Choose three)

• A. Release and deployment management
• B. Problem management
• C. Incident management
• D. Event management
• E. Service-level management
• F. Change management

Answer: BCD

NEW QUESTION 8
A retail company connects its 250 branches across the globe to the core using MPLS Layer 3 VPN. The company is planning to migrate its traditional telephony services to VoIp, in order to reduce the cost of international calls. What are the two primary concerns when implementing this migration? (Choose two)

• A. Jitter
• B. Call routing design
• C. SRST
• D. MTU
• E. Available bandwidth

Answer: AE

NEW QUESTION 9

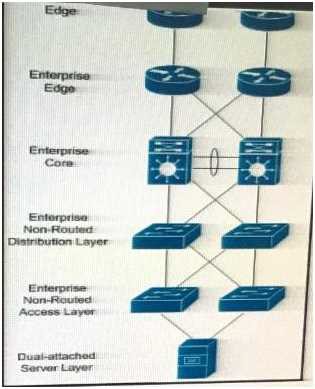

Refer to the Exhibit.

In which three Layers should you use nonstop Forwarding to reduce service impact in case of failure? (Choose three)

• A. Enterprise Edge
• B. Enterprise Core
• C. Service provider Edge
• D. Dual-attached sever Layer
• E. Enterprise Non-Routed Access Layer
• F. Enterprise Non-Routed Distribution Layer.

Answer: ABC

NEW QUESTION 10
DRAG DROP

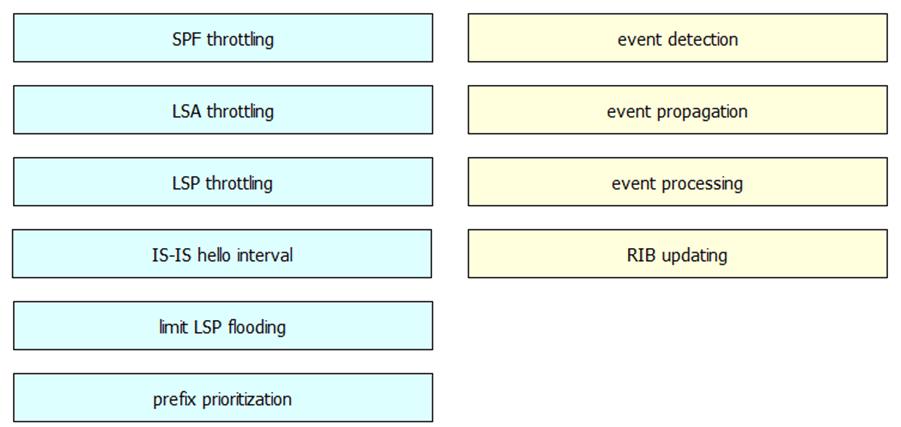

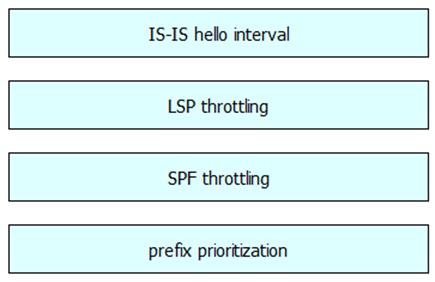

As a network designer for a major multiservice network, your first assignment is to improve the IS-IS convergence to meet application requirements. Drag and drop the convergence tools or techniques to be used on your proposal from the left into the corresponding convergence phase on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 11
You are designing a data center migration from one location to another, which requires all existing
VLANs spanned to the new data center to maintain host IP addressing. Two temporary Gigabit Ethernet circuits are available to extend the VLANs at Layer 2 to the location as trunk links between core switches in each location. Which solution provides maximum fault isolation between the two data centers to ensure a Layer Issue in one data center does not affect the other during the migration?

• A. Perform BPDU filtering over the trunk links
• B. Enable STP PortFast on host ports within each data center
• C. Run the dual links as multichassis Etherchannel trunk between core switches within each location
• D. Perform HSRP filtering over the trunk links to maintain active HSRP gateways within each data center for each VLAN

Answer: A

NEW QUESTION 12
When you design a network that uses IPsec, where can you reduce MTU to avoid network
fragmentation?

• A. on both ends of the TCP connection
• B. on the side closest to the client
• C. on the side closest to the server
• D. in the WAN

Answer: A

NEW QUESTION 13
Why is a redundant PIM stub router topology a bad network design decision?

• A. Multicast convergence takes long
• B. Multicast traffic duplication will occur
• C. It interferes with IGMP snooping
• D. It interfaces with PIM snooping

Answer: B

NEW QUESTION 14
Which open source message broker is in the Cisco Cloud Center?

• A. Apache kafka
• B. HornetQ
• C. RabbitMQ
• D. Fuse Message Broker
• E. Oracle Message Broker

Answer: C

NEW QUESTION 15
Which two IoT use cases require the low latency and high reliability that 5G networks provide?

• A. Smart Home
• B. Automotive
• C. Health and Wellness
• D. Smart Cities
• E. Sports and Fitness

Answer: BC

NEW QUESTION 16
DRAG DROP

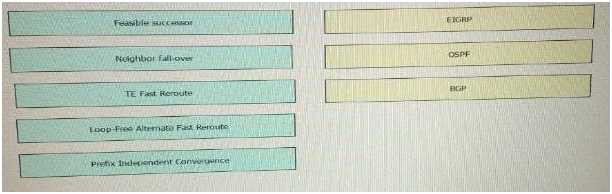

Drag the fast Reroute mechanism on the left and drop it onto the corresponding routing protocol on the right

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
A, D, E

NEW QUESTION 17
There is an MPLS-enabled link constantly flapping on an MPLS VPN network. Given that the network
runs OSPF as the IGP protocol, which design mechanism will stabilize the network and avoid constant re-convergence?

• A. IP Event Dampening
• B. OSPF fast hellos
• C. IP SLA
• D. Partial SPF

Answer: A

NEW QUESTION 18
Which two functions are performed at the distribution layer of the three-layer hierarchical network design model? (Choose two).

• A. Fault isolation
• B. QoS classification and marking boundary
• C. Fast transport
• D. Reliability
• E. Load balancing

Answer: AE

NEW QUESTION 19
Which are two data plane hardening techniques? (Choose two)

• A. Infrastructure ACLs
• B. Control Plane Policing
• C. Redundant AAA servers
• D. Disable unused services
• E. Routing protocol authentication
• F. SNMPv3
• G. Warning banners

Answer: AB

NEW QUESTION 20

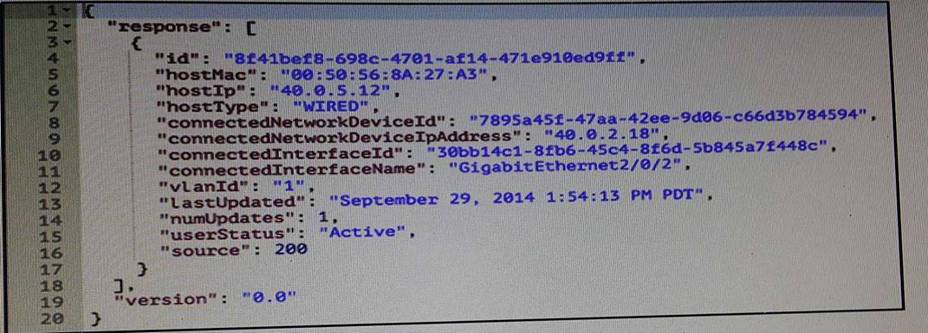

Refer to the exhibit.

Which data format is used in this REST API call?

• A. JSON
• B. HTMLv5
• C. HTML
• D. XML
• E. BASH

Answer: A

NEW QUESTION 21
Which three network management requirements are common practices in network design? (Choose
three)

• A. Collect RMON poll information for future regression analysis
• B. Ensure that all network devices have their clocks synchronized
• C. Look at average counters instead of instantaneous counters for inconsistent and bursty KPIs, such as CPU utilization and interface utilization.
• D. Collect SNMP poll information for future regression analysis
• E. Validate data plane health, application and services availability with synthetic traffic
• F. Capture both ingress and egress flow-based packet
• G. While avoiding duplications of flows

Answer: BCD

NEW QUESTION 22
A large enterprise network running IS-IS wants to deploy IGP traffic engineering, but they are concerned that the IS-IS default metrics are not flexible enough. Which feature must be enabled to provide traffic engineering with the minimum amount of changes?

• A. IS-IS Narrow Metrics
• B. IS-IS DIS
• C. IS-IS Wide Metrics
• D. IS-IS Multitopology

Answer: C

NEW QUESTION 23
Which effect of designing a Layer 2 network using the PortFast fast feature with PVST+ is true?

• A. It shuts down the port when receiving the superior BPDU
• B. It accelerates the network convergence on the trunk uplinks
• C. In combination with BPDU filtering, it causes the switch port to stay in the forwarding state
• D. It moves the switch port directly to the forwarding state

Answer: D

NEW QUESTION 24
In which two ways is a network design improved by including IP Event Dampening? (Choose two)

• A. Provides sub-second convergence
• B. Quickly detects network failures
• C. Prevent routing loops
• D. Improves network stability
• E. Reduces processing load

Answer: DE

NEW QUESTION 25
What is a correct design consideration of IPv6 MLD snooping?

• A. MLD snooping conserves bandwidth on switches.
• B. MLD snooping is used to filter all MLD queries.
• C. MLD snooping requires IGMP snooping to be implemented.
• D. MLD snooping conserves CPU by sharing IPv4 and IPv6 multicast topology.

Answer: A
