NEW QUESTION 1
Which configuration on Cisco Unified Communications Manager is required for SIP MWI to work?

• A. The line partition must be inside the inbound CSS assigned to the CUC SIP trunk.
• B. The line partition must be inside the rerouting CSS assigned to the Cisco Unity Connection SIP trunk.
• C. Set the “Enable message waiting indicator” on the part group.
• D. Assign a MWI extension on the mailbox.

Answer: C

NEW QUESTION 2
On which Cisco Unified Communications Manager nodes can the TFTP service be enabled?

• A. any node
• B. any two nodes
• C. only nodes that have Cisco Unified CM service enabled
• D. any subscriber nodes

Answer: C

Explanation:
You can configure the TFTP service on the first node or a subsequent node, but usually you should configure it on the first node. For small systems, the TFTP server can coexist with a Cisco Unified Communications Manager on the same server.

NEW QUESTION 3
DRAG DROP
According to the QoS Baseline Model, drag and drop the applications from the left onto the correct Per-Hop Behavior values on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 4
An engineer with troubleshoots poor voice quality on multiple calls. After looking at packet captures, the engineer notices high levels of jitter. Which two areas does the engineer check to prevent jitter? (Choose two.)

• A. The network meets bandwidth requirements.
• B. MTP is enabled on the SIP trunk to Cisco Unified Border Element.
• C. Cisco UBE manages voice traffic, not data traffic.
• D. All devices use wired connections instead of wireless connections.
• E. Voice packets are classified and marked.

Answer: AE

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/voice/voice-quality/20371-troubleshoot-qos-voice.html

NEW QUESTION 5
An administrator is trying to change the default LINECODE for a voice ISDN T1 PRI. Which command makes this change?

• A. linecode esf
• B. linecode ami
• C. linecode hdb3
• D. linecode b8zs

Answer: D

Explanation:
Reference: https://www.cisco.com/en/US/docs/ios/dial/configuration/guide/dia_cfg_isdn_pri_external_docbase_0900e4b1806c752c_4container_external_docbase_0900e4b18216dd1b.html

NEW QUESTION 6
Refer to the exhibit.

This INVITE is sent to an endpoint that only supports G729. What must be done for this call to succeed?

• A. Nothing: both sides support G.729.
• B. Add a transcoder that supports G711ulaw and G.729.
• C. Add a media termination point that supports G.711ulaw and G.729.
• D. Nothing: both sides support payload type 101.

Answer: D

NEW QUESTION 7
Refer to the exhibit.

Given this "debug isdn q921" output, what is the problem with the PRI?

• A. Layer 1 is down on the controller.
• B. PRI does not have an IP address configured on the interface.
• C. Nothing, the PRI is sending keepalives.
• D. Layer 2 is down on the controller.

Answer: D

NEW QUESTION 8
Refer to the exhibit.

An engineer configures a VoIP dial peer on a Cisco gateway. Which codec is used?

• A. G.711ulaw
• B. No codec is used (missing codec command).
• C. G.711alaw
• D. G.729r8

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/dialpeer/configuration/15-mt/vd-15-mt-book/vd-dp-cfg-examp.pdf

NEW QUESTION 9
Which wildcard must an engineer configure to match a whole domain in SIP route patterns?

• A. .
• B. !
• C. @
• D. *

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmcfg/CUCM_BK_C95ABA82_00_admin-guide-100/CUCM_BK_C95ABA82_00_admin-guide-100_chapter_0100111.html

NEW QUESTION 10
Which settings are needed to configure the SIP route pattern in Cisco Unified Communications Manager?

• A. pattern usage, IPv6 pattern, and SIP trunk/Route list
• B. pattern usage, IPv4 pattern, IPv6 pattern, and description
• C. pattern usage, IPv4 pattern, and SIP trunk/Route list
• D. SIP trunk/Route list, description, and IPv4 pattern

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmcfg/CUCM_BK_C95ABA82_00_admin-guide-100/CUCM_BK_C95ABA82_00_admin-guide-100_chapter_0100111.pdf

NEW QUESTION 11
Which two functions are provided by Cisco Expressway Series? (Choose two.)

• A. interworking of SIP and H.323
• B. endpoint registration
• C. intercluster extension mobility
• D. voice and video transcoding
• E. voice and video conference

Answer: AD

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/expressway/config_guide/X8-11/Cisco-Meeting-Server-2-4-with-Cisco-Expressway-Deployment-Guide_X8-11-4.pdf

NEW QUESTION 12
An incoming off-net call to a user fails. An engineer notices that the off-net call is G.711, but the phone accepts only G.729. Which media resource on a Cisco Unified Border Element and Cisco Unified Communications Manager must the engineer configure to manage the codec negotiation?

• A. transcoder
• B. CFB
• C. MOH
• D. MTP

Answer: A

NEW QUESTION 13
Refer to the exhibit.

The translation rule is configured on the voice gateway to translate DNIS. What is the outcome if the gateway receives 0255-343-1234 as DNIS?

• A. The translation is not matched because DNIS contains “-”.
• B. The translation is not matched because DNIS does not end with a “$”.
• C. The translation is matched and the translated number is 02553431234.
• D. The translation is matched and the translated number is 025553431234.

Answer: A

NEW QUESTION 14

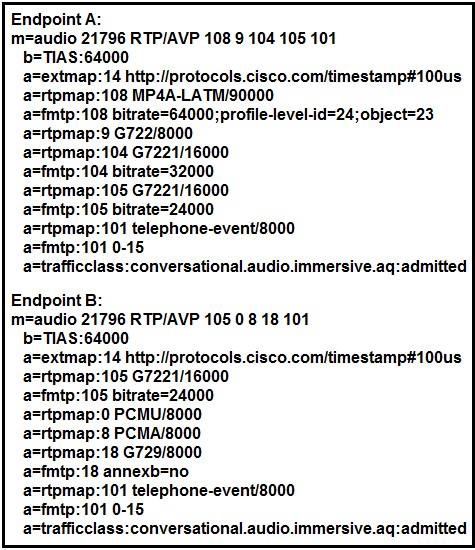

Refer to the exhibit.

Endpoint A calls endpoint B. What is the only audio codec that can be used for the call?

• A. Telephone-event/8000
• B. G7221/16000
• C. PCMA/8000
• D. G722/8000

Answer: B

NEW QUESTION 15
On which protocol and port combination does Cisco Prime Collaboration receive notifications (Traps and InformRequests) from several network devices in the Collaboration infrastructure for which it has requested notifications?

• A. UDP 162
• B. TCP 80
• C. UDP 161
• D. TCP 161

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/net_mgmt/prime/collaboration/12-1/assurance/advanced/guide/cpco_b_cisco-prime-collaboration-assurance-guide-advanced-12-1/cpco_b_cisco-prime-collaboration-assurance- guideadvanced-12-1_chapter_01111.html

NEW QUESTION 16
A customer is deploying a SIP IOS gateway for a customer who requires that in-band DTMF relay is first priority and out-of-band DTMF relay is second priority. Which IOS entry sets the required priority?

• A. dtmf-relay rtp-nte sip-notify B.dtmf-relay cisco-rtp
• B. sip-notify dtmf-relay rtp-nte
• C. dtmf-relay sip-kpml cisco-rtp

Answer: A

NEW QUESTION 17
How does an administrator make a Cisco IP phone display the last 10 digits of the calling number when the call is in the connected state, and also display the calling number in the E.164 format within call history on the phone?

• A. Configure a translation pattern that has a Calling Party Transform Mask of XXXXXXXXXX.
• B. On the inbound SIP trunk, change Significant Digits to 10.
• C. Change the service parameter Apply Transformations On Remote Number to True.
• D. Configure a calling party transformation pattern that keeps only the last 10 digits.

Answer: D

NEW QUESTION 18
An engineer is notified that the Cisco TelePresence MX800 that is registered in Cisco Unified Communications Manager shows an empty panel, and the Touch 10 shows a corresponding icon with no action when pressed. Where does the engineer go to remove the inactive custom panel?

• A. The Software Upgrades page in CUCM OS Administration
• B. The In-Room Control Editor on the webpage of the MX800
• C. The phone configuration page in CUCM Administration
• D. The SIP Trunk Security Profile page in CUCM Administration

Answer: A

NEW QUESTION 19
Which action prevents toll fraud in Cisco Unified Communications Manager?

• A. Implement toll fraud restriction in the Cisco IOS router.
• B. Implement route patterns in Cisco Unified CM.
• C. Allow off-net to off-net transfers.
• D. Configure ad hoc conference restriction.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-communications-manager-express/107626-cme-toll-fraud.html

NEW QUESTION 20
Which two conditions must a user meet to provision a new device using the Self-Provisioning feature? (Choose two.)

• A. The user must have a primary extension.
• B. At least two DNs must be assigned to the user device.
• C. The user must be part of “Standard CCM Super User”.
• D. The user must have the appropriate universal device template linked to the user profile.
• E. The user must have at least user device profile assigned.

Answer: AD

NEW QUESTION 21
Which configuration step is necessary for a Cisco SIP phone to synchronize its time with a specific source?

• A. Add a Phone NTP Reference to the Date/Time Group.
• B. Assign the device to the correct region.
• C. Change the Time Format from 24-hour to 12-hour.
• D. Change the Time Zone from “America/Los_Angeles" to “Etc/GMT+8".

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmcfg/CUCM_BK_C95ABA82_00_admin-guide-100/CUCM_BK_C95ABA82_00_admin-guide-100_chapter_0110.html

NEW QUESTION 22
Which command in the MGCP gateway configuration defines the secondary Cisco Unified Communications Manager server?

• A. mgcapp
• B. ccm-manager fallback-mgcp
• C. mgcp call-agent
• D. ccm-manager redundant-host

Answer: B
