NEW QUESTION 1
Which of the following are not BGRP data structures? (Choose all that apply.)

• A. EIGRP database table
• B. EIGRP CEF table
• C. EIGRP neighbor table
• D. EIGRP adjacency table
• E. EIGRP interface table
• F. EIGRP topology table

Answer: ABD

NEW QUESTION 2
Drag and drop the components of a GRE tunnel from the left into the correct order on the right when monitoring a GRE encapsulated packet.

Answer:

Explanation: A. Source tunnel IP headerB. Destination tunnel IP headerC. GRE headerD. Original source IP header

NEW QUESTION 3
On which plane of operation can you access and configure a router or switch?

• A. forwarding
• B. management
• C. control
• D. data

Answer: B

NEW QUESTION 4
Which two features are supported with GRE-based tunnels? (Choose two )

• A. on-demand tunnels
• B. any-to-any connectivity
• C. data encapsulation
• D. encryption
• E. multicast traffic forwarding

Answer: CE

NEW QUESTION 5

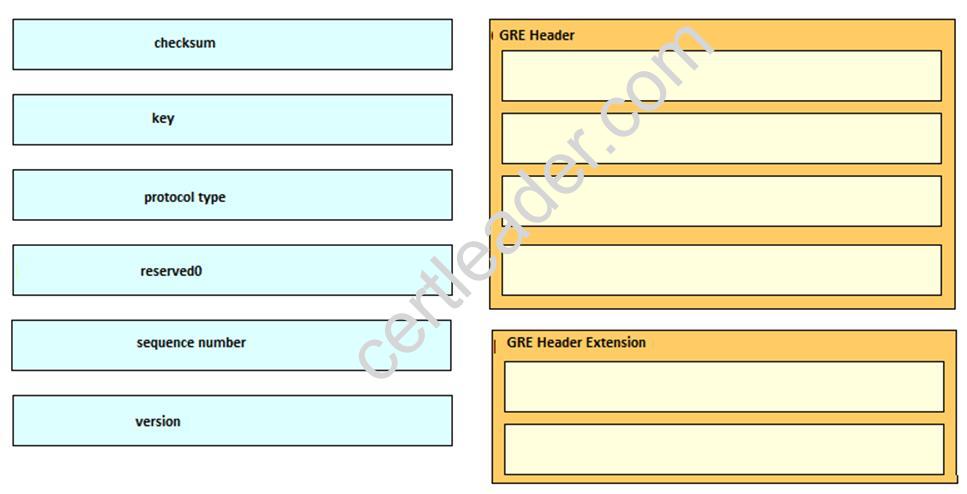

Drag and drop the GRE header fields from the left into the correct categories on the right.

Answer:

Explanation: Gre header
Reserved 0 Version Protocol Checksum
GRE header extension
Key
Sequence number

NEW QUESTION 6
Drag each debug command on the left to the type of issue it can debug on the right.

Answer:

Explanation: Debug ip cef packet –>hardware routed packetsDebug ip mpacket–> multicast packetDebug ip packet –> all ipv4 informationDebug ipv6 packet –> all ipv6 informationDebug standby errors –> hsrp issuesDebug vlan packets –> 802.1Q traffic issue

NEW QUESTION 7
The implementations group has been using the test bed to do a ‘proof-of-concept’ that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing schemes, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.
Use the supported commands to isolated the cause of this fault and answer the following questions. On which device is the fault condition located?

• A. R1
• B. R2
• C. R3
• D. R4
• E. DSW1
• F. DSW2
• G. ASW1

Answer: A

Explanation: The BGP neighbor statement is wrong on R1.

NEW QUESTION 8
Which of the following statements regarding documentation would not be considered a helpful step in the troubleshooting process?

• A. Use the Cisco Auto Configuration tool.
• B. Use the Cisco Rollback feature.
• C. Automate documentation.
• D. Schedule documentation checks.
• E. Use the Cisco Configuration Archive tool.
• F. Require documentation prior to a ticket being closed out.

Answer: A

NEW QUESTION 9
Which of the following commands will display a router's crypto map IPsec security association settings?

• A. show crypto map ipsec sa
• B. show crypto map
• C. show crypto engine connections active
• D. show ipsec crypto map
• E. show crypto map sa
• F. show ipsec crypto map sa

Answer: A

NEW QUESTION 10
The implementations group has been using the test bed to do a ‘proof-of-concept’ that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.
Use the supported commands to isolated the cause of this fault and answer the following questions. On which device is the fault condition located?

• A. R1
• B. R2
• C. R3
• D. R4
• E. DSW1
• F. DSW2
• G. ASW1
• H. ASW2

Answer: E

Explanation: On DSW1, VALN ACL, Need to delete the VLAN access-map test1 whose action is to drop access-list 10; specifically 10.2.1.3

NEW QUESTION 11
The implementations group has been using the test bed to do a ‘proof-of-concept’ that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.
Use the supported commands to isolated the cause of this fault and answer the following questions. On which device is the fault condition located?

• A. R1
• B. R2
• C. R3
• D. R4
• E. DSW1
• F. DSW2
• G. ASW1
• H. ASW2

Answer: G

Explanation: port security needs is configured on ASW1.

NEW QUESTION 12
The implementations group has been using the test bed to do a ‘proof-of-concept’ that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.
Use the supported commands to isolated the cause of this fault and answer the following questions. Which is the solution to the fault condition?

• A. Under the EIGRP process, delete the redistribute ospf 1 route-map OSPF_ to_ EIGRP command and enter the redistribute ospf 1 route-map OSPF - > EIGRP command.
• B. Under the EIGRP process, delete the redistribute ospf 1 route-map OSPF_ to_ EIGRP command and enter the redistribute ospf 6 metric route-map OSPF - > EIGRP command.
• C. Under the OSPF process, delete the redistribute eigrp10 subnets route-map EIGPR ->OSPF command and enter the redistribute eigrp10 subnets route-map OSPF - > EIGRP command.
• D. Under the OSPF process, delete the redistribute eigrp10 subnets route-map EIGPR ->OSPF command and enter the redistribute eigrp10 subnets route-map EIGPR - > OSPF command.
• E. Under the EIGRP process, delete the redistribute ospf 1 route-map OSPF _to_ EIGRP command and enter redistribute ospf 1 metric 100000 100 100 1 15000 route_ map OSPF _to _EIGRP command

Answer: A

Explanation: On R4, in the redistribution of EIGRP routing protocol, we need to change name of route-map to resolve the issue. It references route-map OSPF_to_EIGRP but the actual route map is called OSPF->EIGRP.
===============================================================================

Topic 14, Ticket 9 : EIGRP AS number
Topology Overview (Actual Troubleshooting lab design is for below network design)
Client Should have IP 10.2.1.3
EIGRP 100 is running between switch DSW1 & DSW2
OSPF (Process ID 1) is running between R1, R2, R3, R4
Network of OSPF is redistributed in EIGRP
BGP 65001 is configured on R1 with Webserver cloud AS 65002
HSRP is running between DSW1 & DSW2 Switches
The company has created the test bed shown in the layer 2 and layer 3 topology exhibits. This network consists of four routers, two layer 3 switches and two layer 2 switches.
In the IPv4 layer 3 topology, R1, R2, R3, and R4 are running OSPF with an OSPF process number 1. DSW1, DSW2 and R4 are running EIGRP with an AS of 10. Redistribution is enabled where necessary.
R1 is running a BGP AS with a number of 65001. This AS has an eBGP connection to AS 65002 in the ISP’s network. Because the company’s address space is in the private range.
R1 is also providing NAT translations between the inside (10.1.0.0/16 & 10.2.0.0/16) networks and outside (209.65.0.0/24) network.
ASW1 and ASW2 are layer 2 switches.
NTP is enabled on all devices with 209.65.200.226 serving as the master clock source.
The client workstations receive their IP address and default gateway via R4’s DHCP server.
The default gateway address of 10.2.1.254 is the IP address of HSRP group 10 which is running on DSW1 and DSW2.
In the IPv6 layer 3 topology R1, R2, and R3 are running OSPFv3 with an OSPF process number 6. DSW1, DSW2 and R4 are running RIPng process name RIP_ZONE.
The two IPv6 routing domains, OSPF 6 and RIPng are connected via GRE tunnel running over the underlying IPv4 OSPF domain. Redistrution is enabled where necessary.
Recently the implementation group has been using the test bed to do a ‘proof-of-concept’ on several
implementations. This involved changing the configuration on one or more of the devices. You will be presented with a series of trouble tickets related to issues introduced during these configurations.
Note: Although trouble tickets have many similar fault indications, each ticket has its own issue and solution.
Each ticket has 3 sub questions that need to be answered & topology remains same. Question-1 Fault is found on which device,
Question-2 Fault condition is related to,
Question-3 What exact problem is seen & what needs to be done for solution
===============================================================================


Client is unable to ping IP 209.65.200.241
Solution
Steps need to follow as below:-
When we check on client 1 & Client 2 desktop we are not receiving DHCP address from R4 ipconfig ----- Client will be receiving IP address 10.2.1.3
From Client PC we can ping 10.2.1.254
But IP 10.2.1.3 is not able to ping from R4, R3, R2, R1
This clearly shows problem at R4 Kindly check routes in EIGRP there are no routes of eigrp.
Check the neighborship of EIGRP on R4; there are no neighbor seen from DSW1 & DSW2 check the running config of EIGRP protocol it shows EIGRP AS 1 process…. Now check on DSW1 & DSW2

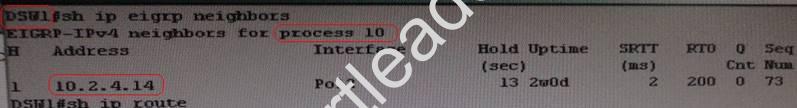

On DSW1 only one Eigrp neighbour is there with DSW2 but its not with R4…

From above snapshot & since R4 has EIGRP AS number 1 due to which neighbour is not happening.
Change required: On R4, IPV4 EIGRP Routing, need to change the EIGRP AS number from 1 to 10 since DSW1 & DSW2 is configured to be in EIGRP AS number 10.
------------------------------------------------------------------------------------------------------------------------------

NEW QUESTION 13
Which of the following are common issues that should be considered when establishing or troubleshooting site-to-site VPNs? (Choose all that apply.)

• A. User authentication
• B. Overlapping IP address space
• C. GRE or IPsec configuration
• D. MTU size
• E. VPN client software
• F. Authentication server configured ly

Answer: BCD

NEW QUESTION 14
Which of the following characteristics describe the BPDU Guard feature? (Choose all that apply.)

• A. ABPDU Guard port should only be configured on ports with PortFast enabled.
• B. BPDU Guard and PortFast should not be enabled on the same port.
• C. BPDU Guard is used to ensure that superior BPDUs are not received on a switch port.
• D. ABPDU Guard port receiving a BPDU will go into err-disable state.
• E. ABPDU Guard port receiving a BPDU will be disabled.
• F. BPDU Guard can be enabled on any switch port.

Answer: ADE

Explanation: Option A is, obviously, valid, since BPDUGuard is a enhancement of thePortFast feature. Reference: Spanning Tree PortFast BPDU Guard Enhancement
http://www.cisco.com/en/US/tech/tk389/tk621/technologies_tech_note09186a008009482f.shtml

NEW QUESTION 15
Which of the following management types can be used to deploy appropriate quality-of-service solutions to make the most efficient use of bandwidth?

• A. Fault management
• B. Accounting management
• C. Operations management
• D. Performance management
• E. Security management
• F. Configuration management

Answer: D

NEW QUESTION 16
Which of the following commands will restore a previously archived configuration by replacing the running configuration with the archived configuration?

• A. configure archive running-config
• B. configure replace
• C. copy archive running config
• D. copy startup-config running-config
• E. copy tftp running-config
• F. configure tftp running-config

Answer: B

NEW QUESTION 17
Which of the following statements concerning IGMP are correct? (Choose all that apply.)

• A. With IGMPvl, queries are sent to a specific group.
• B. Hosts issuing IGMPvl requests will be correctly interpreted by IGMPv2 hosts due to backward compatibility.
• C. An IGMPv2 router will ignore IGMPv2 leave messages when IGMFVl hosts are present.
• D. With IGMFV2, a leave message is supported.
• E. An IGMPv2 host will send an IGMFVl report on an IGMFVl router.
• F. An IGMPv2 router can only allow IGMPv2 hosts to execute a join request.

Answer: CDE

NEW QUESTION 18
The implementations group has been using the test bed to do a ‘proof-of-concept’ that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address.
Use the supported commands to isolated the cause of this fault and answer the following questions. The fault condition is related to which technology?

• A. NTP
• B. IP DHCP Server
• C. IPv4 OSPF Routing
• D. IPv4 EIGRP Routing
• E. IPv4 Route Redistribution
• F. IPv6 RIP Routing
• G. IPv6 OSPF Routing
• H. IPv4 and IPv6 Interoperability
• I. IPv4 layer 3 security

Answer: E

Explanation: On R4, in the redistribution of EIGRP routing protocol, we need to change name of route-map to resolve the issue. It references route-map OSPF_to_EIGRP but the actual route map is called OSPF->EIGRP.
