NEW QUESTION 1
When implementing OSPFv3, which statement describes the configuration of OSPF areas?

• A. In interface configuration mode, the OSPFv3 area ID combination assigns interfaces to OSPFv3 areas.
• B. In router configuration mode, the network wildcard area ID combination assigns networks to OSPFv3 areas.
• C. In interface configuration mode, the IPv6 OSPF process area ID combination assigns interfaces to OSPFv3 areas.
• D. In router configuration mode, the IPv6 OSPF interface area ID combination assigns interfaces to OSPFv3 areas.

Answer: C

NEW QUESTION 2
TCP traffic is blocked on port 547 between a DHCPv6 relay agent and a DHCPv6 server that is configured for prefix delegation. Which two outcomes with result when the relay agent is rebooted? (Choose two.)

• A. Hosts will not obtain DHCPv6 addresses
• B. The DHCPv6 relay agent will resume distributing addresses
• C. DHCFM3 address conflicts will occur on downstream clients
• D. Routers will not obtain DHCPv6 prefixes.
• E. DHCPv6 clients will be unreachable

Answer: AD

NEW QUESTION 3

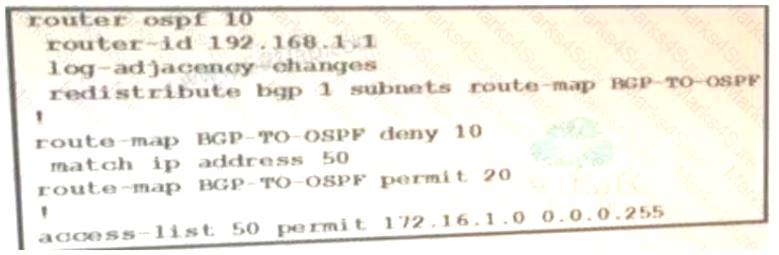

Refer to the exhibit.

Which statement about redistribution from BGP into OSPF process 10 is true?

• A. Network 172.16.1.0/24 is not redistributed into OSPF.
• B. Network 10.10 10.0/24 is not redistributed into OSPF
• C. Network 172.16.1.0/24 is redistributed with administrative distance of 1.
• D. Network 10.10.10.0/24 is redistributed with administrative distance of 20.

Answer: A

NEW QUESTION 4
Which two steps must you perform to allow access to a device when the connection to a remote TACACS+ authentication server fails? (Choose two)

• A. include the local keyword in the AAA configuration
• B. Configure accounting to reference the log of previously authenticated connections
• C. Configure the device to accept Telnet and SSH connections.
• D. Remove the aaa new model command from the global configuration
• E. Configure a local username and password on the device

Answer: BE

NEW QUESTION 5
Which value Identifies VPNs in an EVN environment?

• A. route target
• B. VLAN ID
• C. DLCI
• D. virtual network tag

Answer: D

NEW QUESTION 6
When a new PC is connected to the network, which step must it take first to receive a DHCP address?

• A. It sends a DHCPHELLO message to the DHCP server IP address.
• B. It sends a DHCPREQUEST message to the DHCP server IP address.
• C. It sends a DHCPREQUEST message to 255.255.255.255.
• D. It sends a DHCPDISCOVER message to 255.255.255.255.

Answer: D

NEW QUESTION 7
Which type of message does a device configured with the eigrp stub command send in response to EIGRP queries?

• A. invalid request
• B. unavailable
• C. stuck in active
• D. stub-only
• E. reject
• F. inaccessible

Answer: F

NEW QUESTION 8
Which NAT command do you enter to disable dynamic ARP learning on an interface?

• A. R1(config-if)#ip nat enable
• B. R1(config-if)#ip nat inside
• C. R1(config)#ip nat service
• D. R1(config-if)#ip nat outside
• E. R1(config)#ip nat allow-static-host

Answer: E

NEW QUESTION 9
What from the following can cause an issue for URPF? (this could be single answer or multiple choice) URPF FAIL
Reasons why urpf may fail:

• A. Asymmetric routing
• B. Cef not enabled
• C. Urpf not applied to the traffic source
• D. If it is used as ingress filtering

Answer: A

NEW QUESTION 10
Other than a working EIGRP configuration which component must be the same on all routers for EIGRP authentication key rollover to work correctly?

• A. time
• B. SNMP
• C. passwords
• D. SMTP

Answer: A

NEW QUESTION 11
You are configuring a Microsoft client to call a PPP server using CHAP. Only the client will be authenticated. But the clients password has expired and must be changed. Which ppp server configuration allows the call be completed?

• A. ppp authentication ma-chap-v2
• B. ppp authentication ms-cahp-v2 callin
• C. ppp authentication chap
• D. ppp authentication callin
• E. ppp authentication ms-chap callin

Answer: B

NEW QUESTION 12
A router with default RIPv2 settings loses connectivity to it's next-hop neighbor.
How long downs the router wait before removing the route to the next hop from its route table?

• A. 30 secconds
• B. 60 secconds
• C. 180 secconds
• D. 240 secconds

Answer: D

NEW QUESTION 13
Which feature can automatically assign IP addresses IP addresses in a PPPoE environment?

• A. DHCP
• B. BOOTP
• C. PPP
• D. APPA

Answer: C

NEW QUESTION 14
A network engineer enables OSPF on a Frame Relay WAN connection to various remote sites, but no OSPF adjacencies come up.
Which two actions are possible solutions for this issue? (Choose Two)

• A. Change the network type to point-to-multipoint under WAN interface.
• B. Enable virtual links.
• C. Change the network type to nonbroadcast multipoint access.
• D. Configure the neighbor command under OSPF process for each remote site.
• E. Ensure that the OSPF process number matches among all remote sites

Answer: AD

NEW QUESTION 15
Which two statements about Frame Relay LMI autosense are true on a Router?(Choose two)

• A. It requires the line protocol to be up
• B. it operates when the line is up but the line protocol is down
• C. It requires the LMI type to be explicitly configured
• D. It operates on Frame Relay DTE interfaces
• E. It operates on Frame Relay DCE interfaces

Answer: BD

NEW QUESTION 16
A user is attempting to authentication on the device connected to a TACACS+ server but the server require more information from the user to complete authentication. Which response does the TACACS+ daemon return?

• A. ACCEPT
• B. ERROR
• C. REJECT
• D. CONTINUE

Answer: D

NEW QUESTION 17
What to configure on routes if TACACS+ authentication fails? (Choose two)

• A. Configure local username and password
• B. Include ‘local’ keyword in AAA config

Answer: AB

NEW QUESTION 18
You get a call from a network administrator who tells you that he typed the following into his router: Router(config)#router ospf 1
Router(config-router)#network 10.0.0.0 255.0.0.0 area 0
He tells you he still can’t see any routes in the routing table. What configuration error did the administrator make?

• A. The wildcard mask is incorrect
• B. The OSPF area is wrong
• C. The OSPF process ID is incorrect
• D. The AS configuration is wrong

Answer: A

NEW QUESTION 19
Which address is an IPv6 multicast addreess?

• A. 2002 0 :0: 0 :0 :0 :0: 2
• B. 00020 0 :0:0: 0:0:2
• C. FF02.0.:0 :0 :0:0 :0 :2
• D. FE02 0:0 :0 :0 :0:0:2

Answer: C

NEW QUESTION 20
Which three causes of unicast flooding are true? (Choose three)

• A. excess space in the forwarding table
• B. changes in the STP topology
• C. consistent STP topology
• D. asymmetric routing
• E. symmetric routing
• F. forwarding table overflow

Answer: BDF

NEW QUESTION 21
A network engineer wants to implement an SNMP process for host machines using the strongest security available which command accomplishes this task?

• A. router(confi)#snmp-server-host 172-16-200.225 traps v3
• B. router(confi)#snmp-server-host 172-16-200.225 traps v2c auth
• C. router(confi)#snmp-server-host 172-16-200.225 traps v1
• D. router(confi)#snmp-server-host 172-16-200.225 traps v2c

Answer: A

NEW QUESTION 22
Which two features were added in MSCHAP version 2?(choose 2)

• A. Mutual authentication between peers.
• B. Using the MD5 hash for stronger security
• C. Using three-way handshakes for authentication.
• D. Ability to change an expired password
• E. Backward-compatibility with MSCHAP version 1.

Answer: AD

NEW QUESTION 23

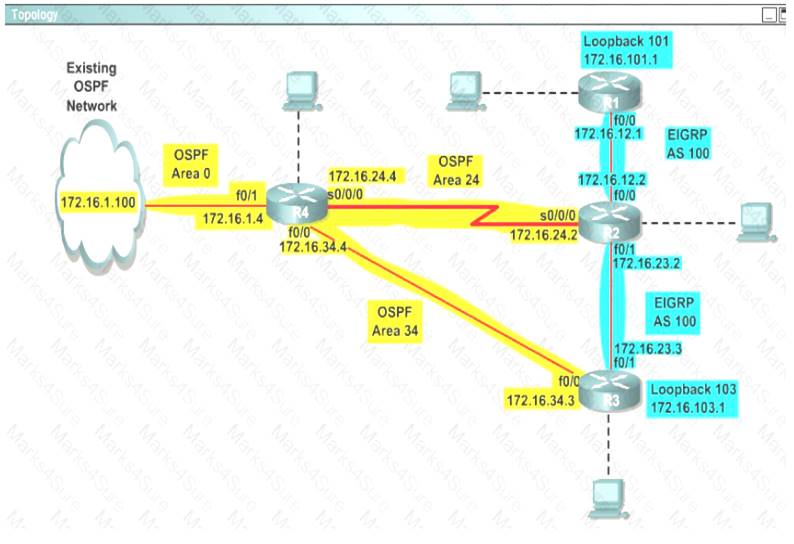

You are a network engineer with ROUTE.com, a small IT company. They have recently merged two organizations and now need to merge their networks as shown in the topology exhibit. One network is using OSPF as its IGP and the other is using EIGRP as its IGP. R4 has been added to the existing OSPF network to provide the interconnect between the OSPF and EIGRP networks. Two links have been added that will provide redundancy.
The network requirements state that you must be able to ping and telnet from loopback 101 on R1 to the OPSF domain test address of 172.16.1.100. All traffic must use the shortest path that provides the greatest bandwidth. The redundant paths from the OSPF network to the EIGRP network must be available in case of a link failure. No static or default routing is allowed in either network.
A previous network engineer has started the merger implementation and has successfully assigned and verified all IP addressing and basic IGP routing. You have been tasked with completing the implementation and ensuring that the network requirements are met. You may not remove or change any of the configuration commands currently on any of the routers. You may add new commands or change default values.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
First we need to find out 5 parameters (Bandwidth, Delay, Reliability, Load, MTU) of the s0/0/0 interface (the interface of R2 connected to R4) for redistribution:
R2#show interface s0/0/0
Write down these 5 parameters, notice that we have to divide the Delay by 10 because the metric unit is in tens of microsecond. For example, we get Bandwidth=1544 Kbit, Delay=20000 us, Reliability=255, Load=1, MTU=1500 bytes then we would redistribute as follows:
R2#config terminal R2(config)# router ospf 1
R2(config-router)# redistribute eigrp 100 metric-type 1 subnets R2(config-router)#exit
R2(config-router)#router eigrp 100
R2(config-router)#redistribute ospf 1 metric 1544 2000 255 1 1500
Note: In fact, these parameters are just used for reference and we can use other parameters with no problem. If the delay is 20000us then we need to divide it by 10, that is 20000 / 10 = 2000)
For R3 we use the show interface fa0/0 to get 5 parameters too
R3#show interface fa0/0
For example we get Bandwidth=10000 Kbit, Delay=1000 us, Reliability=255, Load=1, MTU=1500 bytes
R3#config terminal R3(config)#router ospf 1
R3(config-router)#redistribute eigrp 100 metric-type 1 subnets R3(config)#exit
R3(config-router)#router eigrp 100
R3(config-router)#redistribute ospf 1 metric 10000 100 255 1 1500
Finally you should try to “show ip route” to see the 172.16.100.1 network (the network behind R4) in the routing table of R1 and make a ping from R1 to this network.
Note: If the link between R2 and R3 is FastEthernet link, we must put the command below under EIGRP process to make traffic from R1 to go through R3 (R1 -> R2 -> R3 -> R4), which is better than R1 -> R2 -> R4.
R2(config-router)# distance eigrp 90 105
This command sets the Administrative Distance of all EIGRP internal routes to 90 and all EIGRP external routes to 105, which is smaller than the Administrative Distance of OSPF (110) -> the link between R2 & R3 will be preferred to the serial link between R2 & R4.
Note: The actual OPSF and EIGRP process numbers may change in the actual exam so be sure to use the actual correct values, but the overall solution is the same.

NEW QUESTION 24

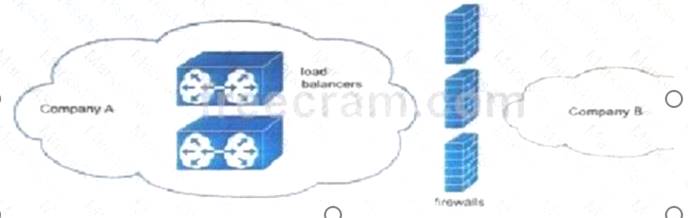

Refer to the exhibit.
Which networking challenge is the most important issue to address to enable optimal communication between the networks at Company A and Company B?

• A. IPv4 MTU
• B. IPv4 fragmentation
• C. UDP latency
• D. unicast flooding
• E. asymmetric routing

Answer: E

NEW QUESTION 25
Which functions are included in the two-message rapid exchanged that a DHCPV6 can receive from a server?

• A. advertise and request
• B. solicit and reply
• C. solicit and request
• D. advertise and reply

Answer: B

NEW QUESTION 26
Under which circumstance can TCP starvation occur?

• A. when DNS and TFTP traffic are transmitted on the same link
• B. when TCP traffic is blocked by an ACL
• C. when UDP traffic is processed in a policy-map before TCP traffic
• D. when Http and Https traffic are transmitted on the same link
• E. when TCP and UDP traffic are mixed in the same class of service

Answer: E

NEW QUESTION 27

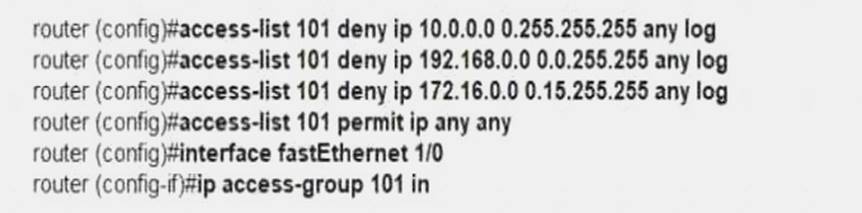

What does the following access list, which is applied on the external interface FastEthernet 1/0 of the perimeter router, accomplish?

• A. It prevents private internal addresses to be accessed directly from outside
• B. It filters incoming traffic from private address ranges 10 0 0 0-10 0 0 255,172 16.0 0-172.31.255255.192 168 0 0-192 168 255 255 and logs any intrusion attempts
• C. It prevents the internal network from being used in spoofed denial of service attacks and logs any exit to the Internet
• D. It filters incoming traffic from private addresses in order to prevent spoofing and logs any intrusion attempts

Answer: B

NEW QUESTION 28
Which two features does RADIUS combine?(Choose two)

• A. authorization
• B. authenticate
• C. ssH
• D. accounting
• E. Telnet

Answer: AB
