Renovate 300-075 Answers 2021

NEW QUESTION 1
What is an advantage of TEHO?

• A. TEHO implemented with ISRs eliminates PSTN toll charges.
• B. TEHO implemented with ISRs can reduce PSTN toll charges.
• C. TEHO implemented with AAR reduces toll charges.
• D. TEHO implemented with CFUR reroutes calls.

Answer: B

NEW QUESTION 2

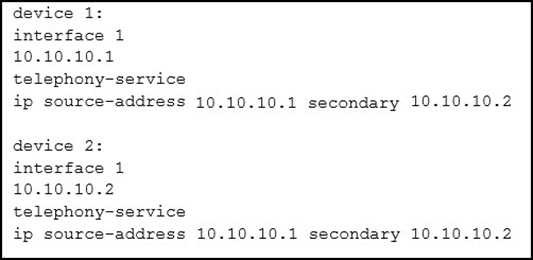

Refer to the exhibit.

Which option describes the effect of this configuration?

• A. It implements Cisco United CME redundancy.
• B. It configures a standby Cisco Unified E.
• C. It configures failover.
• D. It implements Cisco IOS redundancy.
• E. It creates dial peers.
• F. It implements HSRP.

Answer: A

NEW QUESTION 3
Which two statements regarding IPv4 Static NAT address 209.165.200.230 has been configured on a
VCS Expressway are true? (Choose two.)

• A. The Advanced Networking or Dual Network Interfaces option key has been installed.
• B. VCS rewrites the Layer 3 source address of outbound SIP and H.323 packets to 209.165.200.230.
• C. VCS applies 209.165.200.230 to outbound SIP and H.323 payload messages.
• D. With static NAT enabled on the LAN2 interface, VCS applies 209.165.200.230 to outbound H.323 and SIP payload traffic exiting the LAN1 interface.

Answer: AC

NEW QUESTION 4
What is the default DSCP/PHB for Tele Presence video conferencing packets in Cisco Unified Communications Manager?

• A. EF/46
• B. CS6/48
• C. AF41/34
• D. CS3/24
• E. CS4/32

Answer: C

NEW QUESTION 5
Which type of search message appears in the Cisco TelePresence Video Communication Server search history page when it receives a H.323 call from a RAS-enabled endpoint that originates from an external zone?

• A. ARQ
• B. SETUP
• C. LRQ
• D. INVITE
• E. OPTIONS

Answer: C

NEW QUESTION 6
Where do you specify the device mobility group and physical location after they have been configured?

• A. phones
• B. DMI
• C. device mobility CSS
• D. device pool
• E. MRGL
• F. locale

Answer: D

NEW QUESTION 7
Which two options are valid service parameter settings that are used to set up proper video QoS
behavior across the Cisco Unified Communications Manager infrastructure? (Choose two.)

• A. DSCP for Video Calls when RSVP Fails
• B. Default Intraregion Min Video Call Bit Rate (Includes Audio)
• C. Default Interregion Max Video Call Bit Rate (Includes Audio)
• D. DSCP for Video Signaling
• E. DSCP for Video Signaling when RSVP Fails

Answer: AC

NEW QUESTION 8

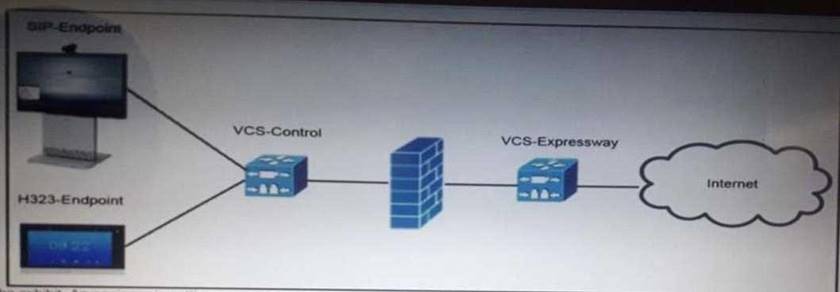

Refer to the exhibit.

An engineer is settings up a new deployment and wants to use the Cisco VCS Control as a gateway for SIP and H.323 endpoints. Which Cisco VCS configuration step must be performed to allow on-set and off-set calling?

• A. Set the H.323mode On
• B. Set the IP mode On.
• C. Set the Gatekeeper Auto Discover mode On
• D. Set the Interworking mode On.

Answer: B

NEW QUESTION 9
Which three options are Cisco VCS zone types? (Choose three.)

• A. H323
• B. DNS
• C. traversal client
• D. gatekeeper
• E. neighbor
• F. SIP

Answer: BCE

NEW QUESTION 10
Scenario:
There are two call control systems in this item. The Cisco UCM is controlling the DX650, the Cisco Jabber for Windows Client, and the 9971 Video IP Phone.
The Cisco VCS and TMS control the Cisco TelePresence MCU, and the Cisco Jabber TelePresence for Windows.

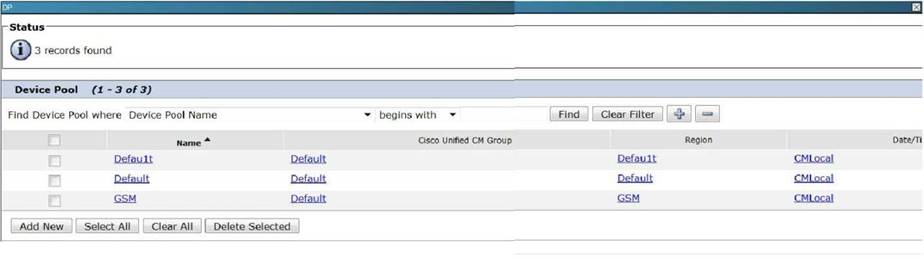

DP:

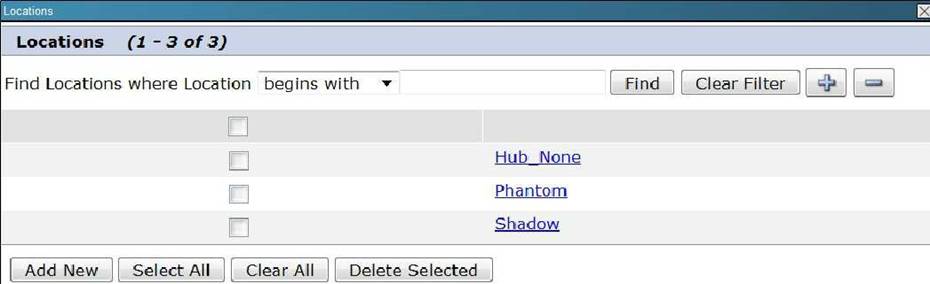

Locations:

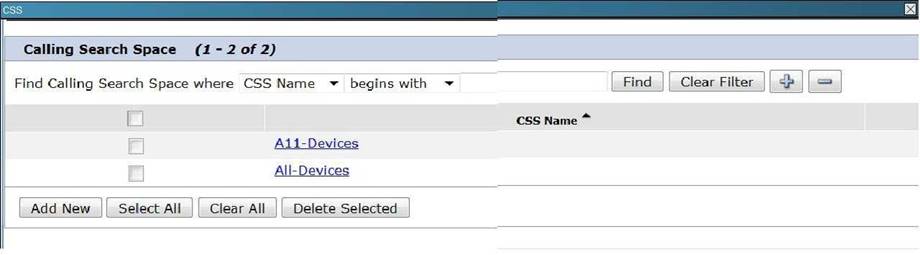

CSS:

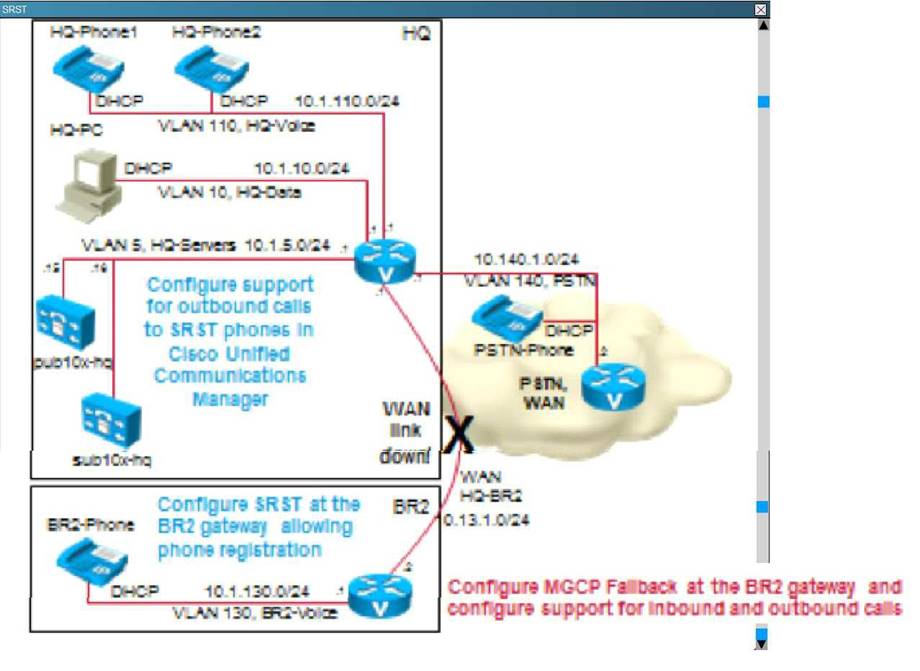

SRST:

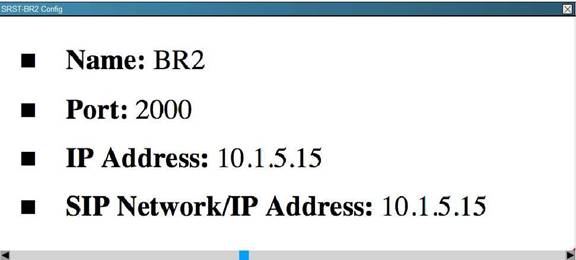

SRST-BR2-Config:

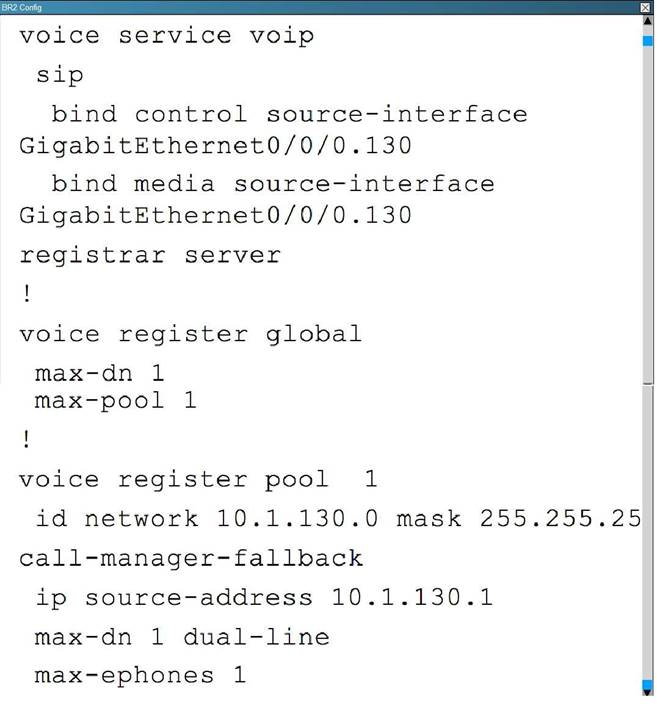

BR2 Config:

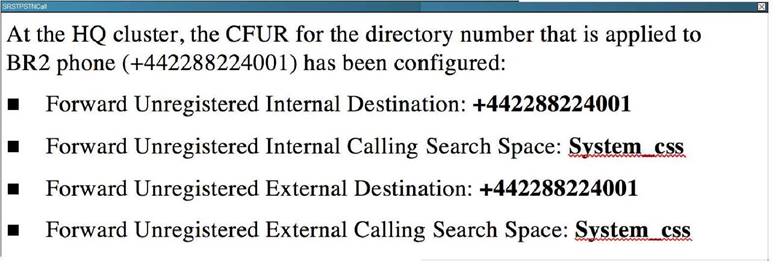

SRSTPSTNCall:

After configuring the CFUR for the directory number that is applied to BR2 phone (+442288224001),
the calls fail from the PSTN. Which two of the following configurations if applied to the router, would remedy this situation? (Choose two.)

• A. dial-peer voice 1 potsincoming called-number 228822… direct-inward-dialport 0/0/0:15
• B. dial-peer voice 1 potsincoming called-number 228822… direct-inward-dialport 0/0/0:13
• C. voice translation-rule 1 rule 1/˄228821....S//+44&/ exit!voice translation-profile pstn-in translate called 1!voice-port 0/0/0:15translation-profile incoming pstn-in
• D. voice translation-rule 1 rule 1/˄228822....S//+44&/ exit!voice translation-profile pstn-in translate called 1!voice-port 0/0/0:15translation-profile incoming pstn-in
• E. The router does not need to be configured.

Answer: AD

NEW QUESTION 11
Which device must be responsible for properly making network traffic when a cisco ip phone is
connected to a cisco switch?

• A. core layer switch
• B. access layer switch
• C. branch router
• D. Cisco IP phone

Answer: B

NEW QUESTION 12
Which two steps must you take when implementing TEHO in your environment? (Choose two.)

• A. Implement local failover.
• B. Implement SIP to POTS.
• C. Load-balance PRI connections.
• D. Load-balance route lists within the cluster.
• E. Implement ICT trunks to remote locations.
• F. Implement centralized failover.

Answer: AD

NEW QUESTION 13
An engineer is configuring a SIP profile for Cisco VCS SIP trunk on Cisco Unified Communications
Manager and enables the option “Use Fully Qualified Domain Name” in SIP Requests. Which result is achieved by enabling this option?

• A. Resolve FQDN using DNS type SRV record.
• B. Resolve FQDN using DNS type A record.
• C. Ensure FQDN is used in SIP Identity header.
• D. Ensure FQDN is used in SIP Request header.

Answer: C

Explanation:

Reference: http://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/8_6_1/ccmcfg/bccm- 861cm/b06siprf.html

NEW QUESTION 14
Where in the Cisco Unified Communications Manager Administration GUI must an engineer navigate
to configure Cisco Inter-Cluster Lookup Service authentication in communication manager?

• A. Advanced Features> ILS Configuration> Roles
• B. Call Routing > Intercluster Directory URI > Intercluster Directory URI configuration
• C. Call Routing > Intercluster Directory URI
• D. Advanced Features > ILS Configuration

Answer: A

NEW QUESTION 15
Which statement is true when considering a Cisco VoIP environment for regional configuration?

• A. G.711 requires 128K of bandwidth per call.
• B. G.729 requires 24K of bandwidth per call.
• C. The default codec does not matter if you have defined a hardware MTP in your Cisco Unified Communications Manager environment.
• D. To deploy a Cisco H.323 gatekeeper, you must configure MTP resources on the gatekeeper and only use G.711 between regions.

Answer: C

NEW QUESTION 16
Which two options are dial-plan challenges in a multisite Cisco Unified Communication Manager
deployment?

• A. use of same length directory numbers all over the network
• B. use of +E164 directory numbers and extensions for phones and services
• C. telephony service provider requirements on number format and types
• D. use of MGCP gateways instead of SIP trunks
• E. use of same DID numbers in multiple sites

Answer: AE

NEW QUESTION 17
Assume that local route groups are configured. When an IP phone moves from one device mobility
group to another, which two configuration components are not changed? (Choose two.)

• A. IP subnet
• B. user settings
• C. SRST reference
• D. region
• E. phone button settings

Answer: BE

NEW QUESTION 18
Which statement about the host portion format in Cisco Unified Communications Manager URI
dialing is false?

• A. The host portion cannot start or end with a hyphen.
• B. The host portion is not case sensitive.
• C. The host portion accepts characters a-z, A-Z, 0-9, hyphens, and periods.
• D. The host portion can have two periods in a row.

Answer: D

NEW QUESTION 19
In which two locations can you verify that a phone has a standby Cisco Unified communications
manager? (Choose two)

• A. phone webpage
• B. RTMT
• C. Cisco Unified Serviceability
• D. phone menu

Answer: AD

NEW QUESTION 20
How is VCS connected to Cisco Unified Communications Manager?

• A. Add Cisco Unified CM to the configuration of VCS Control.
• B. Create a SIP trunk between VCS Express and Cisco Unified CM.
• C. Create a SIP trunk between Cisco Unified CM and VCS Control.
• D. Configure VCS Control as a gateway in Cisco Unified CM.
• E. Create a H.225 trunk between VCS Control and Cisco Unified CM.

Answer: C

NEW QUESTION 21
Which command is needed to utilize local dial peers on an MGCP-controlled ISR during an SRST
failover?

• A. ccm-manager fallback-mgcp
• B. telephony-service
• C. dialplan-pattern
• D. isdn overlap-receiving
• E. voice-translation-rule

Answer: A

NEW QUESTION 22
Which two options are requirements for hardware MTP on Cisco IOS routers? (Choose two.)

• A. the same audio codec on both legs of the call
• B. an FXO card
• C. a binding IP address
• D. a hardware transcoder
• E. DSP resources
• F. a T1 card

Answer: DE

NEW QUESTION 23
Which DSCP value and PHB equivalent are the default for audio calls?

• A. 34 and AF41
• B. 32 and AF41
• C. 32 and CS4
• D. 46 and EF

Answer: D

NEW QUESTION 24
Which three commands can be used to verify SRST fallback mode? (Choose three.)

• A. show telephony-service all
• B. show telephony-service ephone-dn
• C. show telephony-service ephone
• D. show telephony-service voice-port
• E. show telephony-service tftp-bindings

Answer: ABC

NEW QUESTION 25
Which feature can be used to manipulate the calling party numbers of internal calls, post digit anlusis?

• A. called party transformation pattern
• B. translation pattern
• C. calling party transformation pattern
• D. external phone mask

Answer: C

NEW QUESTION 26
......
