NEW QUESTION 1

You are installing an HPE ProLiant server in a rack at a customer site. The customer’s facility is in a high-voltage utility service area, and they want to be certain that the power supply is supported.
Which ProLiant feature addresses the customer’s concern?

• A. ProLiant servers can be configured for 380 – 400V AC in low-line and high-line utility service areas.
• B. ProLiant servers support 240 V DC power supplies because components in a direct current line are less prone to failure.
• C. Rack-mountable HPE servers ship with 110 V DC power supplies because direct current is less expensive for a low-line utility service over short distances.
• D. ProLiant servers include auto-sensing power supplies with a power input range of 100-240 VAC, so they can be used globally.

Answer: D

NEW QUESTION 2

Match the feature to the lowest iLO5 license in which it is available

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Last - last 3-2
1-1
3-3

NEW QUESTION 3

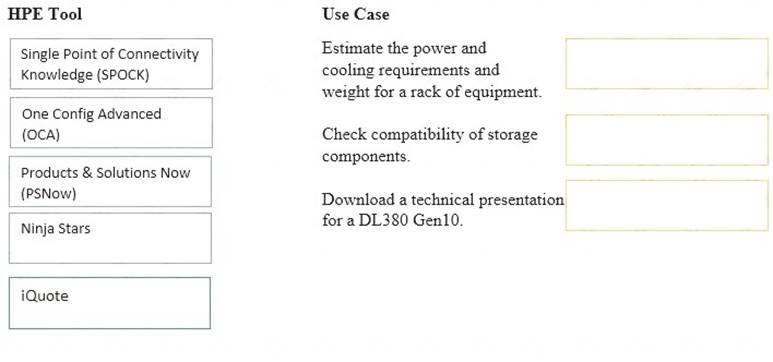

Match the HPE Tool with its use case. Select all that apply.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
One Config Advanced (OCA) - Estimate the power and cooling requirements and weight for a rack of equipment
Single Point of Connectivity Knowledge (SPOCK) - Check compatibility of storage components Products and solutions Now (PSNow) - Download a technical presentation for a DL380 Gen10

NEW QUESTION 4

A customer has implemented an HPE ProLiant server with internal storage and needs to monitor the array health status.
Which management application can the customer use to discover errors quickly and minimize the possible downtime?

• A. Insight Online
• B. Smart Storage Administrator
• C. Intelligent Management Center
• D. InfoSight

Answer: B

NEW QUESTION 5

Exhibit:

Which HPE ProLiant Server meets the customer's requirements?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: B

NEW QUESTION 6

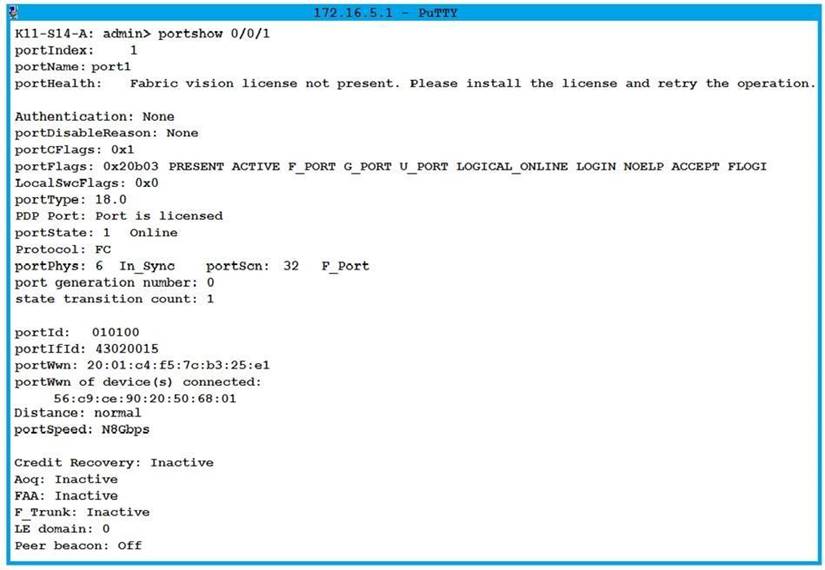

Refer to the exhibit.

The information shown is displayed for a Nimble array you are installing. The customer’s administrator has asked you for the speed at which the Nimble ports are connecting to their SAN switches, and you have run the command shown to determine the number of gigabits per second used by this port connection.
What speed does the exhibit indicate is in use?

• A. 18
• B. 32
• C. 6
• D. 8

Answer: C

NEW QUESTION 7

What is the most important difference between an HPE ProLiant DL380 Gen10 server and an HPE ProLiant DL385 Gen10 server?

• A. Disk Drives
• B. Power Supplies
• C. Network Cards
• D. Processors

Answer: A

NEW QUESTION 8

A customer is planning to deploy a branch office server rack. The environment will have the following requirements:
Single rack with 20 HPE ProLiant DL360 Gen10 Servers. Each Server will have 6 x 10G SFP+ Ports.
Each Server will have a dedicated iLO port.
The customer requires that only two switches be used. The customer requires separate control planes.
Which switch configuration can meet these requirements?

• A. 2 x HPE 5945 Series switch with IRF
• B. 2 x Aruba 8325 Series switches with VSX
• C. 2 x HPE 5945 Series switches standalone
• D. 2 x Aruba 8325 Series switches with backplane stacking

Answer: A

NEW QUESTION 9

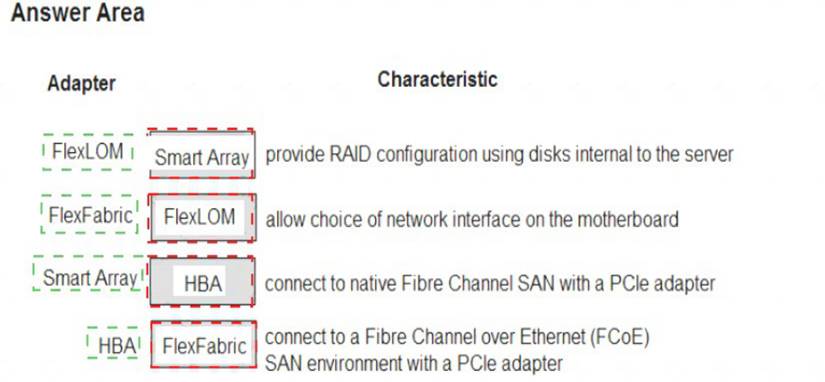

Match each adapter to its characteristic.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 10

A fast-growing customer with a NAS-based storage solution is evaluating Fibre Channel storage for their VMware environment.
How would this customer benefit from adding 16 Gb Fibre Channel storage to their environment? (Choose two.)

• A. increased performance
• B. simplified connectivity
• C. increased simplicity
• D. reduced latency
• E. simplified administration

Answer: AD

NEW QUESTION 11

You are troubleshooting an HPE ProLiant rack-mount server. You need to collect event data from the server, even when it is not operational.
Which tool should you use?

• A. Insight Online
• B. InfoSight
• C. OS Event Viewer
• D. Integrated Management Log

Answer: A

NEW QUESTION 12

A customer is planning an upgrade to their network. They need to combine multiple existing switches into one virtual device.
Which technology should the customer configure on their existing switches?

• A. Multi-chassis Link Aggregation (MLAG)
• B. Link Aggregation Control Protocol (LACP)
• C. Rapid Spanning Tree Protocol (RSTP)
• D. Intelligent Resilient Framework (IRF)

Answer: D

NEW QUESTION 13

A customer needs to purchase a redundant pair of SAN switches for their virtualization environment. The customer requires a total of eight 16 Gbps FC storage ports and eighteen 8 Gbps FC host attachments.
Which switch meets the customer’s needs at the lowest cost?

• A. HPE StoreFabric SN6010C 48-port Switch
• B. HPE StoreFabric SN6010C 12-port Switch with an On Demand Port Activation License
• C. HPE 8/24 SAN Switch 16-port Switch with an 8-port Upgrade License
• D. HPE 8/24 SAN Switch 16-port Switch

Answer: B

NEW QUESTION 14

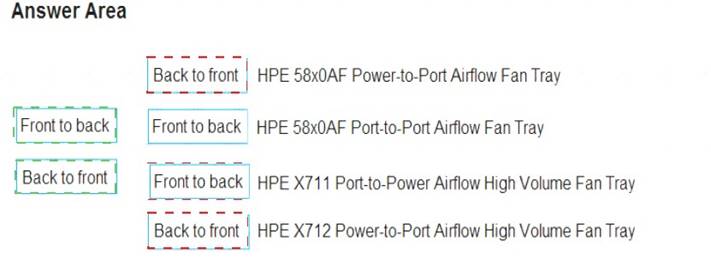

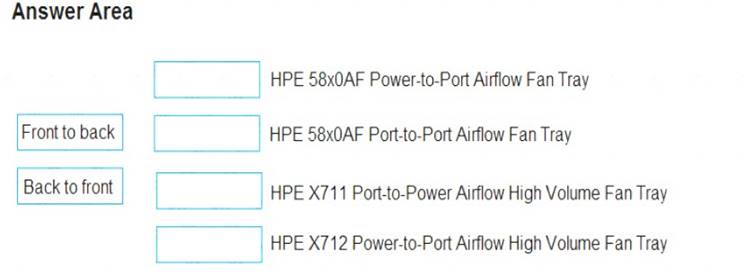

A customer is considering an upgrade of their networking infrastructure with HPE FlexFabric 5940 series switch.
Match the fan tray option with the airflow direction.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 15

You are working on a server, and you notice that the blue UID light on the server is flashing slowly. What does this indicate?

• A. The host server is in standby mode
• B. The system is being managed remotely
• C. The host has rebooted and is performing POST actions
• D. The system is experiencing power issues

Answer: B

NEW QUESTION 16

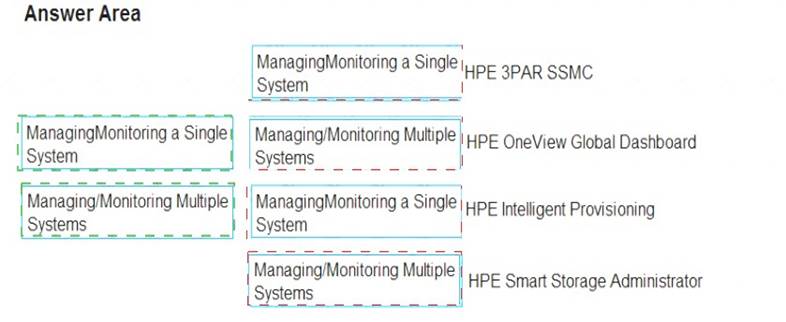

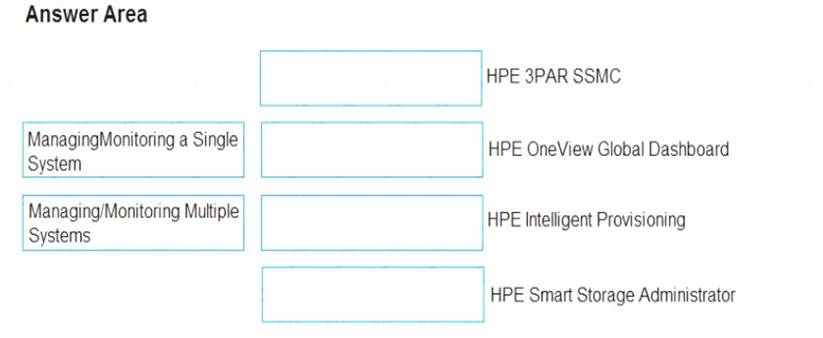

Indicate whether each management feature manages or monitors a single system or multiple systems.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 17

Which component of HPE iLO provides continuous monitoring of more than 1600 parameters?

• A. insight Diagnostics
• B. Active Health System
• C. Insight Remote Support
• D. Silicon root of trust

Answer: B

NEW QUESTION 18

A customer needs NFS access on a fiber channel array.
What must be included in the solution to meet this requirement?

• A. StoreEver
• B. Storage File Controller
• C. Smart Array Controller
• D. StoreOnce RMC

Answer: B

NEW QUESTION 19

A customer wants to install an HPE Proliant server that has a single dual port 10Gb NIC.
Which NIC feature should you introduce to allow each 10Gb port to be seen as four individual adapters in the operating system?

• A. NPAR
• B. RoCE
• C. FCoE
• D. RDMA

Answer: A

NEW QUESTION 20

What is the correct cable type to use when connecting a pair of switches using Long Range (LR) Transceivers?

• A. Direct Attach Cable (DAC)
• B. Twin-Ax
• C. Single Mode Fiber
• D. Multi-mode Fiber

Answer: C

Explanation:
Single-mode uses a single relatively straight beam of light, transmitted directly through a core of glass (oroccasionally plastic) that's usually 50 microns across. Single-mode accommodates large power levels, and isalmost exclusively used for Long Range (LR) applications.
