Cisco 400-201 Free Practice Questions 2021

NEW QUESTION 1
How many messages does Internet Key Exchange use to negotiate SA characteristics when it runs in aggressive mode?

• A. 3
• B. 4
• C. 5
• D. 2
• E. 6

Answer: A

NEW QUESTION 2
A network architect is tasked to design and deploy multicast in a service provider core. There is a requirement to have two PIM RP routers for PIM-SM distribute mode. What can the network architect do to satisfy this requirement?

• A. Set two RPs with same priority.
• B. Set two RPs, one with high priority and the other with low priority.
• C. Set one RP as the main RP and another as a backup RP.
• D. Set the RP-BSR method with one high-priority RP and one low-priority RP.

Answer: D

NEW QUESTION 3
A network engineer receives a request to tunnel Frame Relay traffic for DCLI 100 over the MPLS cloud while maintaining circuit information. Which solution meets this requirement?

• A. L2VPN
• B. L3VPN
• C. VPLS
• D. GRE

Answer: A

NEW QUESTION 4
Which statement about Software Maintenance Upgrade is true?

• A. CRS-1 SMU can be applied to a different platform, and vice versa.
• B. SMU is an executable code for running a process or libraries that are shared between the different processes.
• C. SMUs for each release are individually downloadable from Cisco.com and come in the form of a tar ball.
• D. SMUs provide software fixes for critical network down and qualification blocking issue
• E. Therefore, every software defect has a corresponding SMU.
• F. SMUs are release-specifi
• G. If an issue affects multiple platforms or releases, an SMU is built separately for each release and each platform.

Answer: E

Explanation: 1.4. SP high end product
SMUs for each release are individually downloadable from Cisco.com, whereas the bootable files and optional PIEs come in the form of a tarball.
SMUs are release specific. If an issue affects multiple platforms or releases, an SMU will be separately built for each release and each platform depending on the mission-critical need.
A CRS-1 SMU cannot be applied to a different platform, and vice versa.
SMUs provide software fixes for critical network-down and qualification-blocking issues. Therefore, every software defect will not have a corresponding SMU.

NEW QUESTION 5
What are the benefits of using TCAM technology in high-end routing products? (Choose two.)

• A. Simplified configuration
• B. Lower maintenance cost
• C. Deterministic performance
• D. Longer uptime
• E. Lower power consumption

Answer: CD

NEW QUESTION 6
Which two Any Transport over MPLS (AToM) traffic encapsulations require the use of a control word? (Choose two)

• A. HDLC
• B. ATM AAL5
• C. PPP
• D. Ethernet VLAN
• E. Frame Relay

Answer: BE

Explanation: AToM Header
The AToM header is 4 bytes (control word). The control word is optional for Ethernet, PPP, HDLC, and cell relay transport types. However, the control word is required for Frame Relay, and ATM AAL5 transport types.

NEW QUESTION 7
A service provider has a requirements to deploy a virtual router in its network to handle high-performance data plane service up to 20Gbps. Which Cisco solution fulfills this requirement?

• A. Cisco 7600
• B. Cisco ASR 9000
• C. Cisco NCS 6000
• D. Cisco CSR 1000v
• E. Cisco nexus 9000v

Answer: B

NEW QUESTION 8
An ISP provides DSL services to home customers. Each customer is given a username and a password. The ISP RADIUS server is configured to send a challenge to its clients along with the server hostname. Which two protocols should be used to deliver this service? (Choose two.)

• A. PPP
• B. PPPoE
• C. PAP
• D. CHAP
• E. HDLC

Answer: BD

NEW QUESTION 9
On Cisco IOS devices, which IS-IS feature reduces the convergence time for prefixes designated as high priority?

• A. iSPF
• B. advertise passive only
• C. prefix prioritization
• D. Fast-Forwarding
• E. Route tagging

Answer: E

NEW QUESTION 10

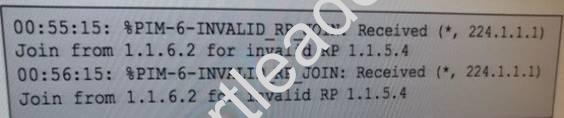

Refer to the exhibit. A router CE_RP is configured as a rendezvous point in an IPv4 multicast domain. What is the root cause of this issue?

• A. A PIM neighbor is sending a PIMv6 message to CE_RP, however IPv6 multicast is not enabled on this router
• B. The multicast application from the 1.1.5.4 source is using a reserved IPv4 multicast address
• C. The PIM adjacency between CE_RP and the downstream router is down
• D. A downstream PIM router sent a join message, which CE_RP does not want to accept

Answer: D

NEW QUESTION 11
A network operator is designing a BGP traffic engineering policy that uses the MED attribute to influence outbound traffic. This policy prefers routes that are received from upstream peers with a lower MED. All other higher preference BGP attributes values are equal. Which Cisco IOS BGP command enables this functionality?

• A. Bgp always-compare-med
• B. Bgp bestpath med-confed
• C. Bgp deterministic-med
• D. Bgp bestpath med missing-as-worst

Answer: A

NEW QUESTION 12
In Cisco IOS XR Software Multicast Routing Implementation, which three features are supported in IPv6 on Cisco CSR routers? (Choose three.)

• A. Multicast NSF
• B. PIM-SSM
• C. OOR handling
• D. Aggregation multicast
• E. Integrated multicast
• F. PIM-Bidirectional

Answer: ABF

NEW QUESTION 13
DRAG DROP

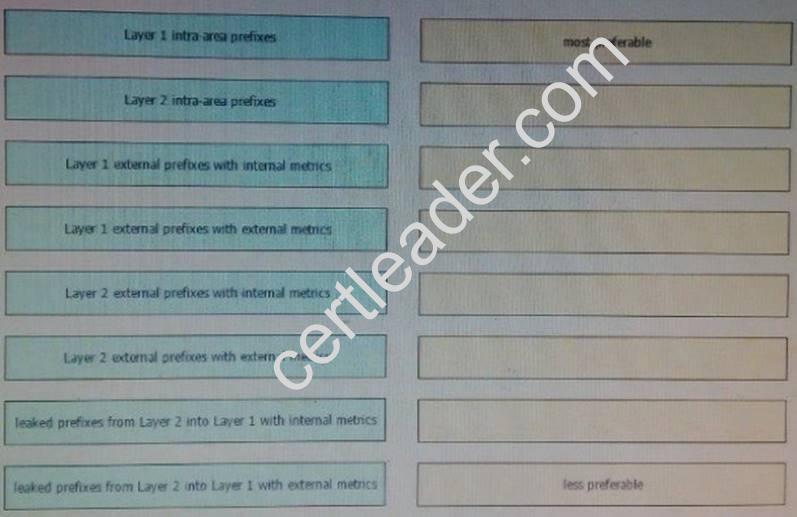

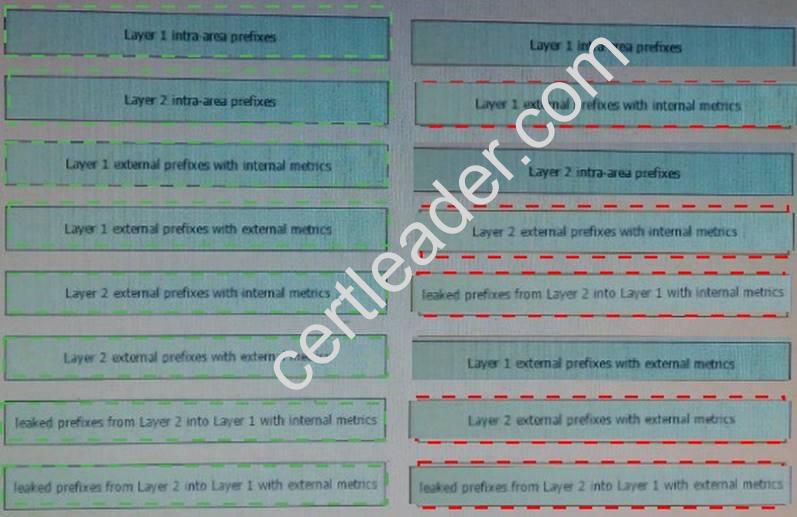

Drag and drop the IS-IS prefix type on the left onto the correct order from the most preferable(top) to the least preferable (bottom)

Answer:

Explanation:

NEW QUESTION 14
A network has a single exit and is using a default route An operator is worried about denial of service at the network border Which unicastRPF check mode must the operator apply at the border for optimal protection?

• A. loose mode with allow self ping
• B. loose mode
• C. strict mode with allow-self-ping
• D. strict mode with allow -default option
• E. strict mode

Answer: E

NEW QUESTION 15
DRAG DROP

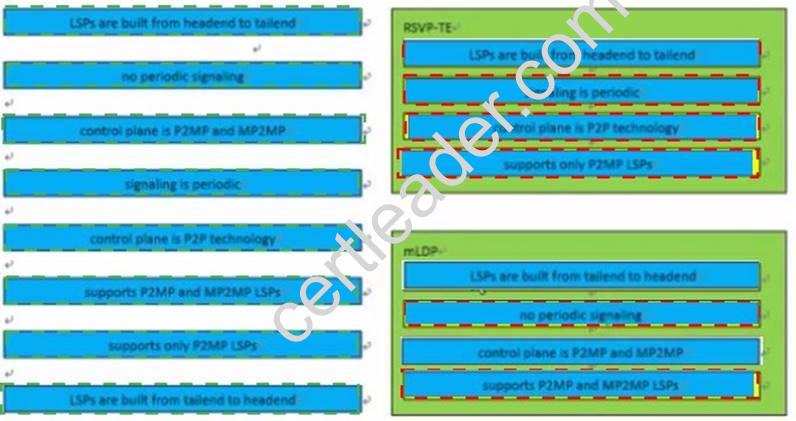

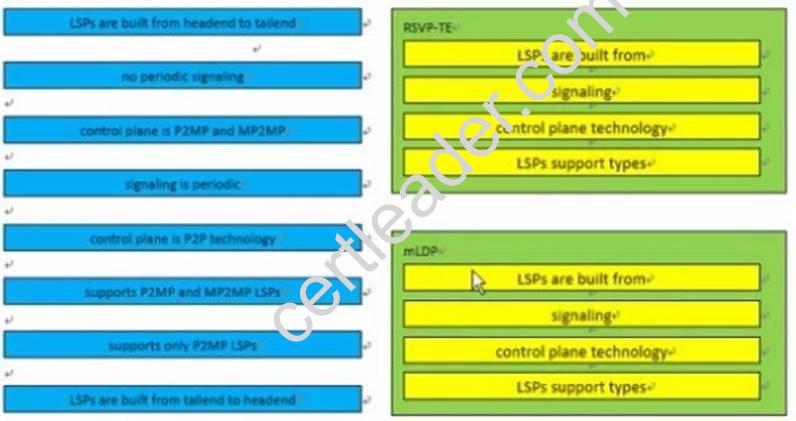

Drag and drop the RSVP-TE and mLDP characteristic on the left onto the corrct definition on the right

Answer:

Explanation:

NEW QUESTION 16
How many content definitions does CSG allow?

• A. 40
• B. 400
• C. 4000
• D. 40,000

Answer: C

Explanation: CISCO CSG CONFIGURATION LIMITS
• 256 total virtual LANs (client and server)
• 4000 content definitions
• 1024 services
• 16,000 access control list (ACL) items
• Up to six Cisco CSGs and/or CSMs can be installed in a Cisco Catalyst 6500 Series or Cisco 7600 Series chassis

NEW QUESTION 17
Which Cisco IOS command must be applied to create a multiprotocol VRF?

• A. ip vrf
• B. ip vrf forwarding
• C. vrf definition
• D. vrf downgrade-cli
• E. vrf forwarding

Answer: C

NEW QUESTION 18
What is the effect of changing DMT interleaved delay from 3 milliseconds to 15 milliseconds?

• A. Latency remains the same, but throughput is decreased.
• B. Latency remains the same, but error correction effectives may also be reduced.
• C. Latency is increased, but faster error correction occurs.
• D. Fewer ATM PVCs can be provisioned on DSL line.

Answer: C

NEW QUESTION 19
DRAG DROP

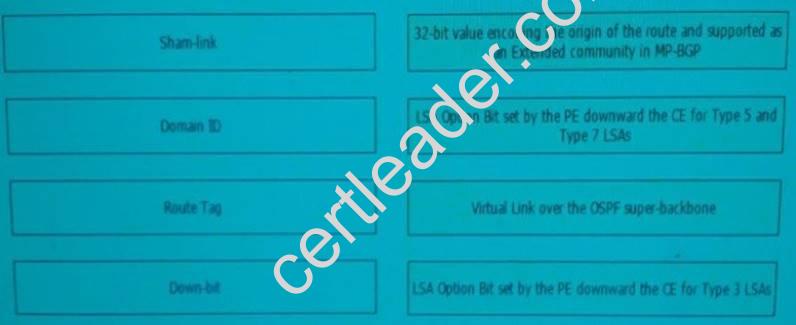

Drag and drop the OSPF PE-CE components on the left onto correct description on the right

Answer:

Explanation:
