NEW QUESTION 1
Which entity is a standard component used for authentication by SAML 2.0?

• A. identity provider
• B. session broker
• C. Internet service provider
• D. client access server

Answer: A

NEW QUESTION 2

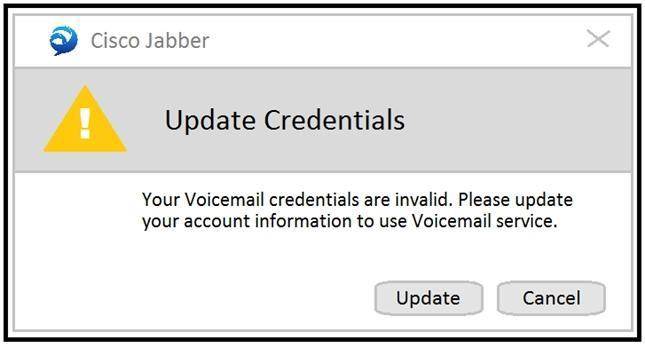

Refer to the exhibit.

Which action allows a remote Cisco Jabber user utilizing Mobile and Remote Access to automatically log in to a Cisco Unity Connection voicemail box via OAuth?

• A. Add CUCM under System Settings > Authz Servers in Cisco Expressway-E.
• B. Add CUCM under System Settings > Authz Servers in Cisco Expressway-C.
• C. Add CUCM under System Settings > Authz Servers in Cisco Unity.
• D. Add CUCM under System Settings > Authz Servers in Cisco Unity Connection.

Answer: D

Explanation:
Reference: https://community.cisco.com/t5/unified-communications/jabber-mra-unity-voice-mail-integration-issue/td-p/3195653

NEW QUESTION 3
Which DNS record is used for on-premises service by Jabber clients?

• A. _collab-edge._tcp.<domain> SRV record
• B. _cisco-uds._tls.<domain> SRV record
• C. _cisco-uds._tcp.<domain> SRV record
• D. <tftp server FQDN> A record

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/Windows/9_7/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide/CJAB_BK_C606D8A9_00_cisco-jabber-dns-configuration-guide_chapter_010.html

NEW QUESTION 4
Which two methods does Cisco Jabber use for contact searching in an on-premises deployment model? (Choose two.)

• A. HTTP
• B. XMPP
• C. UDS
• D. LDAP
• E. SIP

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/presence.html

NEW QUESTION 5
An engineer is checking the Cisco Unified Communications Manager and Cisco Unity Connection integration and presses the Message button on a phone to check the voicemail. Which action does Cisco Unified CM take?

• A. Cisco Unified CM looks up the voicemail pilot configured to dial.
• B. Cisco Unified CM routes the configured hunt pilot to Unity Connection.
• C. Cisco Unified CM looks up the hunt pilot configured to dial.
• D. Cisco Unified CM sends an AXL query to Unity Connection.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/9_1_1/ccmsys/CUCM_BK_C5565591_00_cucm-system-guide-91/CUCM_BK_C5565591_00_cucm-system-guide-91_chapter_011110.html

NEW QUESTION 6

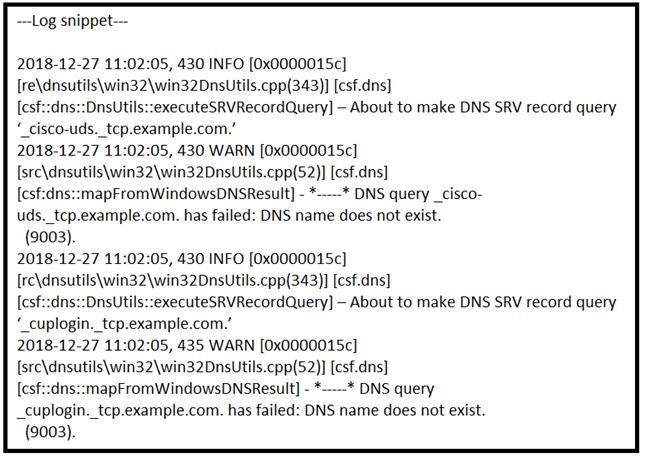

Refer to the exhibit.

Troubleshooting an internal Jabber login issue and you see this logging snippet from the Jabber PRT file. You already checked that the Jabber client has a connection to the correct DNS server. Which DNS record is missing for service discovery of Cisco Unified Communications Manager for the login process to proceed further?

• A. A record for the Cisco Unified Communications Manager
• B. SRV record _cisco-uds._tcp.example.com
• C. A record _cuplogin._tcp.example.com
• D. SRV record _cuplogin._tcp.example.com

Answer: D

NEW QUESTION 7
What prevents toll fraud on voicemail ports?

• A. IP address trusted list on the PSTN gateway
• B. CSS
• C. Block OffNet to OffNet Transfer service parameter
• D. FAC

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/119337-technote-cuc-00.html

NEW QUESTION 8

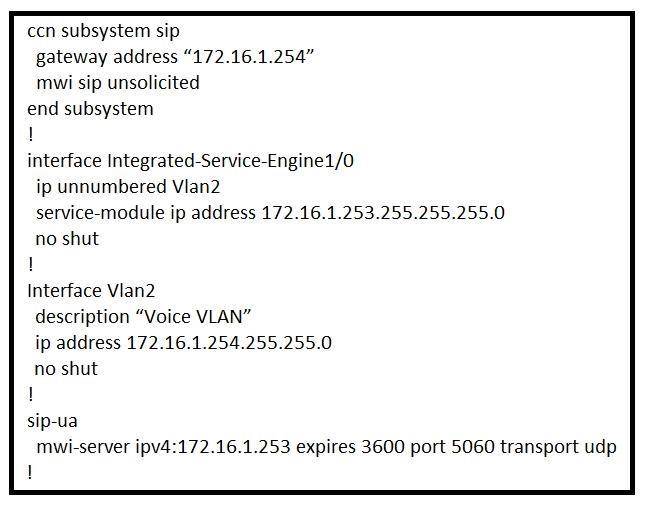

Refer to the exhibit.

A collaboration engineer has integrated Cisco Unity Express with Cisco Unified Communications Manager Express and is experimenting with the MWI feature. With the current configuration, no MWI change occurs when leaving new messages or after playing new messages. Which two changes are needed to correct the configuration? (Choose two.)

• A. ccn subsystem sip mwi sip outcall
• B. ccn subsystem sip mwi envelop-info
• C. sip-ua no mwi- servermwi-server ipv4:172.16.1.254 expires 3600 port 5060 transport udp
• D. ccn subsystem sip mwi sub-notify
• E. sip-ua no mwi-servermwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport tcp notify
• F. sip- ua no mwi-server mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp unsolicited

Answer: AF

NEW QUESTION 9
Which CLI command is used to collect traces from the Cisco Presence engine for seven days?

• A. file build log cisco_presence_engine 7
• B. file build log cisco_presence 168
• C. file build log presence_engine 7
• D. file build log presence_engine 168

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/configAdminGuide/12_0_1/cup0_b_config-admin-guide-imp-1201/cup0_b_config-admin-guide-imp-1201_chapter_010101.html

NEW QUESTION 10
Which function of the Cisco IM and Presence high availability solution is true?

• A. When the server has been restored to a normal state, user sessions remain on the backup server.
• B. When an event takes place, the end user sessions are not moved from the failed server to the backup.
• C. When the server has been restored, the server automatically fails back.
• D. When a high availability event takes place, the end user sessions are moved from the failed server to the backup.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html

NEW QUESTION 11
Which service must be activated on Cisco Unity Connection to utilize LDAP synchronization?

• A. Cisco Tomcat
• B. Cisco Sync Agent
• C. Cisco DirSync
• D. Cisco RIS Data Collector

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/administration/guide/10xcucsagx/10xcucsag120.html

NEW QUESTION 12
Which two protocols does the Cisco IM Presence service use to federate with external domains? (Choose two.)

• A. XMPP
• B. SNMP
• C. SIP
• D. SCCP
• E. SMPP

Answer: AC

Explanation:
Reference: https://www.cisco.com/c/dam/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/11_5_1/cup0_b_interdomain-federation-guide-imp-115.pdf

NEW QUESTION 13
What is the primary mechanism in Cisco Unity Connection that is used for toll fraud prevention?

• A. restriction tables
• B. fraud tables
• C. transfer rules
• D. calling search spaces

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/connection/10x/security/guide/10xcucsecx/10xcucsec020.pdf

NEW QUESTION 14
To redirect calls from the phone extension for user A to the voicemail greeting, which call routing rule should be used in Cisco Unity Connection?

• A. Attempt Forward forwarded routing rule
• B. Opening Greeting direct routing rule
• C. Attempt Sign-In direct routing rule
• D. Opening Greeting forwarded routing rule

Answer: A

Explanation:
Reference: https://community.cisco.com/t5/collaboration-voice-and-video/unity-connection-call-routing-logic/ta-p/3162560

NEW QUESTION 15
Which two SSO features are true? (Choose two.)

• A. allows Jabber to use LDAP directory services for contact imports
• B. allows LDAP user import on Cisco Unified Communications Manager
• C. improves productivity by reducing time spent re-entering credentials for the same identity
• D. transfers the authentication from the system that hosts the applications to a third-party system
• E. reduces costs by decreasing the number of help calls that are made for voicemail PIN resets

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/SAML_SSO_deployment_guide/11_0_1/CUCM_BK_SF9D0502_00_saml-sso-deployment-guide-1101/CUCM_BK_SF9D0502_00_saml-sso-deployment- guide11_chapter_01.html

NEW QUESTION 16

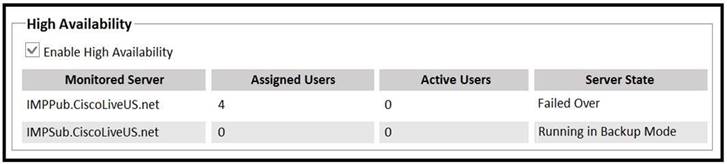

Refer to the exhibit.

A customer reports that after a network failure, all of the Cisco Jabber clients are not switched back to their home nodes. An engineer determines that the primary Cisco IM&P server is in Failed Over state. Which two actions should be performed to bring the system back to operational state and to prevent future occurrences? (Choose two.)

• A. Advise all users to re-login to their Jabber clients.
• B. Confirm that both IM&P servers are configured in the Presence Redundancy Group configuration pane.
• C. Perform a restart of the IM&P primary server to force fallback.
• D. Click the Fallback button in the Server Action pane.
• E. Set the Automatic Failover parameter in the Server Recovery Manager Service Parameters to the value True.

Answer: BD

NEW QUESTION 17
When trying to send a call out of Cisco Unity Connection, what happens when enabling the transfer to an alternate contact number, located under caller input?

• A. The restriction table is checked when an administrator changes the extension number via the Cisco Unity Connection admin page.
• B. The restriction table is not checked when an administrator changes the extension number via the Cisco Unity Connection admin page.
• C. The restriction table is not checked when a user changes the extension number via a TUI conversation.
• D. The restriction table is not checked when a user changes extension number via the Cisco Unity Connection Cisco PCA page.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-connection/117559-probsol-transferfailure-00.html

NEW QUESTION 18
Which Cisco Unified Connections Manager service is required for users to control their desk phones using Cisco Jabber?

• A. Cisco CTIManager
• B. Cisco CTL Provider
• C. Cisco Presence Engine
• D. Cisco Serviceability Reporter

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_5/CJAB_BK_D00D8CBD_00_deployment-installation-guide-cisco-jabber115/CJAB_BK_D00D8CBD_00_deployment-installation-guide- ciscojabber115_chapter_0111.html

NEW QUESTION 19
In the integration of Cisco Unity Connection using SIP, which SIP trunk security profile option is required for MWI to work correctly?

• A. Accept out-of-dialog refer
• B. Accept replaces header
• C. Accept unsolicited notification
• D. Accept presence subscription

Answer: A

NEW QUESTION 20
Which Cisco Unified Communications Manager menu path is used to configure Cisco IM and Presence Server High Availability?

• A. System > LDAP > LDAP Directory
• B. System > Geolocation Configuration
• C. System > Presence Redundancy Groups
• D. System > Server

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/unified-communications-manager-im-presence-service/200958-IM-and-Presence-Server-High-Availability.html#anc4

NEW QUESTION 21

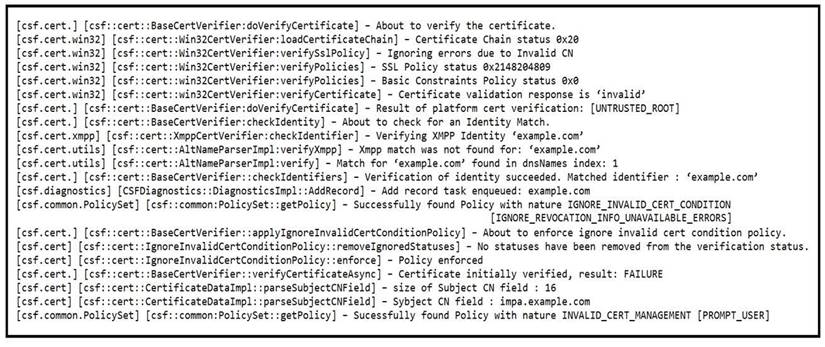

Refer to the exhibit.

Users report that they are prompted to accept server certificates when they initially run Cisco Jabber. An engineer removes these prompts to prevent confusion. Which statement about this scenario is true?

• A. Presentation of the certificates can be disabled by setting up Cisco IM&P servers into nonsecure mode.
• B. Nothing can be done to resolve this issue because certificates must be accepted by each Jabber user, per Cisco policy.
• C. These certificates are self-signed certificates, so they must be added manually to the user OS certificate stores.
• D. The behavior is a security breach because certificates are considered untrusted and as not coming from Cisco Collaboration servers.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/unified-communications/jabber-windows/116637-trouble-jabber-00.html

NEW QUESTION 22
Which statement about SIP federation between Cisco Unified Communications IM and Presence and Microsoft Skype for Business is true?

• A. Add the federated user as a contact in Jabber to view its presence status.
• B. The role of SIP Proxy service is to process the XMPP packet in from Jabber and convert it to SIP.
• C. TLS is optional.
• D. Use of directory URI as an IM addressing scheme is not supported.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/im_presence/interdomain_federation/12_5_1/cup0_b_interdomain-federation-1251/cup0_b_interdomain-federation-1251_chapter_01000.html

NEW QUESTION 23

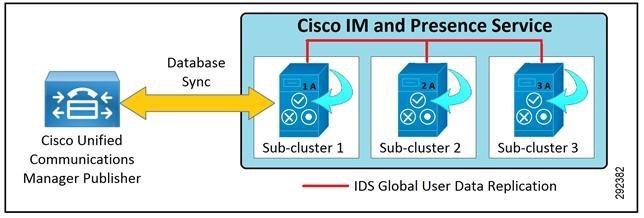

Refer to the exhibit.

Which statement is true?

• A. If the IM&P node in sub-cluster-1 goes down, then users assigned to it are randomly split between the two remaining subclusters.
• B. The administrator must add one node to each subcluster for high availability.
• C. IM&P nodes in each subscluster must be configured from the same OVA template.
• D. Each Cisco IM&P subcluster must have the same number of nodes.

Answer: B
