Cisco 200-310 Exam Questions and Answers 2021

NEW QUESTION 1
An engineer is trying to collect information about the customer router before a design change. Which command provides the most information about the device?

• A. show cdp neighbors
• B. show controllers
• C. show tech-support
• D. show running-config

Answer: C

NEW QUESTION 2
An organization must decide which routing protocol to use throughout its network. If routing is performed at the access layer, which factor must the organization consider?

• A. reduced network scalability when introducing numerous switch blocks into the routing table
• B. centralized management of ACLs at the distribution layer
• C. reliability when implementing routing over STP at the access layer
• D. performance differences between core, distribution, and access layer equipment

Answer: D

NEW QUESTION 3
A data center is being deployed, and one design requirement is to be able to readily scale server virtualization. Which IETF standard technology can provide this requirement?

• A. Transparent Interconnection of Lots of Links
• B. Cisco FabricPath
• C. data center bridging
• D. Cisco Unified Fabric

Answer: A

NEW QUESTION 4
Which IETF standard technology can be used with data center design to readily scale server virtualization?

• A. Transparent Interconnection of Lots of Links
• B. OTV
• C. vPC
• D. FCoE

Answer: A

NEW QUESTION 5
A network engineer must connect two sites. Each site has a different autonomous system number. Which method do you use to exchange routing information between the sites?

• A. OSPFv3
• B. BGP
• C. static routing
• D. EIGRP
• E. IGP

Answer: B

NEW QUESTION 6
You want to gather as much detail as possible during a network audit, to include data time stamping across a large number of interfaces, customized according to interface, with a minimal impact on the network devices themselves. Which tool would you use to meet these requirements?

• A. RMON
• B. SNMPv3
• C. NetFlow
• D. Cisco Discovery Protocol

Answer: C

Explanation: NetFlow provides extremely granular and accurate traffic measurements and a high-level collection of aggregated traffic. The output of netflow information is displayed via the show ip cache flow command on routers. The Table shows a description of the fields for NetFlow output.

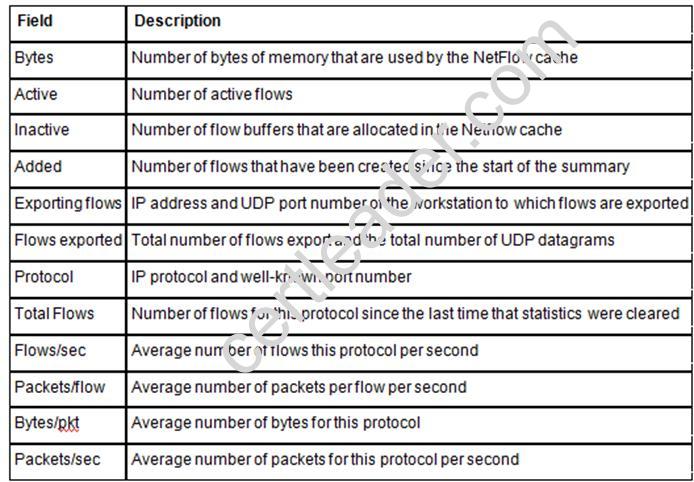

Table. Netflow Output escription

NEW QUESTION 7

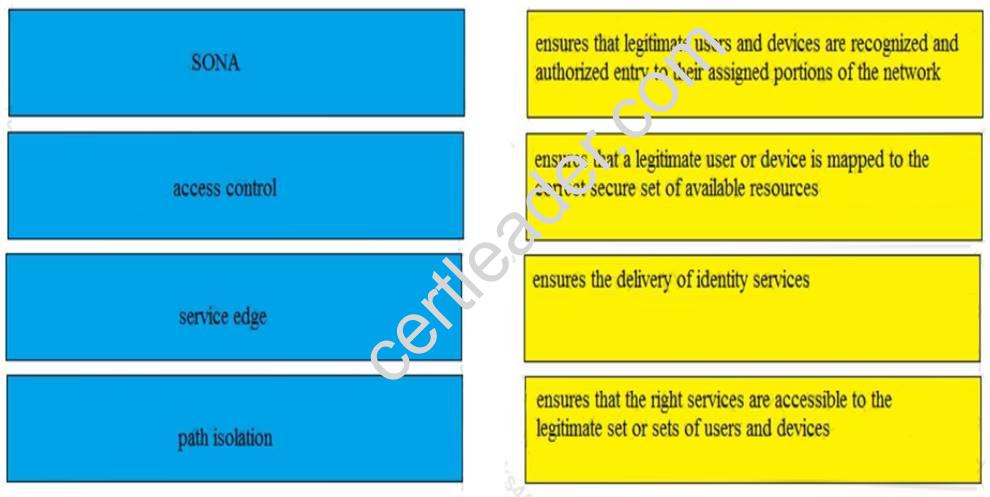

Drag and drop the network virtualization features from the left onto the correct functions on the right.

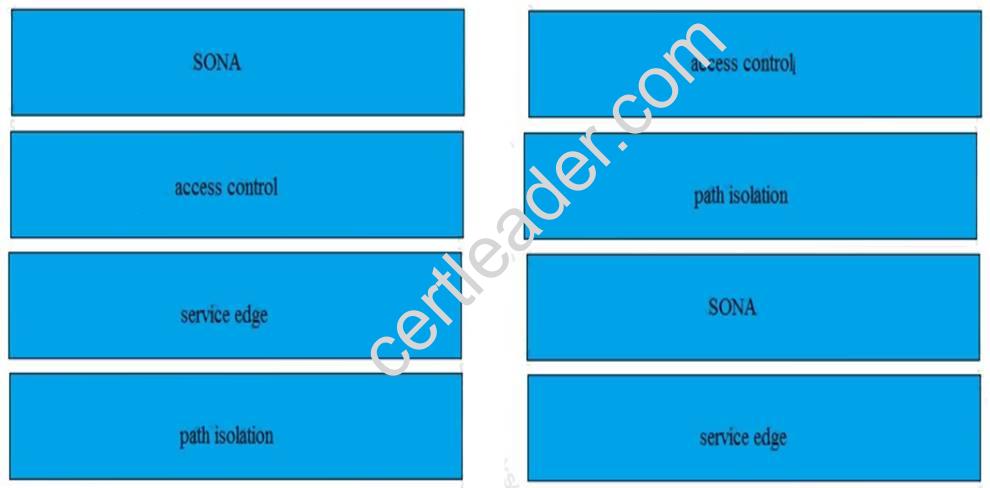

Answer:

Explanation:

NEW QUESTION 8
What two design best practices are key functions of the distribution layer? (Choose two.)

• A. address summarization
• B. fault domain isolation
• C. end user and application isolation
• D. admission control
• E. QoS tagging

Answer: AB

NEW QUESTION 9
Which subnet mask should you use on point-to-point links to avoid wasting IP addresses?

• A. 255.255.255.252
• B. 255.255.255.250
• C. 255.255.255.0
• D. 255.255.255.248

Answer: A

NEW QUESTION 10
What is the acceptable amount of one-way network delay for voice and video applications?

• A. 300 bytes
• B. 1 sec
• C. 150 ms
• D. 500 ms

Answer: C

Explanation: Delay Components in VoIP Networks
The ITU's G.I 14 recommendation specifics that the one-way delay between endpoints should not exceed 150 ms to be acceptable, commercial voice quality. In private networks, somewhat longer delays might be acceptable for economic reasons. The ITU G.114 recommendation specifics that 151-ms to 400-ms one-way delay might be acceptable provided that organizations are aware that the transmission time will affect the quality of user applications. One-way delays of above 400 ms are unacceptable for general network planning purposes.

NEW QUESTION 11
Which option is an advantage of a Layer 3 access model over the traditional Layer 2 access model ?

• A. increased neighbor adjacencies
• B. faster convergence
• C. reduced resources on the router
• D. reduced size of routing table

Answer: B

NEW QUESTION 12
What are the three models that are required in the systematic approach of the top-down design methodology? (Choose three.)

• A. logical
• B. physical
• C. layered
• D. network components
• E. technological
• F. protocols
• G. virtual

Answer: ABC

NEW QUESTION 13
Which option is an object instance than an API identifies using informationmodel-based architecture?

• A. DN
• B. Class
• C. Method
• D. MO

Answer: A

Explanation: https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/aci-fabric-controller/white-paper

NEW QUESTION 14
Which subnet is the best choice for a point-to-point link?

• A. 10.120.10.0/29
• B. 10.120.10.0/28
• C. 10.120.10.1/32
• D. 10.120.10.0/30

Answer: D

NEW QUESTION 15
Which statement is true about the Cisco NAC Appliance?

• A. recognizes users, their devices, and their roles in the network
• B. does not offer audit and reporting features
• C. must be placed inline with other network devices
• D. does not recognize guest users

Answer: A

NEW QUESTION 16
A network engineer is tasked with summarizing the routes to a remote site. What is the optimal route statement to connect to the 192.168.101.0/24 and 192.168.102.0/24 networks across the corporate WAN?

• A. ip route 192.168.100.0 255.255.254.0 10.1.1.1
• B. ip route 192.168.100.0 255.255.252.0 10.1.1.1
• C. ip route 192.168.100.0 255.255.255.0 10.1.1.1
• D. ip route 192.168.101.0 255.255.254.0 10.1.1.1

Answer: B

NEW QUESTION 17
What is a benefit of IPv6 over IPv4 addresses?

• A. shorter addresses
• B. automatic summarization
• C. hierarchal global address space
• D. faster IGP convergence

Answer: C

NEW QUESTION 18
When is the Cisco FlexConnect design model recommended?

• A. when remote-site APs are centrally managed
• B. when each remote site has its own wireless controller
• C. when each remote site runs VSS
• D. when the remote sites use WAN optimization

Answer: A

NEW QUESTION 19
Which four services does the architecture for Media Services contain? (Choose four.)

• A. access services
• B. transport services
• C. storage services
• D. forwarding services
• E. session control services
• F. security services
• G. filtering services
• H. remote access services

Answer: ABCE

Explanation: An architecture framework for media services supports different models of video models. As shown in Figure 14-13, the network provides service to video media in the Media Services Framework. Those services are access services, transport services, bridging services, storage servers, and session control services, which arc provided to endpoints.
Access services provide identity of end devices, mobility, and location services. Transport services provide QoS for reliable packet delivery.
Bridging services provide transcoding, conferencing, and recording services of media streams.
Storage services provide capture and storage of media streams and content management and distribution. Session control services provide session signaling and control and gateway services.
