Free demo questions for Cisco 200-105 Exam Dumps Below:

NEW QUESTION 1
Which Cisco platform can verify ACLs?

  • A. Cisco Prime Infrastructure
  • B. Cisco Wireless LAN Controller
  • C. Cisco APIC-EM
  • D. Cisco IOS-XE

Answer: C

NEW QUESTION 2
How can you disable DTP on a switch port?

  • A. Configure the switch port as a trunk.
  • B. Add an interface on the switch to a channel group.
  • C. Change the operational mode to static access.
  • D. Change the administrative mode to access.

Answer: D

NEW QUESTION 3
Which command is used to display the collection of OSPF link states?

  • A. show ip ospf link-state
  • B. show ip ospf lsa database
  • C. show ip ospf neighbors
  • D. show ip ospf database

Answer: D

Explanation: http://www.cisco.com/en/US/docs/ios/iproute_ospf/command/reference/iro_osp3.html#wp1 01217
Examples
The following is sample output from the show ip ospf database command when no arguments or keywords are used:
Router# show ip ospf database
OSPF Router with id(192.168.239.66) (Process ID 300)
200-105 dumps exhibit
200-105 dumps exhibit

NEW QUESTION 4
Which form of NAT maps multiple private IP addresses to a single registered IP address by using different
ports?

  • A. static NAT
  • B. dynamic NAT
  • C. overloading
  • D. overlapping
  • E. port loading

Answer: C

NEW QUESTION 5
Which configuration can you apply to enable encapsulation on a subinterface?

  • A. interface FastEthernet 0/0 encapsulation dot1Q 30ip address 10.1.1.30 255.255.255.0
  • B. interface FastEthernet 0/0.30ip address 10.1.1.30 255.255.255.0
  • C. interface FastEthernet 0/0.30 description subinterface vlan 30
  • D. interface FastEthernet 0/0.30 encapsulation dot1Q 30ip address 10.1.1.30 255.255.255.0

Answer: D

NEW QUESTION 6

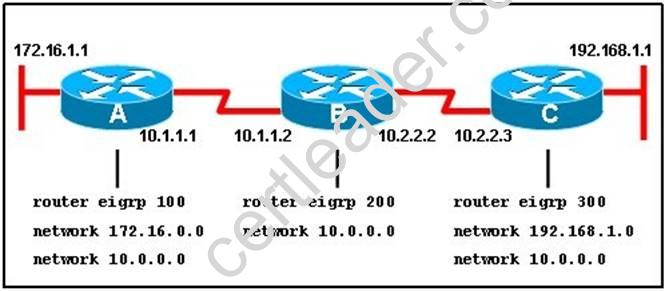

Refer to the exhibit.
200-105 dumps exhibit
When running EIGRP, what is required for RouterA to exchange routing updates with RouterC?

  • A. AS numbers must be changed to match on all the routers
  • B. Loopback interfaces must be configured so a DR is elected
  • C. The no auto-summary command is needed on Router A and Router C
  • D. Router B needs to have two network statements, one for each connected network

Answer: A

Explanation: Here we required same autonomous system between router A,B,C.Routing updated always exchange between in same EIGRP EIGRP autonomous system.you can configure more than one EIGRP autonomous system on the same router. This is typically done at a redistribution point where two EIGRP autonomous systems are interconnected. Individual router interfaces should only be included within a single EIGRP autonomous system. Cisco
does not recommend running multiple EIGRP autonomous systems on the same set of interfaces on the router. If multiple EIGRP autonomous systems are used with multiple points of mutual redistribution, it can cause discrepancies in the EIGRP topology table if correct filtering is not performed at the redistribution points. If possible, Cisco recommends you configure only one EIGRP autonomous system in any single autonomous system. http://www.cisco.com/en/US/tech/tk365/technologies_tech_note09186a0080093f07.shtml

NEW QUESTION 7
Which statement about switch access ports is true?

  • A. They drop packets with 802.1Q tags.
  • B. A VLAN must be assigned to an access port before it is created.
  • C. They can receive traffic from more than one VLAN with no voice support
  • D. By default, they carry traffic for VLAN 10.

Answer: A

Explanation: "If an access port receives a packet with an 802.1Q tag in the header other than the access VLAN value, that port drops the packet without learning its MAC source address."

NEW QUESTION 8
What is one benefit of PVST+?

  • A. PVST+ supports Layer 3 load balancing without loops.
  • B. PVST+ reduces the CPU cycles for all the switches in the network.
  • C. PVST+ allows the root switch location to be optimized per VLAN.
  • D. PVST+ automatically selects the root bridge location, to provide optimized bandwidth usage.

Answer: C

Explanation: Per VLAN Spanning Tree (PVST)
Introduction http://www.cisco.com/en/US/tech/tk389/tk621/tk846/tsd_technology_support_sub- protocol_home.html
Per VLAN Spanning Tree (PVST) maintains a spanning tree instance for each VLAN configured in the network. This means a switch can be the root bridge of a VLAN while another switch can be the root bridge of other VLANs in a common topology. For example, Switch 1 can be the root bridge for Voice data while Switch 2 can be the root bridge for Video data. If designed correctly, it can optimize the network traffic. http://www.ciscopress.com/articles/article.asp?p=102157&seqNum=4

NEW QUESTION 9
Which three statements about DTP are true? (Choose three)

  • A. It is enabled by default.
  • B. It is a universal protocol.
  • C. It is a proprietary protocol.
  • D. It is disabled by default.
  • E. It is a Layer 3-based protocol.
  • F. It is a Layer 2-based protocol.

Answer: ACF

NEW QUESTION 10
Which WAN solution is secured by default?

  • A. VPN
  • B. DSL
  • C. LCP
  • D. PPP

Answer: A

NEW QUESTION 11
200-105 dumps exhibit
200-105 dumps exhibit
200-105 dumps exhibit
200-105 dumps exhibit
200-105 dumps exhibit
200-105 dumps exhibit
200-105 dumps exhibit

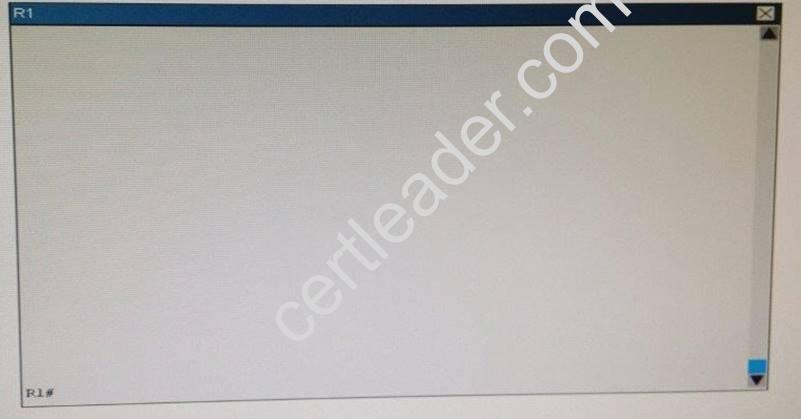

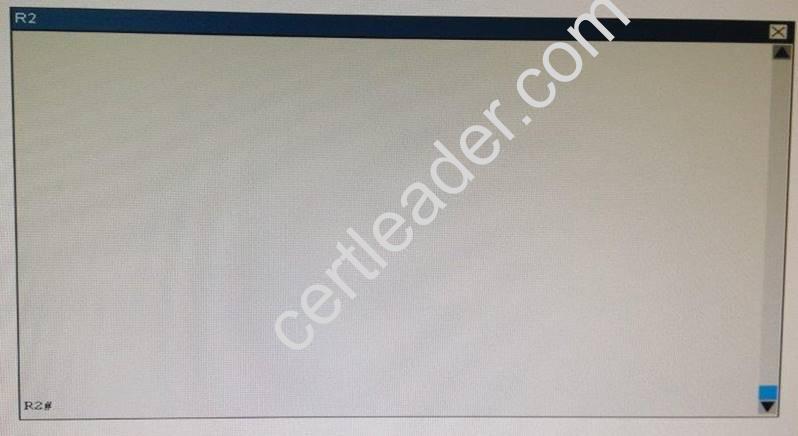

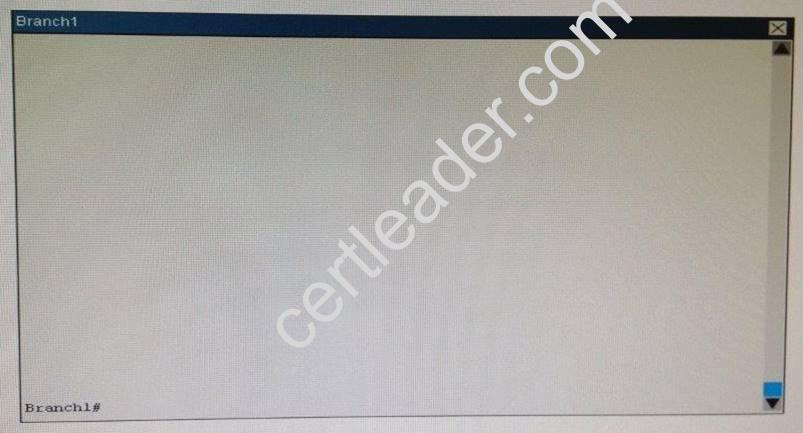

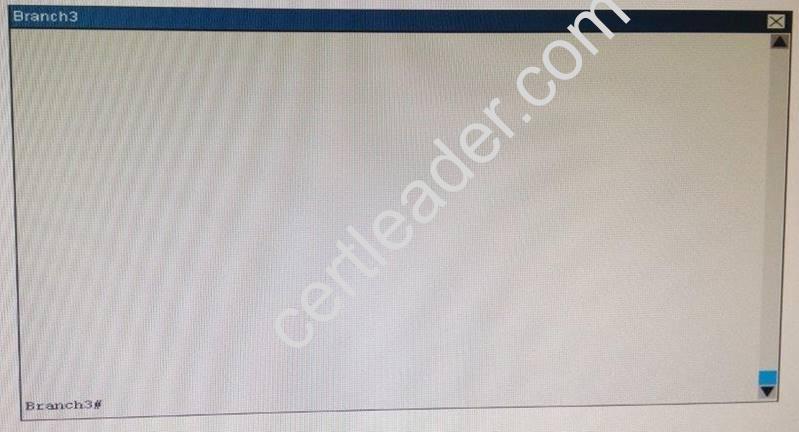

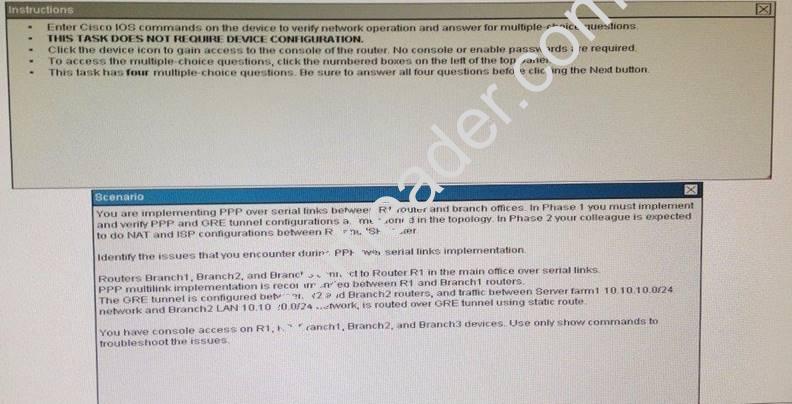

Why is the Branch2 network 10.1 0.20.0/24 unable to communicate with the Server farm1 network 10.1 0.10.0/24 over the GRE tunnel?

  • A. The GRE tunnel destination is not configured on the R2 router.
  • B. The GRE tunnel destination is not configured on the Branch2 router.
  • C. The static route points to the tunnel0 interface that is misconfigured on the Branch2 router.
  • D. The static route points to the tunnel0 interface that is misconfigured on the R2 router.

Answer: C

NEW QUESTION 12
What can be done to secure the virtual terminal interfaces on a router? (Choose two.)

  • A. Administratively shut down the interface.
  • B. Physically secure the interface.
  • C. Create an access list and apply it to the virtual terminal interfaces with the access-group command.
  • D. Configure a virtual terminal password and login process.
  • E. Enter an access list and apply it to the virtual terminal interfaces using the access-class command.

Answer: DE

Explanation: It is a waste to administratively shut down the interface. Moreover, someone can still access the virtual terminal interfaces via other interfaces -> A is not correct.
We can not physically secure a virtual interface because it is “virtual” -> B is not correct. To apply an access list to a virtual terminal interface we must use the “access-class” command. The “access-group” command is only used to apply an access list to a physical interface -> C is not correct; E is correct.
The most simple way to secure the virtual terminal interface is to configure a username & password to prevent unauthorized login -> D is correct.

NEW QUESTION 13
Refer to the exhibit.
200-105 dumps exhibit

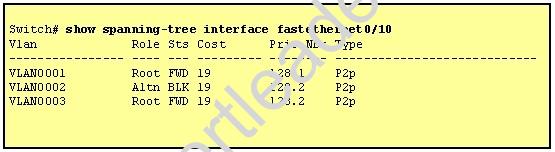

Given the output shown from this Cisco Catalyst 2950, what is the reason that interface FastEthernet 0/10 is not the root port for VLAN 2?

  • A. This switch has more than one interface connected to the root network segment in VLAN 2.
  • B. This switch is running RSTP while the elected designated switch is running 802.1dSpanning Tree.
  • C. This switch interface has a higher path cost to the root bridge than another in the topology.
  • D. This switch has a lower bridge ID for VLAN 2 than the elected designated switch.

Answer: C

Explanation: These four parameters are examined in order to make root bridge , root port , designated port. Other switch has lowest Sending Bridge ID or Sending Port ID so vlan 2 is not the root port.
1. A lower Root Bridge ID2. A lower path cost to the Root3. A lower Sending Bridge ID4. A lower Sending Port ID

Topic 3, Routing Technologies

NEW QUESTION 14
Which two statements describe the process identifier that is used in the command to configure OSPF on a router? (Choose two.)
Router(config)# router ospf 1

  • A. All OSPF routers in an area must have the same process ID.
  • B. Only one process number can be used on the same router.
  • C. Different process identifiers can be used to run multiple OSPF processes
  • D. The process number can be any number from 1 to 65,535.
  • E. Hello packets are sent to each neighbor to determine the processor identifier.

Answer: CD

Explanation: The areas can be any number from 0 to 4.2 billion and 1 to 65,535 for the Process ID. The process ID is the ID of the OSPF process to which the interface belongs. The process ID is local to the router, and two OSPF neighboring routers can have different OSPF process IDs. (This is not true of Enhanced Interior Gateway Routing Protocol [EIGRP], in which the routers need to be in the same autonomous system). Cisco IOS Software can
run multiple OSPF processes on the same router, and the process ID merely distinguishes one process from the other. The process ID should be a positive integer.

NEW QUESTION 15
Refer to the exhibit.

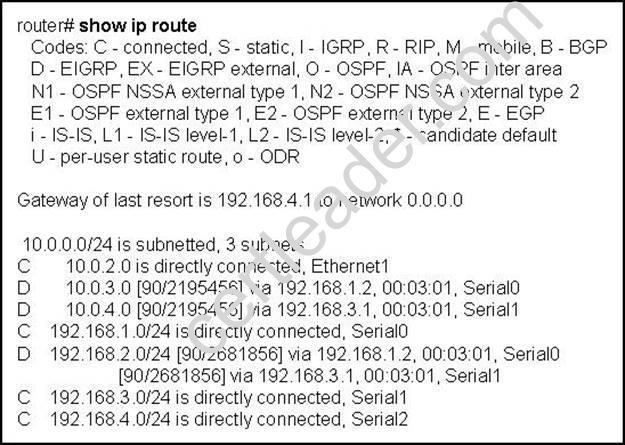

200-105 dumps exhibit
How will the router handle a packet destined for 192.0.2.156?

  • A. The router will drop the packet.
  • B. The router will return the packet to its source.
  • C. The router will forward the packet via Serial2.
  • D. The router will forward the packet via either Serial0 or Serial1.

Answer: C

Explanation: Router has pointed default router to 192.168.4.1 and this subnet is connected via serial 2 interface. Router does not have router for the 192.0.2.156. so it will use the default gateway 192.168.4.1. A default route identifies the gateway IP address to which the router sends all IP packets for which it does not have a learned or static route.

NEW QUESTION 16

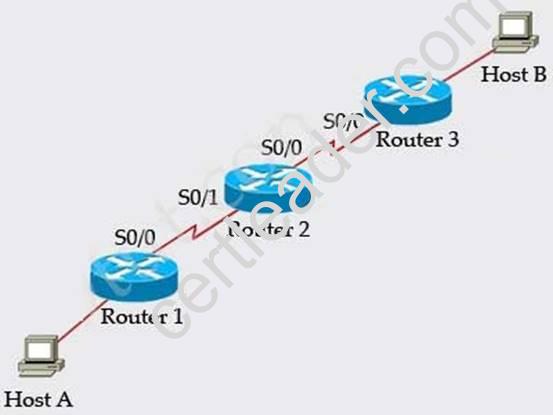

Refer to the exhibit.
200-105 dumps exhibit
Host A pings interface S0/0 on router 3, what is the TTL value for that ping?

  • A. 253
  • B. 252
  • C. 255
  • D. 254

Answer: A

Explanation: From the CCNA ICND2 Exam book: “Routers decrement the TTL by 1 every time they forward a packet; if a router decrements the TTL to 0, it throws away the packet. This prevents packets from rotating forever.” I want to make it clear that before the router forwards a packet, the TTL is still remain the same. For example in the topology above, pings to S0/1 and S0/0 of Router 2 have the same TTL.

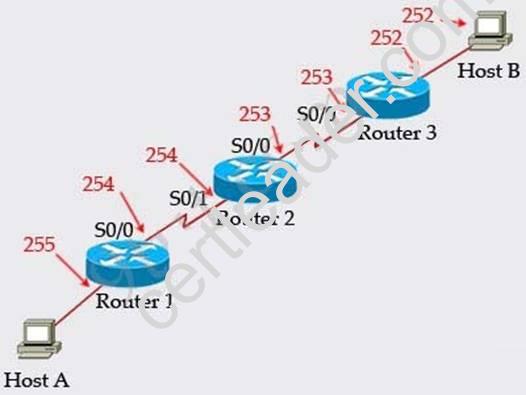

The picture below shows TTL values for each interface of each router and for Host B. Notice that Host A initializes ICMP packet with a TTL of 255:
200-105 dumps exhibit

NEW QUESTION 17
CORRECT TEXT

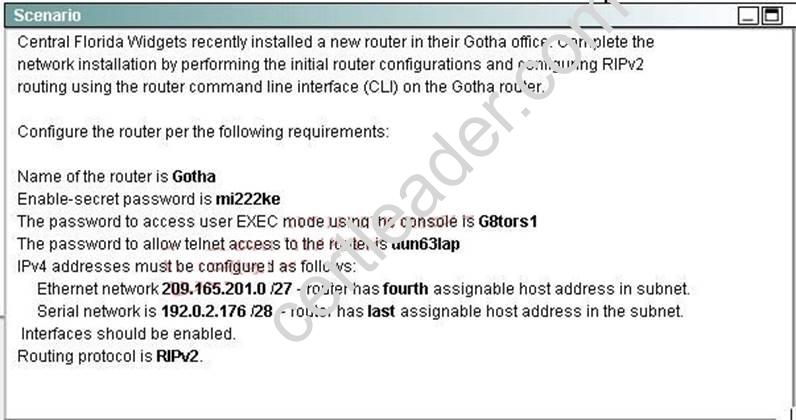

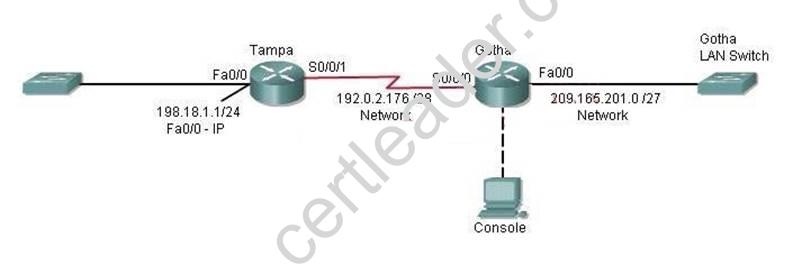

200-105 dumps exhibit
200-105 dumps exhibit
200-105 dumps exhibit

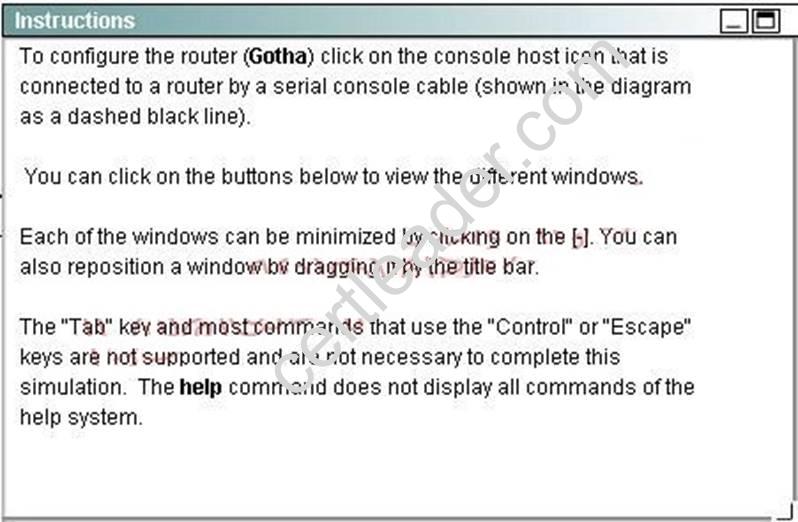

Attention:
In practical examinations, please note the following, the actual information will prevail.
1. Name of the router is xxx
2. Enable secret password is xxx
3. Password In access user EXEC mode using the console is xxx
4. The password to allow telnet access to the router is xxx
5. IP information

    Answer:

    Explanation: Router>enable Router#config terminal Router(config)#hostname Gotha Gotha(config)#enable secret mi222ke Gotha(config)#line console 0 Gotha(config-line)#password G8tors1 Gotha(config-line)#exit Gotha(config)#line vty 0 4 Gotha(config-line)#password dun63lap Gotha(config-line)#login
    Gotha(config-line)#exit Gotha(config)#interface fa0/0 Gotha(config-if)#no shutdown
    Gotha(config-if)#ip address 209.165.201.4 255.255.255.224 Gotha(config)#interface s0/0/0
    Gotha(config-if)#ip address 192.0.2.190 255.255.255.240 Gotha(config-if)#no shutdown
    Gotha(config-if)#exit Gotha(config)#router rip Gotha(config-router)#version 2
    Gotha(config-router)#network 209.165.201.0
    Gotha(config-router)#network 192.0.2.176 Gotha(config-router)#end
    Gotha#copy running-config startup-config

    NEW QUESTION 18
    Refer to the exhibit.
    200-105 dumps exhibit

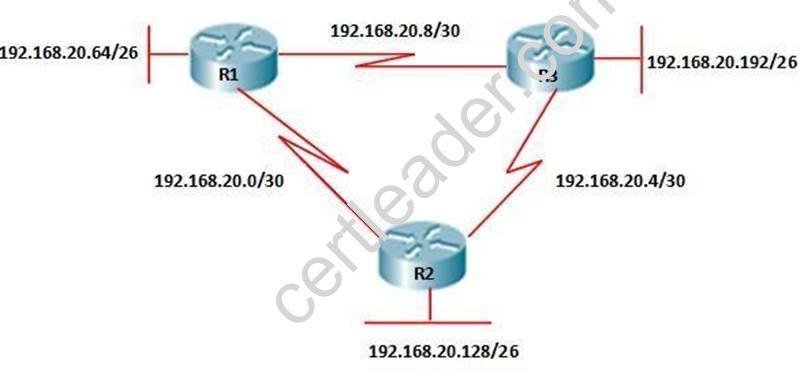

    The company uses EIGRP as the routing protocol. What path will packets take from a host on
    192.168.10.192/26 network to a host on the LAN attached to router R1?
    R3# show ip route
    Gateway of last resort is not set
    192 168.20.0/24 is variably subnetted, 6 subnets, 2 masks
    D 192.168.20.64/26 [90/2195456] via 192.168.20.9, 00:03:31, Serial0/0
    D 192.168.20.0/30 [90/2681856] via 192.168.20.9, 00:03:31, Serial0/0
    C 192.168.20.4/30 is directly connected, Serial0/1 C 192.168.20.8/30 is directly connected, Serial0/0
    C 192.168.20.192/26 is directly connected, FastEthernet0/0
    D 192.168.20.128/26 [90/2195456] via 192.168.20.5,00:03:31, Serial0/1

    • A. The path of the packets will be R3 to R2 to R1
    • B. The path of the packets will be R3 to R1 to R2
    • C. The path of the packets will be both R3 to R2 to R1 and R3 to R1
    • D. The path of the packets will be R3 to R1

    Answer: D

    Explanation: http://www.orbitco-ccna-pastquestions.com/CCNA---EIGRP-Common-Question.php
    Looking at the output display above, the LAN attached to router R1 belongs to 192.168.20.64/26 subnet and learned this network via 192.168.20.9 which will be an IP address in 192.168.20.8/30 sub-network. This means that packets destined for 192.168.20.64 will be routed from R3 to R1.

    NEW QUESTION 19
    What are two characteristics of Frame Relay point-to-point subinterfaces? (Choose two.)

    • A. They create split-horizon issues.
    • B. They require a unique subnet within a routing domain.
    • C. They emulate leased lines.
    • D. They are ideal for full-mesh topologies.
    • E. They require the use of NBMA options when using OSPF.

    Answer: BC

    Explanation: http://www.ciscopress.com/articles/article.asp?p=170741&seqNum=5
    Configuring Frame Relay Subinterfaces
    On partially meshed Frame Relay networks, the problem of split horizon can be overcome by using Frame Relay subinterfaces. Frame Relay provides a mechanism to allow a physical interface to be partitioned into multiple virtual interfaces. In a similar way, using subinterfaces allows a partially meshed network to be divided into a number of smaller, fully meshed point-to-point networks. Generally, each point-to-point subnetwork is assigned a unique network address. This allows packets received on one physical interface to be sent out from the same physical interface, albeit forwarded on VCs in different subinterfaces.
    There are two types of subinterfaces supported by Cisco routers: point-to-point and multipoint subinterfaces.

    NEW QUESTION 20
    Which protocol provides a method of sharing VLAN configuration information between two Cisco switches?

    • A. STP
    • B. VTP
    • C. 802.1Q
    • D. RSTP

    Answer: B

    Explanation: Understanding VLAN Trunk Protocol (VTP) http://www.cisco.com/en/US/tech/tk389/tk689/technologies_tech_note09186a0080094c52. shtml
    Introduction
    VLAN Trunk Protocol (VTP) reduces administration in a switched network. When you configure a new VLAN on one VTP server, the VLAN is distributed through all switches in the domain. This reduces the need to configure the same VLAN everywhere. VTP is a Cisco-proprietary protocol that is available on most of the Cisco Catalyst series products.
