NEW QUESTION 1
Exhibit
JN0-664 dumps exhibit

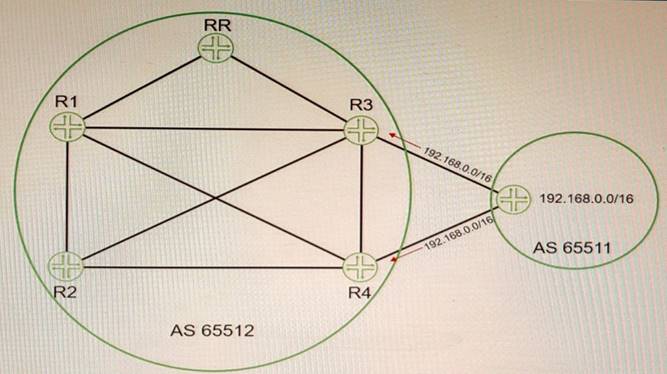

Referring to the exhibit, you are receiving the 192.168 0 0/16 route on both R3 and R4 from your EBGP neighbor You must ensure that R1 and R2 receive both BGP routes from the route reflector
In this scenario, which BGP feature should you configure to accomplish this behavior?

  • A. add-path
  • B. multihop
  • C. multipath
  • D. route-target

Answer: A

Explanation:
BGP add-path is a feature that allows the advertisement of multiple paths through the same peering session for the same prefix without the new paths implicitly replacing any previous paths. This behavior promotes path diversity and reduces multi-exit discriminator (MED) oscillations. BGP add-path is implemented by adding a path identifier to each path in the NLRI. The path identifier can be considered as something similar to a route distinguisher in VPNs, except that a path ID can apply to any address family. Path IDs are unique to a peering session and are generated for each network3. In this question, we have a route reflector (RR) that receives two routes for the same prefix (192.168.0.0/16) from an EBGP neighbor. By default, the RR will only advertise its best path to its clients (R1 and R2). However, we want R1 and R2 to receive both routes from the RR. To achieve this, we need to configure BGP add-path on the RR and enable it to send multiple paths for the same prefix to its clients.
Reference: 3: https://www.cisco.com/c/en/us/td/docs/ios-
xml/ios/iproute_bgp/configuration/xe-16/irg-xe-16-book/bgp-additional-paths.html

NEW QUESTION 2
Exhibit
JN0-664 dumps exhibit

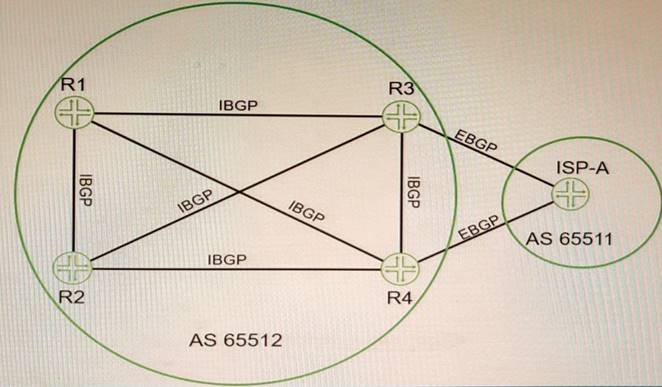

Click the Exhibit button-Referring to the exhibit, which two statements are correct about BGP routes on R3 that are learned from the ISP-A neighbor? (Choose two.)

  • A. By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3.
  • B. The BGP local-preference value that is used by ISP-A is not advertised to R3.
  • C. All BGP attribute values must be removed before receiving the routes.
  • D. The next-hop value for these routes is changed by ISP-A before being sent to R3.

Answer: AB

Explanation:
BGP is an exterior gateway protocol that uses path vector routing to exchange routing information among autonomous systems. BGP uses various attributes to select the best path to each destination and to propagate routing policies. Some of the common BGP attributes are AS path, next hop, local preference, MED, origin, weight, and community. BGP attributes can be classified into four categories: well-known mandatory, well-known discretionary, optional transitive, and optional nontransitive. Well-known mandatory attributes are attributes that must be present in every BGP update message and must be recognized by every BGP speaker. Well-known discretionary attributes are attributes that may or may not be present in a BGP update message but must be recognized by every BGP speaker. Optional transitive attributes are attributes that may or may not be present in a BGP update message and may or may not be recognized by a BGP speaker. If an optional transitive attribute is not recognized by a BGP speaker, it is passed along to the next BGP speaker. Optional nontransitive attributes are attributes that may or may not be present in a BGP update message and may or may not be recognized by a BGP speaker. If an optional nontransitive attribute is not recognized by a BGP speaker, it is not passed along to the next BGP speaker. In this question, we have four routers (R1, R2, R3, and R4) that are connected in a full mesh topology and running IBGP. R3 receives the 192.168.0.0/16 route from its EBGP neighbor and advertises it to R1 and R4 with different BGP attribute values. We are asked which statements are correct about the BGP routes on R3 that are learned from the ISP-A neighbor. Based on the information given, we can infer that the correct statements are:
✑ By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3. This is because the default behavior of EBGP is to preserve the next-hop attribute of the routes received from another EBGP neighbor. The next- hop attribute indicates the IP address of the router that should be used as the next hop to reach the destination network.
✑ The BGP local-preference value that is used by ISP-A is not advertised to R3. This is because the local-preference attribute is a well-known discretionary attribute that is used to influence the outbound traffic from an autonomous system. The local- preference attribute is only propagated within an autonomous system and is not advertised to external neighbors.
References: : https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol- bgp/13753-25.html : https://www.cisco.com/c/en/us/support/docs/ip/border-gateway- protocol-bgp/13762-40.html : https://www.cisco.com/c/en/us/support/docs/ip/border- gateway-protocol-bgp/13759-37.html

NEW QUESTION 3
Exhibit
JN0-664 dumps exhibit

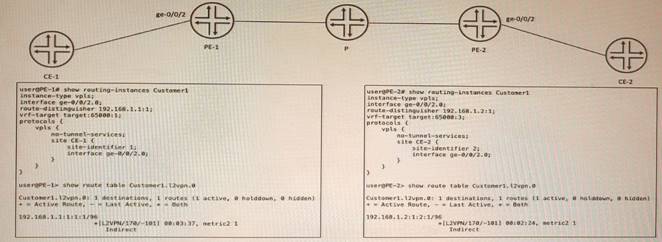

CE-1 and CE-2 are part of a VPLS called Customer1 No connectivity exists between CE-1 and CE-2. In the process of troubleshooting, you notice PE-1 is not learning any routes for this VPLS from PE-2, and PE-2 is not learning any routes for this VPLS from PE-1.

  • A. The route target must match on PE-1 and PE-2.
  • B. The route distinguisher must match on PE-1 and PE-2.
  • C. The instance type should be changed to I2vpn.
  • D. The no-tunnel-services statement should be deleted on both PEs.

Answer: A

Explanation:
VPLS is a technology that provides Layer 2 VPN services over an MPLS network. VPLS uses BGP as its control protocol to exchange VPN membership information between PE routers. The route target is a BGP extended community attribute that identifies which VPN a route belongs to. The route target must match on PE routers that participate in the same VPLS instance, otherwise they will not accept or advertise routes for that VPLS.

NEW QUESTION 4
By default, which statement is correct about OSPF summary LSAs?

  • A. All Type 2 and Type 7 LSAs will be summanzed into a single Type 5 LSA
  • B. The area-range command must be installed on all routers.
  • C. Type 3 LSAs are advertised for routes in Type 1 LSAs.
  • D. The metric associated with a summary route will be equal to the lowest metric associated with an individual contributing route

Answer: C

Explanation:
OSPF uses different types of LSAs to describe different aspects of the network topology. Type 1 LSAs are also known as router LSAs, and they describe the links and interfaces of a router within an area. Type 3 LSAs are also known as summary LSAs, and they describe routes to networks outside an area but within the same autonomous system (AS). By default, OSPF will summarize routes from Type 1 LSAs into Type 3 LSAs when advertising them across area boundaries .

NEW QUESTION 5
Which two statements describe PIM-SM? (Choose two)

  • A. Routers with receivers send join messages to their upstream neighbors.
  • B. Routers without receivers must periodically prune themselves from the SPT.
  • C. Traffic is initially flooded to all routers and an S,G is maintained for each group
  • D. Traffic is only forwarded to routers that request to join the distribution tree.

Answer: AD

Explanation:
PIM sparse mode (PIM-SM) is a multicast routing protocol that uses a pull model to deliver multicast traffic. In PIM-SM, routers with receivers send join messages to their upstream neighbors toward a rendezvous point (RP) or a source-specific tree (SPT). The RP or SPT acts as the root of a shared distribution tree for a multicast group. Traffic is only forwarded to routers that request to join the distribution tree by sending join messages. PIM-SM does not flood traffic to all routers or prune routers without receivers, as PIM dense mode does.

NEW QUESTION 6
Exhibit
JN0-664 dumps exhibit

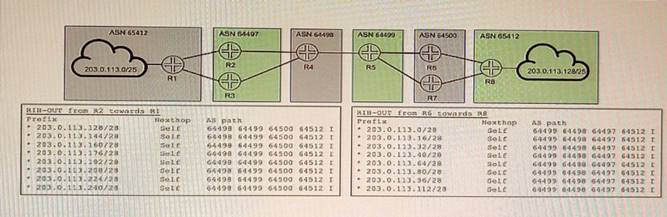

R1 and R8 are not receiving each other's routes
Referring to the exhibit, what are three configuration commands that would solve this problem? (Choose three.)

  • A. Configure loops and advertise-peer-as on routers in AS 64497 and AS 64450.
  • B. Configure loops on routers in AS 65412 and advertise-peer-as on routers in AS 64498.
  • C. Configure as-override on advertisement from AS 64500 toward AS 64512.
  • D. Configure remove-private on advertisements from AS 64497 toward AS 64498
  • E. Configure remove-private on advertisements from AS 64500 toward AS 64499

Answer: BDE

Explanation:
The problem in this scenario is that R1 and R8 are not receiving each other’s routes because of private AS numbers in the AS path. Private AS numbers are not globally unique and are not advertised to external BGP peers. To solve this problem, you need to do the following:
✑ Configure loops on routers in AS 65412 and advertise-peer-as on routers in AS 64498. This allows R5 and R6 to advertise their own AS number (65412) instead of their peer’s AS number (64498) when sending updates to R7 and R8. This prevents a loop detection issue that would cause R7 and R8 to reject the routes from R5 and R62.
✑ Configure remove-private on advertisements from AS 64497 toward AS 64498 and from AS 64500 toward AS 64499. This removes any private AS numbers from the AS path before sending updates to external BGP peers. This allows R2 and R3 to receive the routes from R1 and R4, respectively3.

NEW QUESTION 7
Which statement is correct about IS-IS when it performs the Dijkstra algorithm?

  • A. The local router moves its own local tuples into the candidate database
  • B. When a new neighbor ID in the tree database matches a router ID in the LSDB, the neighbor ID is moved to the candidate database
  • C. Tuples with the lowest cost are moved from the tree database to the LSDB.
  • D. The algorithm will stop processing once the tree database is empty.

Answer: A

Explanation:
IS-IS is a link-state routing protocol that uses the Dijkstra algorithm to compute the shortest paths between nodes in a network. The Dijkstra algorithm maintains three data structures: a tree database, a candidate database, and a link-state database (LSDB). The tree database contains the nodes that have been visited and their shortest distances from the source node. The candidate database contains the nodes that have not been visited yet and their tentative distances from the source node. The LSDB contains the topology information of the network, such as the links and their costs.
The Dijkstra algorithm works as follows:
✑ The local router moves its own local tuples into the tree database. A tuple consists of a node ID, a distance, and a parent node ID. The local router’s tuple has a distance of zero and no parent node.
✑ The local router moves its neighbors’ tuples into the candidate database. The neighbors’ tuples have distances equal to the costs of the links to them and parent node IDs equal to the local router’s node ID.
✑ The local router selects the tuple with the lowest distance from the candidate database and moves it to the tree database. This tuple becomes the current node.
✑ The local router updates the distances of the current node’s neighbors in the candidate database by adding the current node’s distance to the link costs. If a shorter distance is found, the parent node ID is also updated.
✑ The algorithm repeats steps 3 and 4 until either the destination node is reached or the candidate database is empty.

NEW QUESTION 8
Exhibit
JN0-664 dumps exhibit

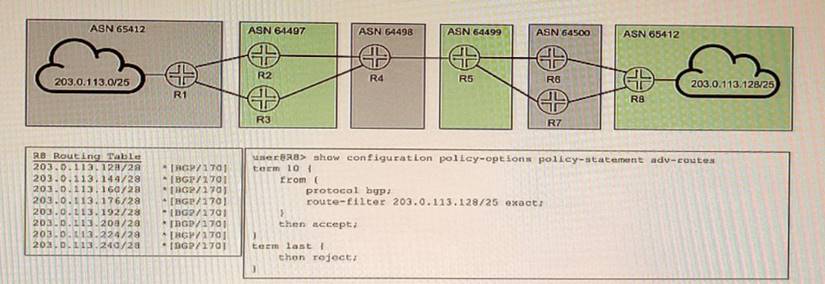

You are attempting to summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500. You implement the export policy shown in the exhibit and all routes from the routing table stop being advertised.
In this scenario, which two steps would you take to summarize the route in BGP? (Choose two.)

  • A. Remove the from protocol bgp command from the export policy.
  • B. Add the set protocols bgp family inet unicast add-path command to allow additional routes to the RIB table
  • C. -
  • D. Add the set routing-options static route 203.0.113.123/25 discard command.
  • E. Replace exact in the export policy with orlonger.

Answer: CD

Explanation:
To summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500, you need to do the following:
✑ Add the set routing-options static route 203.0.113.128/25 discard command. This creates a static route for the summary prefix and discards any traffic destined to it. This is necessary because BGP can only advertise routes that are present in the routing table.
✑ Replace exact in the export policy with orlonger. This allows R8 to match and advertise any route that is equal or more specific than the summary prefix. The exact term only matches routes that are exactly equal to the summary prefix, which is not present in the routing table.

NEW QUESTION 9
A packet is received on an interface configured with transmission scheduling. One of the configured queues In this scenario, which two actions will be taken by default on a Junos device? (Choose two.)

  • A. The excess traffic will be discarded
  • B. The exceeding queue will be considered to have negative bandwidth credit.
  • C. The excess traffic will use bandwidth available from other queueses
  • D. The exceeding queue will be considered to have positive bandwidth credit

Answer: AB

Explanation:
Transmission scheduling is a CoS feature that allows you to allocate bandwidth among different queues on an interface. Each queue has a configured bandwidth percentage that determines how much of the available bandwidth it can use. If a queue exceeds its allocated bandwidth, it is considered to have negative bandwidth credit and its excess traffic will be discarded by default. If a queue does not use all of its allocated bandwidth, it is considered to have positive bandwidth credit and its unused bandwidth can be shared by other queues.

NEW QUESTION 10
Exhibit
JN0-664 dumps exhibit

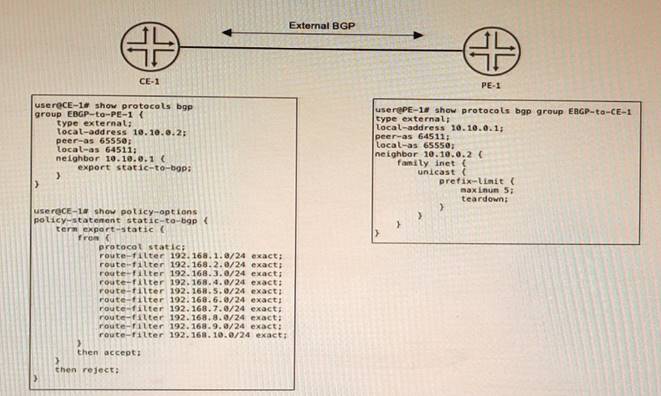

CE-1 must advertise ten subnets to PE-1 using BGP Once CE-1 starts advertising the subnets to PE-1, the BGP peering state changes to Active.
Referring to the CLI output shown in the exhibit, which statement is correct?

  • A. CE-1 is advertising its entire routing table.
  • B. CE-1 is configured with an incorrect peer AS
  • C. The prefix limit has been reached on PE-1
  • D. CE-1 is unreachable

Answer: B

Explanation:
The problem in this scenario is that CE-1 is configured with an incorrect peer AS number for its BGP session with PE-1. The CLI output shows that CE-1 is using AS 65531 as its local AS number and AS 65530 as its peer AS number. However, PE-1 is using AS 65530 as its local AS number and AS 65531 as its peer AS number. This causes a mismatch in the BGP OPEN messages and prevents the BGP session from being established. To solve this problem, CE-1 should configure its peer AS number as 65530 under [edit protocols bgp group external] hierarchy level.

NEW QUESTION 11
Exhibit
JN0-664 dumps exhibit

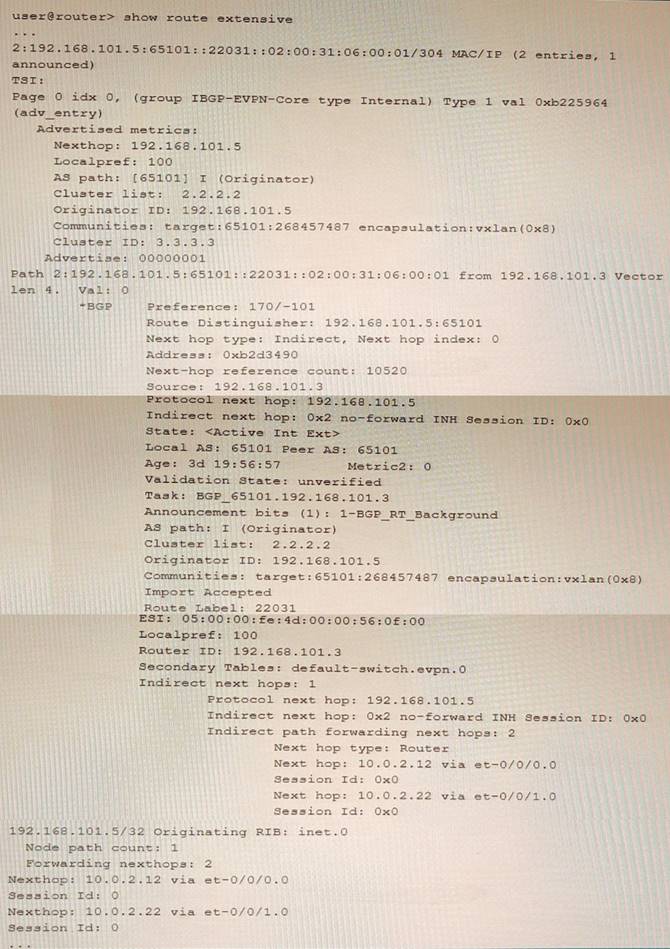

Referring to the exhibit, which two statements are true? (Choose two.)

  • A. This route is learned through EBGP
  • B. This is an EVPN Type-2 route.
  • C. The device advertising this route into EVPN is 192.168.101.5.
  • D. The devices advertising this route into EVPN are 10 0 2 12 and 10.0.2.22.

Answer: BC

Explanation:
This is an EVPN Type-2 route, also called a MAC/IP advertisement route, that is used to advertise host IP and MAC address information to other VTEPs in an EVPN network. The route type field in the EVPN NLRI has a value of 2, indicating a Type-2 route. The device advertising this route into EVPN is 192.168.101.5, which is the IP address of the VTEP that learned the host information from the local CE device. This IP address is carried in the MPLS label field of the route as part of the VXLAN encapsulation.

NEW QUESTION 12
Exhibit
JN0-664 dumps exhibit

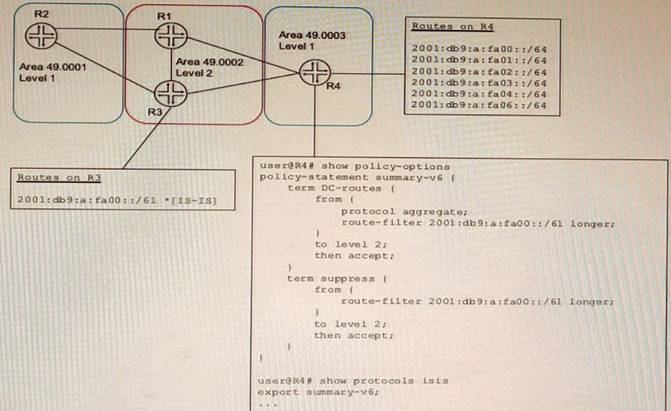

A network designer would like to create a summary route as shown in the exhibit, but the
configuration is not working.
Which three configuration changes will create a summary route? (Choose three.)

  • A. set policy-options policy-statement leak-v6 term DC-routes then reject
  • B. delete policy-options policy-statement leak-v6 term DC-routes from route-filter 2001: db9:a: fa00 : :/6l longer
  • C. set policy—options policy-statement leak-v€ term DC—routes from route-filter 2001:db9:a:faOO::/61 exact
  • D. delete protocols isis export summary-v6
  • E. set protocols isis import summary-v6

Answer: BCD

Explanation:
To create a summary route for IS-IS, you need to configure a policy statement that matches the prefixes to be summarized and sets the next-hop to discard. You also need to configure a summary-address statement under the IS-IS protocol hierarchy that references the policy statement. In this case, the policy statement leak-v6 is trying to match the prefix 2001:db9:a:fa00::/61 exactly, but this prefix is not advertised by any router in the network. Therefore, no summary route is created. To fix this, you need to delete the longer keyword from the route-filter term and change the prefix length to /61 exact. This will match any prefix that falls within the /61 range. You also need to delete the export statement under protocols isis, because this will export all routes that match the policy statement to other IS-IS routers, which is not desired for a summary route.

NEW QUESTION 13
Which origin code is preferred by BGP?

  • A. Internal
  • B. External
  • C. Incomplete
  • D. Null

Answer: C

Explanation:
BGP uses several attributes to select the best path for a destination prefix. One of these attributes is origin, which indicates how BGP learned about a route. The origin attribute can have one of three values: IGP, EGP, or Incomplete. IGP means that the route was originated by a network or aggregate statement within BGP or by redistribution from an IGP into BGP. EGP means that the route was learned from an external BGP peer (this value is obsolete since BGP version 4). Incomplete means that the route was learned by some other means, such as redistribution from a static route into BGP. BGP prefers routes with lower origin values, so Incomplete is preferred over EGP, which is preferred over IGP.

NEW QUESTION 14
Exhibit
JN0-664 dumps exhibit

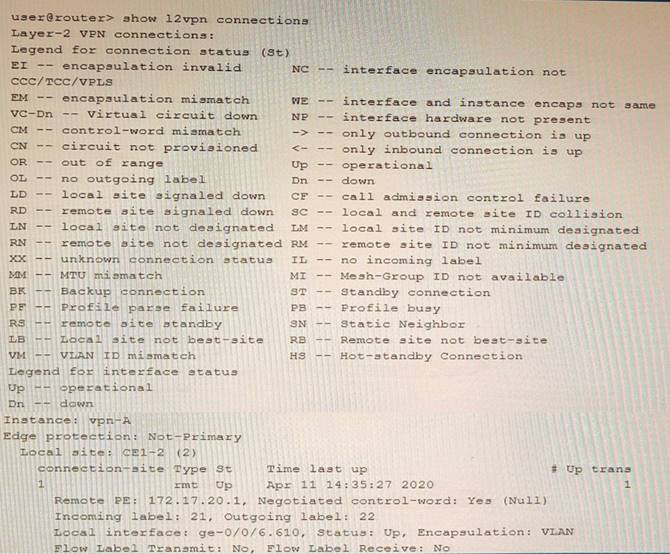

Which two statements about the output shown in the exhibit are correct? (Choose two.)

  • A. The PE is attached to a single local site.
  • B. The connection has not flapped since it was initiated.
  • C. There has been a VLAN ID mismatch.
  • D. The PE router has the capability to pop flow labels

Answer: AD

Explanation:
According to 1 and2, BGP Layer 2 VPNs use BGP to distribute endpoint provisioning information and set up pseudowires between PE devices. BGP uses the Layer 2 VPN (L2VPN) Routing Information Base (RIB) to store endpoint provisioning information, which is updated each time any Layer 2 virtual forwarding instance (VFI) is configured. The prefix and path information is stored in the L2VPN database, which allows BGP to make decisions about the best path.
In the output shown in the exhibit, we can see some information about the L2VPN RIB and the pseudowire state. Based on this information, we can infer the following statements:
✑ The PE is attached to a single local site. This is correct because the output shows only one local site ID (1) under the L2VPN RIB section. A local site ID is a unique identifier for a site within a VPLS domain. If there were multiple local sites attached to the PE, we would see multiple local site IDs with different prefixes.
✑ The connection has not flapped since it was initiated. This is correct because the output shows that the uptime of the pseudowire is equal to its total uptime (1w6d). This means that the pseudowire has been up for one week and six days without any interruption or flap.
✑ There has been a VLAN ID mismatch. This is not correct because the output shows that the remote and local VLAN IDs are both 0 under the pseudowire state section. A VLAN ID mismatch occurs when the remote and local VLAN IDs are different, which can cause traffic loss or misdelivery. If there was a VLAN ID mismatch, we would see different values for the remote and local VLAN IDs.
✑ The PE router has the capability to pop flow labels. This is correct because the output shows that the flow label pop bit is set under the pseudowire state section. The flow label pop bit indicates that the PE router can pop (remove) the MPLS flow label from the packet before forwarding it to the CE device. The flow label is an optional MPLS label that can be used for load balancing or traffic engineering purposes.

NEW QUESTION 15
In which two ways does OSPF prevent routing loops in multi-area networks? (Choose two.)

  • A. All areas are required to connect as a full mesh.
  • B. The LFA algorithm prunes all looped paths within an area.
  • C. All areas are required to connect to area 0.
  • D. The SPF algorithm prunes looped paths within an area.

Answer: CD

Explanation:
OSPF is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. OSPF prevents routing loops in multi-area networks by using two methods: area hierarchy and SPF algorithm. Area hierarchy is the concept of dividing a large OSPF network into smaller areas that are connected to a backbone area (area 0). This reduces the amount of routing information that each router has to store and process, and also limits the scope of link-state updates within each area. All areas are required to connect to area 0 either directly or through virtual links2. SPF algorithm is the method that OSPF uses to calculate the shortest path to each destination in the network based on link-state information. The SPF algorithm runs on each router and builds a shortest-path tree that represents the topology of the network from the router’s perspective. The SPF algorithm prunes looped paths within an area by choosing only one best path for each destination3.
References: 2: https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/concept/ospf-area- overview.html 3: https://www.juniper.net/documentation/us/en/software/junos/ospf/topics/concept/ospf-spf- algorithm-overview.html

NEW QUESTION 16
......
